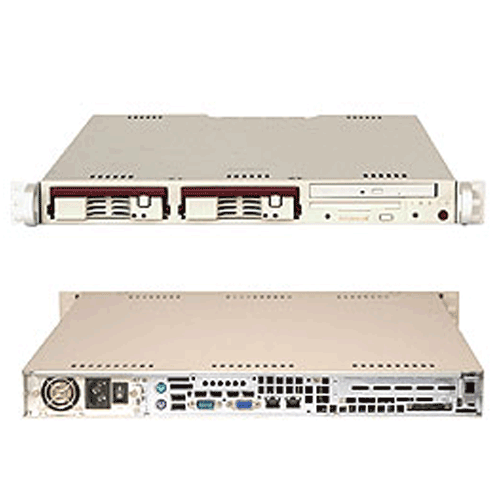

Supermicro 1U Rackmount SYS-6013A-T

More Views

  • Supermicro 1U Rackmount SYS-6013A-T

Supermicro 1U Rackmount SuperServer SYS-6013A-T

Call for price.
SKU:SYS-6013A-T

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.20 GHz
• Up to 8GB DDR 266/200 SDRAM
• 1 x 32-bit 33MHz Full-height, Full-length PCI Expansion Slot
• 1 x Gigabit Ethernet, 1x 10/100 Ethernet
• 2 x 3.5" Hot-swap Serial ATA Drive Bays
• 350W Power Supply


Details

SuperServer SYS-6013A-T / SYS-6013A-TB 1U Rackmount

Supermicro SYS-6013A-T / SYS-6013A-TB 1U Rackmount with 350W Power Supply,Intel® E7501 chipset, 2x 3.5"SATA Hot-swap drive bays, using Supermicro Super X5DPA-TGM+
Motherboard and SC811T-350 Rackmount Chassis


Product SKU
SYS-6013A-T • SuperServer 6013A-T (Beige)
SYS-6013A-TB • SuperServer 6013A-TB (Black)
Motherboard
        Super X5DPA-TGM+
Processor/Cache
CPU

• Dual mPGA604 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz
System Bus • 533MHz/400MHz system bus
System Memory
Memory Capacity • Four 184-pin DIMM sockets
• Supports up to 8 GB ECC DDR266/200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage • 2.5 V only
On-Board Devices
Chipset

• Intel® E7501 chipset
• MCH + ICH5R + P64H2
IPMI • Support for Intelligent Platform Management Interface v.1.5 (Optional)
Serial ATA • ICH5R SATA controller
• Dual Serial ATA ports
• RAID 0, 1 Supported (Windows 2000, XP, 2003; RedHat 8.0/9.0; SuSE Linux 8.1/8.2)
Network Controllers  • 1x Intel® 82541 Gigabit
• 1x Intel® 82551QM 10/100M
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Expansion Slots
  • 1x full-height, full-length 32-bit 33MHz PCI (5V) expansion slot (Riser card required)
Input/Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB • Up to 5 USB ports
Serial Ports • 2 Fast UART 16550 serial ports
Parallel Ports • Port header provided; parallel cable required for parallel port
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse • PS/2 keyboard and mouse ports
System Bios
Bios Type • 4Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection










Chassis
Form Factor • 1U Rackmount
Model • SC811T-350
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 22.6" (574mm)
Weight • 35 lbs (15.9 kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • none
Drive Bays
Hot-swap

• 2x 3.5"SATA Hot-swap drive bays
(Note: Hard drive Hot-Add is only supported through proper SATA RAID add-on card.)
Peripheral Drives
Floppy • Panasonic 3.5" 1.44MB Floppy Drive
CD-ROM  • TEAC Slim 24x CD-ROM drive
SATA Backplane
  • 1x 1U Serial ATA backplane
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  350W AC power supply w/ PFC [ 24-pin, (8-pin=12V) ]
AC Voltage • 100 - 240V, 60-50Hz, 6 Amp
DC Output • 5V + 3.3V ≤ 157W
• 12V + 5V + 3.3V ≤ 330W
+5V • 25.0 amp
+5V stand by • 2.0 Amp
+12 • 25 Amp
-12V • 0.8 Amp
+3.3V • 20 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5, ±12V, 3.3V Standby
• CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN

• Total of five 3-pin fan headers
• 2x fans with tachometer monitoring• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
