Supermicro 1U Rackmount SuperServer SYS-6012L-6B

Call for price.

SKU:SYS-6012L-6B

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.0 GHz
• Up to 8GB DDR 266/200 SDRAM
• 1 x 64-bit 133/100MHz Full-height, Full-length PCI-X Expansion Slot
• 2 x Intel® 82550 10/100 Ethernet Ports
• Zero Channel RAID Support
• 3 x 3.5" Ultra160 SCSI Hot-Swap Drive Bays
• 400W Power Supply

Description

Details

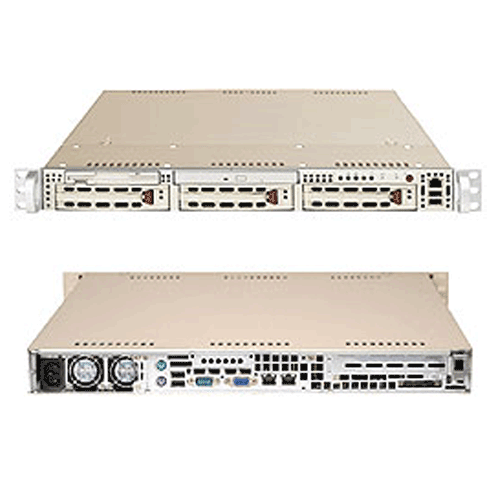

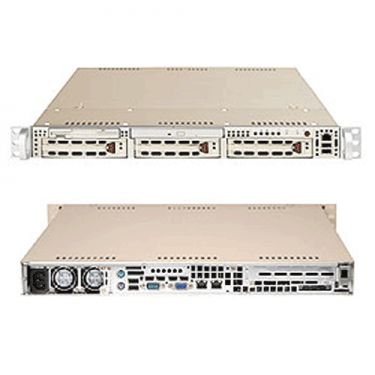

SuperServer SYS-6012L-6 / SYS-6012L-6B 1U Rackmount

Supermicro SYS-6012L-6 / SYS-6012L-6B 1U Rackmount with 400W Power Supply,Serverworks™ GC-LE Chipset, 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE, using
Supermicro Super P4DLR+ Motherboard and SC812S-400C Rackmount Chassis

Product SKU
SYS-6012L-6	• SuperServer 6012L-6 (Beige)
SYS-6012L-6B	• SuperServer 6012L-6B (Black)

Motherboard
	Super P4DLR+

Processor/Cache
CPU	• Dual mPGA603 ZIF Sockets • Supports up to two Intel® Xeon® processor(s) with 512KB of integrated Advanced Transfer Cache up to 3.0GHz
System Bus	• 400MHz system bus

System Memory
Memory Capacity	• Four 184-pin DIMM 25° sockets • Supports up to 8 GB DDR200 memory • Dual channel memory bus • Memory must be populated in pairs
Memory Type	• DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs

On-Board Devices
Chipset	• Serverworks™ GC-LE Chipset
SCSI	• Adaptec AIC-7899W Controller • Dual-Channel Ultra160 SCSI
RAID	• Support for Zero-Channel RAID w/ Adaptec 2005S ZCR Card (Card NOT included)
Network Controllers	• Dual Intel® 82550 10/100 Ethernet • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ATI Rage XL SVGA PCI video controller with 8 MB of video memory

Expansion Slots
	• 1x full-height, full-length 64-bit 133/100MHz PCI-X expansion slot (Riser card required)

Input/Output
IDE	• Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB	• Up to 4 USB ports
Serial Ports	• 2 Fast UART 16550 serial ports
Floppy	• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse	• PS/2 keyboard and mouse ports

System Bios
Bios Type	• 4Mb Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • APM 1.2 • DMI 2.1 • ACPI 1.0 • BIOS rescue hot keys • Hardware BIOS virus protection

System Bios

Bios Type

• 4Mb Flash EEPROM with AMI® BIOS

Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection

Chassis
Form Factor	• 1U Rackmount
Model	• SC812S-400C

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 16.8" (426mm)
Depth	• 25.6" (650mm)
Weight	• 35 lbs (15.9 kg)
Available Color	• Beige,Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED
Ports	• 2x USB Ports (2.0 ready) • 1x RJ45 COM Port

Drive Bays
Hot-swap	• 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE

System Cooling
Fans	• 2x 10cm blower fans

Power Supply
	400W AC power supply with PFC
AC Voltage	• 100 - 240V, 50/60Hz, 8 Amp
DC Output	• 5V + 3.3V ≤ 200W
+5V	• 30.0 Amp
+5V stand by	• 2.0 Amp
+12V	• 26.0 Amp
-12V	• 10 Amp
+3.3V	• 30 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5, ±12V, 5V Standby • CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V • Adjustable CPU clock frequency ratio settings (via BIOS)
FAN	• Total of six 3-pin fan headers • 4x fans with tachometer monitoring • Overheat backup fan connector • Status monitor with firmware/software on/off control
Temperature	• Monitoring for CPU, chassis, environment • CPU thermal trip support
LED	• CPU Overheat LED • System Overheat LED • Suspend-state indicator LED
Other Features	• Chassis intrusion detection (through LDCM) • Chassis intrusion header • Chipkill support
