Supermicro 1U Rackmount SYS-6012L-6

More Views

  • Supermicro 1U Rackmount SYS-6012L-6

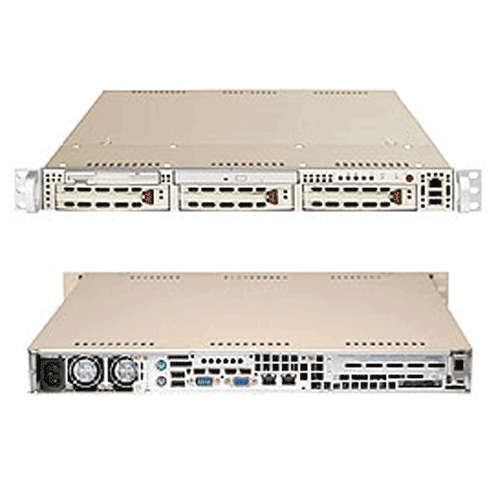

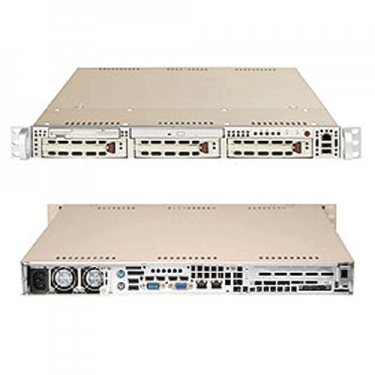

Supermicro 1U Rackmount SuperServer SYS-6012L-6

Call for price.
SKU:SYS-6012L-6

Quick Overview:

Key Features:
• Dual Intel® Xeon® Support up to 3.0 GHz
• Up to 8GB DDR 266/200 SDRAM
• 1 x 64-bit 133/100MHz Full-height, Full-length PCI-X Expansion Slot
• 2 x Intel® 82550 10/100 Ethernet Ports
• Zero Channel RAID Support
• 3 x 3.5" Ultra160 SCSI Hot-Swap Drive Bays
• 400W Power Supply


Details

SuperServer SYS-6012L-6 / SYS-6012L-6B 1U Rackmount

Supermicro SYS-6012L-6 / SYS-6012L-6B 1U Rackmount with 400W Power Supply,Serverworks™ GC-LE Chipset, 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE, using
Supermicro Super P4DLR+ Motherboard and SC812S-400C Rackmount Chassis


Product SKU
SYS-6012L-6 • SuperServer 6012L-6 (Beige)
SYS-6012L-6B • SuperServer 6012L-6B (Black)
Motherboard
        Super P4DLR+
Processor/Cache
CPU

• Dual mPGA603 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 512KB of integrated Advanced Transfer Cache up to 3.0GHz
System Bus • 400MHz system bus
System Memory
Memory Capacity • Four 184-pin DIMM 25° sockets
• Supports up to 8 GB DDR200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory Type • DDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
On-Board Devices
Chipset

• Serverworks™ GC-LE Chipset
SCSI • Adaptec AIC-7899W Controller
• Dual-Channel Ultra160 SCSI
RAID • Support for Zero-Channel RAID w/ Adaptec 2005S ZCR Card (Card NOT included)
Network Controllers  • Dual Intel® 82550 10/100 Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Expansion Slots
  • 1x full-height, full-length 64-bit 133/100MHz PCI-X expansion slot (Riser card required)
Input/Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB • Up to 4 USB ports
Serial Ports • 2 Fast UART 16550 serial ports
Floppy

• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / Mouse • PS/2 keyboard and mouse ports
System Bios
Bios Type • 4Mb Flash EEPROM with AMI® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• APM 1.2
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection








Chassis
Form Factor • 1U Rackmount
Model • SC812S-400C
Dimension and Weight
Height • 1.7" (43mm)
Width • 16.8" (426mm)
Depth • 25.6" (650mm)
Weight • 35 lbs (15.9 kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • 2x USB Ports (2.0 ready)
• 1x RJ45 COM Port
Drive Bays
Hot-swap

• 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays w/ SAF-TE
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  400W AC power supply with PFC
AC Voltage • 100 - 240V, 50/60Hz, 8 Amp
DC Output • 5V + 3.3V ≤ 200W
+5V • 30.0 Amp
+5V stand by • 2.0 Amp
+12V • 26.0 Amp
-12V • 10 Amp
+3.3V • 30 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5, ±12V, 5V Standby
• CPU Core 3-Phase-switching voltage regulator w/ auto-sense from 1.4V-3.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN

• Total of six 3-pin fan headers
• 4x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED • CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features

• Chassis intrusion detection (through LDCM)
• Chassis intrusion header
• Chipkill support
