Supermicro 1u Rackmount SuperServer SYS-5019S-WR

Call for price.

SKU:SYS-5019S-WR

Quick Overview:

Key Features:
• Mainstream, WIO
• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5,
Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
• Intel® C236 chipset
• 4x 3.5" hot-swap drive bays
• Up to 64GB ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
• 2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (x8) AOC slot
• 2x GbE ports with Intel® i210-AT, 1x dedicated IPMI port
• I/O ports: 1x VGA, 1x COM, 2x USB 2.0, USB 3.0
• 500W Redundant Platinum Level power supplies

Description

Details

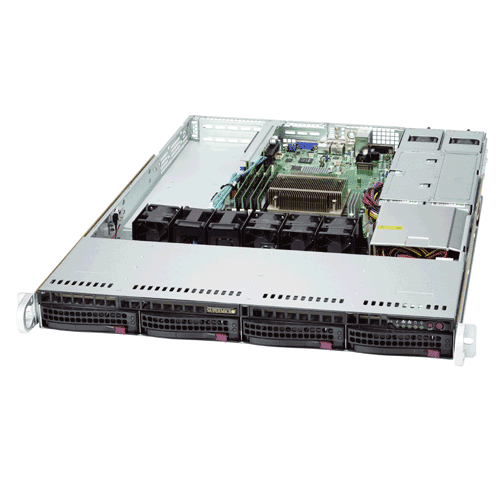

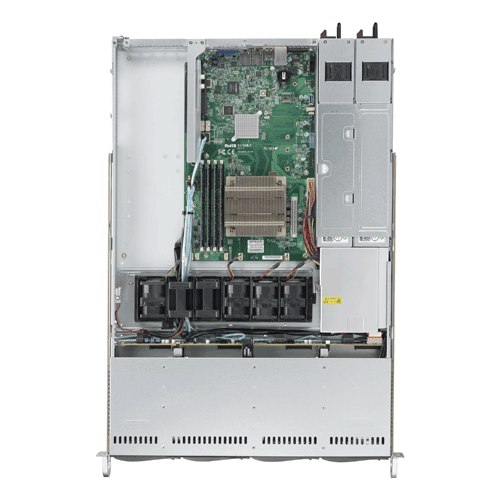

SuperServer SYS-5019S-WR 1U Rackmount

Supermicro SYS-5019S-WR 1U Rackmount with 500W Platinum Level Power Supply, 4x 3.5" Hot-swap SATA3 drive bays, using Super X11SSW-F Motherboard and
CSE-815TQC-R504WB Rackmount Chassis

Product SKU
SYS-5019S-WR	• SuperServer 5019S-WR (Black)

Motherboard
	Super X11SSW-F

Processor/Cache
CPU	• Single Socket H4 (LGA 1151) supports: • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors • CPU TDP up to 80W

System Memory
Memory Capacity	• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 ECC UDIMM
Memory Type	• 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C236 chipset
SATA	• SATA3 (6Gbps) via C236 controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Dual Intel® I210-AT Gigabit Ethernet LAN ports • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	• ASPEED AST2400 BMC

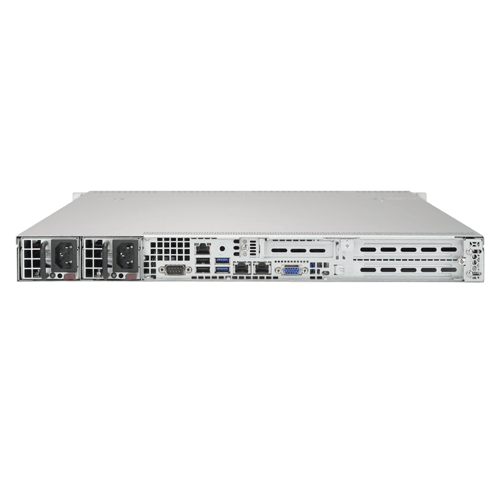

Input/Output
SATA	• 4x SATA3 (6Gbps) ports
LAN	• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear) • 2x USB 2.0 ports (rear)
Video	• 1x VGA port
Serial Port / Header	• 1x COM ports (1 rear)
SuperDOM	• 2x SuperDOM (Disk on Module) ports with built-in power

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-815TQC-R504WB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Weight	• 35 lbs (15.9 kg)
Available Color	• Black

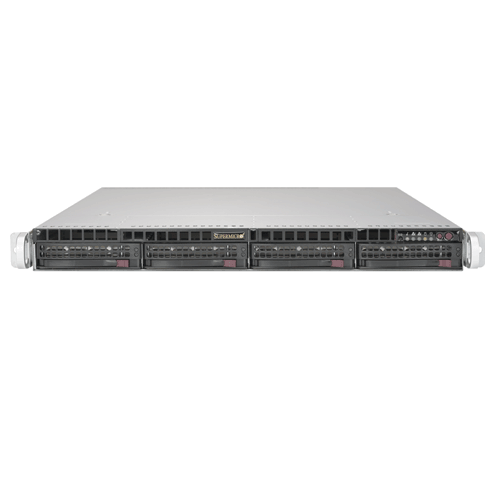

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status)

Expansion Slots
PCI-E	• 2x PCI-E 3.0 x8 AOC slots • 1x PCI-E 3.0 x4 (in x8) AOC slot • 1x M.2 connector

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap SATA3 drive bays

Backplane
	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 4x 4cm chassis internal fans

Power Supply with Power Distributor
	500W high-efficiency (94+%) power supply w/ PMBus
With Power Distributor	• +5V: 25 Amp • +3.3V: 12 Amp • -12V: 0.6 Amp
Certification	• Platinum Level Certified

System Bios
Bios Type	• 8MB SPI Flash EEPROM with AMI BIOS
Bios Features	• DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 40°C (50°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
