Supermicro 1U Rackmount SuperServer SYS-5019S-MT

Call for price.

SKU:SYS-5019S-MT

Quick Overview:

Key Features:
• Storage HN, VM, Hosting
• Mainstream, Small file server
• Entry Caching Appliance
• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200
v5, Intel® 6th Gen. Core™ i3 series
• Intel® C236 chipset
• 4x 3.5" Hot-swap SATA3 bays w/ RAID
• Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
• 1 PCI-E 3.0 x8 AOC slot
• 2x 10GBase-T ports with Intel® X550
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• I/O ports: 1x VGA, 2x COM, 2x USB 3.0 (front/rear), USB 2.0
• 350W High-efficiency Power Supply Platinum Level Certified

Description

Details

SuperServerSYS-5019S-MT 1U Rackmount

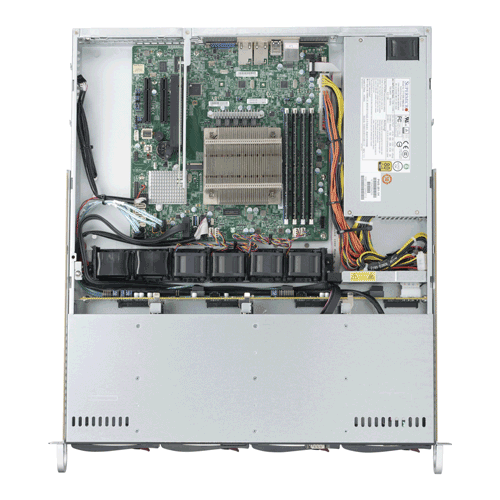

Supermicro SYS-5019S-MT 1U Rackmount with 350W Platinum Level Power Supply, 4x 3.5" Hot-swap SATA3 drive bays, using Super X11SSH-TF Motherboard and
CSE-813MFTQC-350CB Rackmount Chassis

Product SKU
SYS-5019S-MT	• SuperServer 5019S-MT (Black)

Motherboard
	Super X11SSH-TF

Processor/Cache
CPU	• Single Socket H4 (LGA 1151) supports: • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3 • CPU TDP up to 80W

System Memory
Memory Capacity	• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 ECC UDIMM
Memory Type	• 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	• 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C236 chipset
SATA	• SATA3 (6Gbps) via C236 controller • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC
Network Controllers	• Dual Intel® X550 10GBase-T LAN ports • Virtual Machine Device Queues reduce I/O overhead • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video	• ASPEED AST2400 BMC

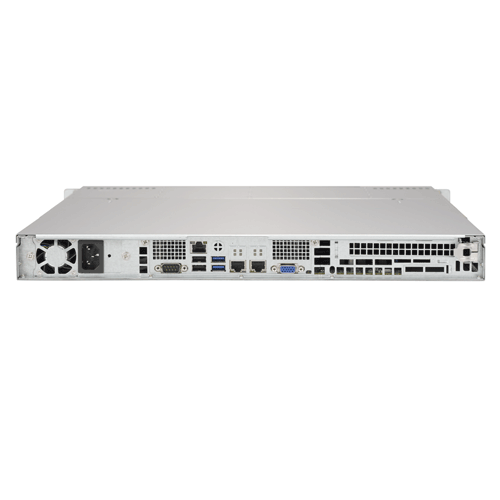

Input/Output
SATA	• 4x SATA3 (6Gbps) ports
LAN	• 2x RJ45 10GBase-T LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (front/rear) • 2x USB 2.0 ports
Video	• 1x VGA port
Serial Port / Header	• 2x COM ports (1 rear, 1 header)
SuperDOM	• 2x SuperDOM (Disk on Module) ports with built-in power

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-813MFTQC-350CB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 19.8" (503mm)
Weight	• 30.4 lbs (13.8 kg)
Available Color	• Black

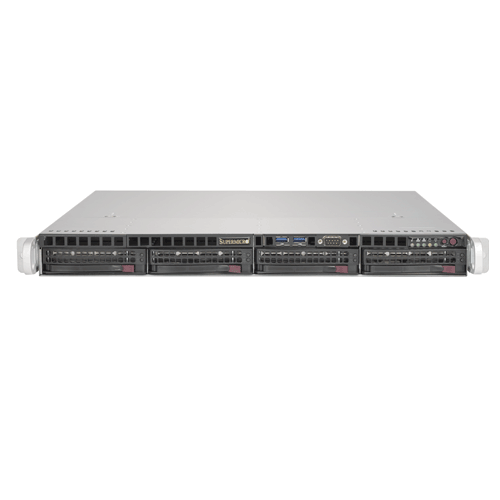

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Expansion Slots
PCI-E	• 1x PCI-E 3.0 x8 AOC slot

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap SATA3 drive bays

Peripheral Drives
Optional	• 2x 2.5" Fixed drives internal

Backplane
	• SAS3/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 4x 40x28mm 4-pin PWM Cooling Fans

Power Supply
	350W AC power supply w/ PFC
AC Voltage	• 100-240 V, 50-60 Hz, 4.2-1.8 Am
+5V	• Max.: 15 Amp • Min.: 0.2 Amp
+5V standby	• Max.: 3 Amp • Min.: 0 Amp
+12V	• Max.: 29 Amp • Min.: 0.5 Amp
-12V	• Max.: 0.2 Amp • Min.: 0 Amp
+3.3V	• Max.: 12 Amp • Min.: 0.2 Amp
Certification	• Platinum Level Certified

System Bios
Bios Type	• 8MB SPI Flash EEPROM with AMI BIOS
Bios Features	• DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 40°C (50°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
