Details
Product SKU |
|
|---|---|

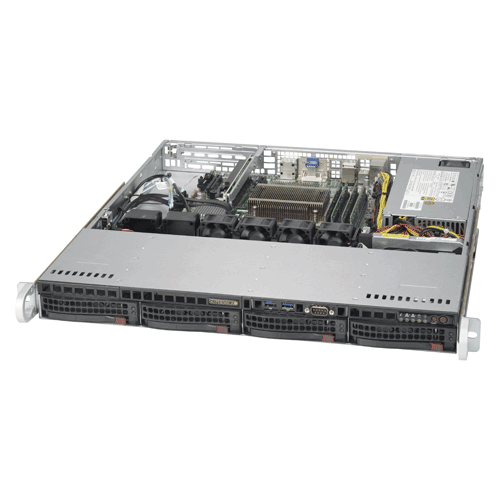

| SYS-5019S-M2 | • SuperServer 5019S-M2 (Black) |
Motherboard |
|
|---|---|
| Super X11SSZ-F | |
Processor/Cache |
|
|---|---|
| CPU | • Single Socket H4 (LGA 1151) supports: • Intel® Xeon® processor E3-1200 v5, • Intel® 6th Gen Core™ i7/i5/i3, • Intel® Pentium®, • Intel® Celeron® processors • CPU TDP up to 80W |
System Memory |
|
|---|---|
| Memory Capacity |
• 4x 288-pin DDR4 DIMM slots • Up to 64GB DDR4 Non-ECC UDIMM |
| Memory Type | • 2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | • 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C236 chipset |
| SATA | • 4x SATA3 (6Gbps) via Intel® C236 controller • RAID 0, 1, 5, 10 support |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC |
| Network Connectivity | • Intel® PHY i219LM + Intel® i210AT Gigabit Ethernet LAN Controllers |
| Audio | • RealTek ALC 888S High Definition Audio |
| Video | • ASPEED AST2400 BMC |

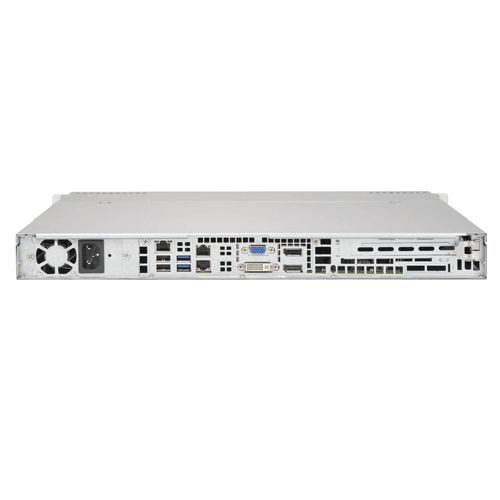

Input/Output |
|
|---|---|
| SATA | • 4x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 2x USB 3.0 ports (2 rear) • 3x USB 2.0 ports (2 rear + 1 Type A) |
| Audio | • Front panel header |
| Video/Display | • 2x DP (Display Port), 1x DVI-I from Intel® HD Graphics, 1x VGA from AST2400 |
| Serial Port/Header | • 2x serial headers |
| Super DOM | • 1x SuperDOM (Disk on Module) ports with built-in power |
PC Health Monitoring |
|
|---|---|
| Voltage | • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| Fan |
• Total of 5 fan headers supporting up to 5 fans • 4 fans with tachometer status monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion detection |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-813MFTQC-350CB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 23.4" (594mm) |
| Gross Weight | • 30.4 lbs (13.8 kg) |
| Available Color | • Black |

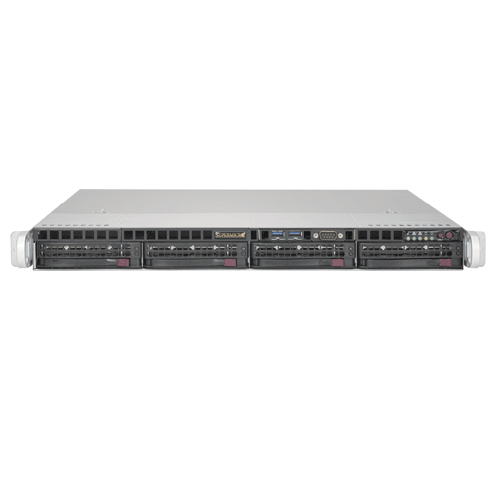

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1x PCI-E 3.0 x16 FH, FL slot |
Drive Bays |
|
|---|---|
| Hot Swap | • 4x 3.5" Hot-swap SATA3 drive bays |
Backplane |
|
|---|---|
|
• SAS/SATA HDD Backplane (SAS support requires optional SAS controller) |
|
System Cooling |
|
|---|---|
| Fans |
• 4x 4cm internal fans |
Power Supply |
|
|---|---|
| 350W AC power supply w/ PFCC | |
| AC Voltage | • 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V | • Max.: 15 Amp • Min.: 0.2 Amp |
| +5V standby | • Max.: 3 Amp • Min.: 0 Amp |
| +12V | • Max.: 29 Amp • Min.: 0.5 Amp |
| -12V | • Max.: 0.2 Amp • Min.: 0 Amp |
| +3.3V | • Max.: 12 Amp • Min.: 0.2 Amp |
| Certification | • Platinum Level Certified |
System Bios |
|
|---|---|
| Bios Type | • 8MB SPI Flash EEPROM with AMI BIOS |
| Bios Features | • DMI 2.3 • PCI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
Operating Environment/Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
