Details
X10SLL-F Server Motherboard and 1U Rackmount Chassis.
Product SKU |
|
|---|---|
| SYS-5018D-MF | • SuperServer 5018D-MF (Black) |
Motherboard |
|
|---|---|
| Super X10SLL-F | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor E3-1200 v3/v4 family, 4th Gen Core i3, Pentium, Celeron processors • Socket H3 (LGA 1150) |
System Memory |
|
|---|---|
| Memory Capacity |
• 4x 240-pin DDR3 DIMM slots • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM) |
| Memory Type | • 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.5 V, 1.35 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C222 Express PCH |
| SATA | • SATA3 (6Gbps) w/ RAID 0, 1 • SATA2 (3Gbps) w/ RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2400 BMC with 10/100/1000Mbps |
| Network Connectivity | • Intel® i217LM + Intel® i210AT Controllers |
| VGA | • ASPEED AST2400 BMC |
Input/Output |
|
|---|---|
| Serial ATA | • 2x SATA3 (6Gbps) ports |
| LAN |
• 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 6x USB 2.0 ports (4 rear, 2 via header) • 2x USB 3.0 ports (1 Type-A, 1 via header) |
| VGA | • 1x VGA port |
| Serial Port/Header | • 1x Fast UART 16550 serial port |
PC Health Monitoring |
|
|---|---|
| Voltage | • Monitors for CPU Cores, +12V, +3.3V, +5V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V |
| FAN | • Total of five 4-pin fan headers supporting up to 5 fans |
| Temperature | • Monitoring for CPU and chassis environment |
| LED | • CPU / System Overheat LED |
| Other Feature |
• Chassis intrusion detection |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-512F-350B |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 14.5" (369mm) |
| Gross Weight | • 16.2 lbs (7.4 kg) |
| Available Colors | • Black |

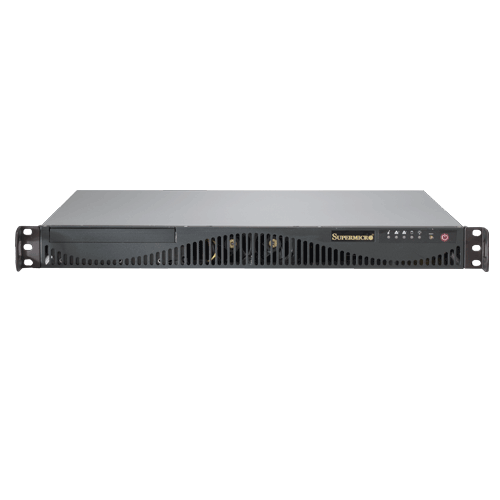

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express |
• 1x PCI-E 3.0 x8 (in x16) Full-height slot |
Drive Bays |
|
|---|---|
| Internal | • 2x 3.5" internal SATA3/2 HDD bays w/ RAID (2.5" optional) |
Peripheral Drives |
|
|---|---|
| DVD-ROM | • Slim DVD-ROM Drive (optional) |
System Cooling |
|
|---|---|
| Fans | • 2x 4cm 4-pin PWM Fans |
Power Supply |
|
|---|---|
| 350W AC power supply w/ PFC | |
| AC Voltage | • 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V | • 18 Amp |
| +5V standby | • 3 Amp |
| +12V | • 29 Amp |
| +3.3V | • 15 Amp |
| Certification | • Gold Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash EEPROM with AMI BIOS |
| Bios Features | • DMI 2.3 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 |
Management |
|
|---|---|
| Software |
• IPMI (Intelligent Platform Management Interface) v2.0 with KVM support • SuperDoctor® III • Watch Dog • NMI |
| Power Configuration | • ACPI / ACPM Power Management • Main Switch Override Mechanism • Power-on mode for AC power recovery • Internal/External modem ring-on |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. |
• Operating Temperature:
10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) |
