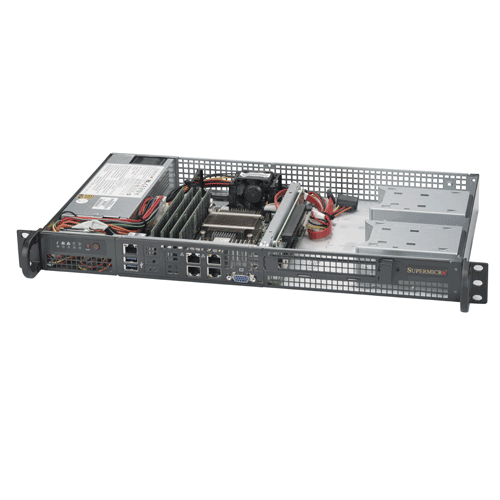

  • Supermicro 1U Rackmount SuperServer SYS-5018D-FN4T - Angle

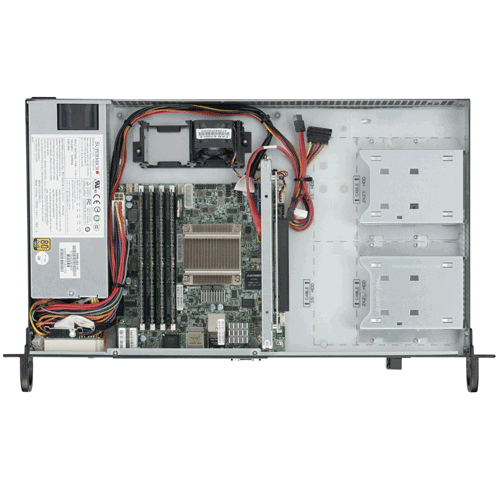

  • Supermicro 1U Rackmount SuperServer SYS-5018D-FN4T - Top

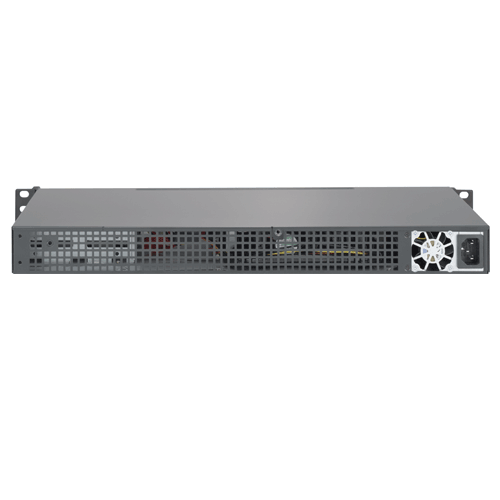

  • Supermicro 1U Rackmount SuperServer SYS-5018D-FN4T - Front

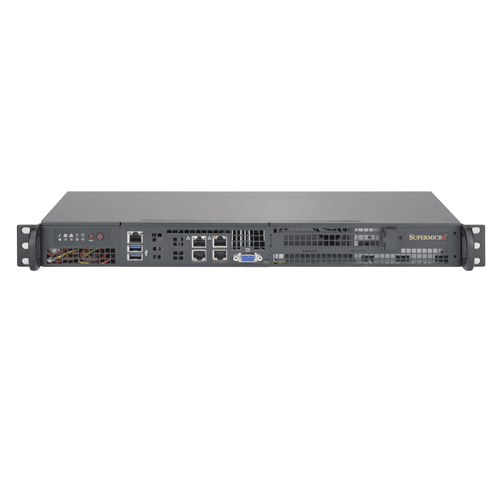

  • Supermicro 1U Rackmount SuperServer SYS-5018D-FN4T - Rear

Supermicro 1U Rackmount SuperServer SYS-5018D-FN4T

Call for price.
SKU:SYS-5018D-FN4T

Quick Overview:

Key Features:
• Front I/O
• Space-efficient, compact design
• Less than 10" depth
• Best Performance per Watt
• Fast to build and deploy
• Intel® Xeon® processor D-1541, Single socket FCBGA 1667; 8-Core, 45W
• 2x 3.5" or 4x 2.5" SATA3 drive bays; 3.5" peripheral bay, 2.5" optional
• 1x PCI-E 3.0 x16, 1x M.2 PCI-E 3.0 x4, M Key 2242/2280slot
• Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
• Dual 10GbE LAN and Intel® i350-AM2 dual port GbE LAN
• DOM power connector
• 200W Low-noise power supply w/ PFC


Details

SuperServer SYS-5018D-FN4T

Supermicro 5018D-FN4T Xeon D-1540 200W 128GB RDIMM or 64GB UDIMM DDR4 2x 3.5" or 4x 2.5" SATA3 1U Rackmount Server Barebone

Product SKU
SYS-5018D-FN4T • SuperServer 5018D-FN4T (Black)
Motherboard
        Super X10SDV-8C-TLN4F
Processor/Cache
CPU • Intel® Xeon® processor D-1541
• FCBGA 1667 supported
• CPU TDP support 45W
• System-on-Chip
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type • 2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes • 32GB, 16GB, 8GB, 4GB
Memory Voltage • 1.2 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SoC controller for SATA3 (6Gbps) ports
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Connectivity

• Dual LAN via Intel® i350-AM2 Gigabit Ethernet
• Dual LAN via SoC 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics • BMC integrated ASPEED AST2400
Input/Output
SATA • 6x SATA3 (6Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 2x RJ45 10GBase-T ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB 3.0 ports (rear)
Serial Port

• 1x COM port (header)
DOM

• 1x SATA DOM (Disk on Module) power connector
VGA

• 1x VGA Port
Others

• TPM 1.2 header
Chassis
Form Factor • 1U Rackmount
Model • CSE-505-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slots
PCI-Express

• 1x PCI-E 3.0 x16 slot slot
• 1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Drive Bays
Hot Swap • 2x 3.5" or 4x 2.5" internal SATA3 hard drive bays (optional) *
System Cooling
Fans

• Passive Heatsink, 40mm chassis fan
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System Bios
Bios Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features • Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.7.1
• UEFI
• RTC (Real Time Clock) Wakeup
Operating Environment/Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
