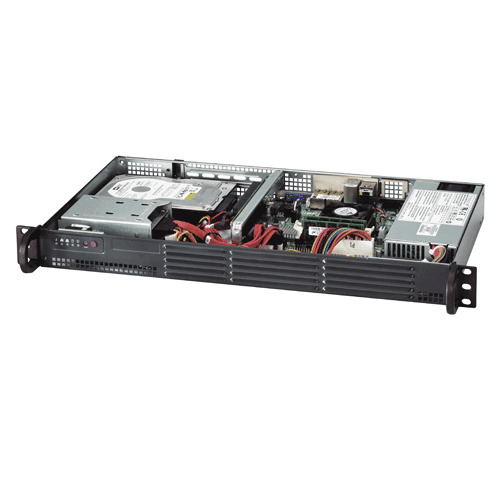

  • Supermicro 1U Rackmount SuperServer SYS-5017P-TF - Angle

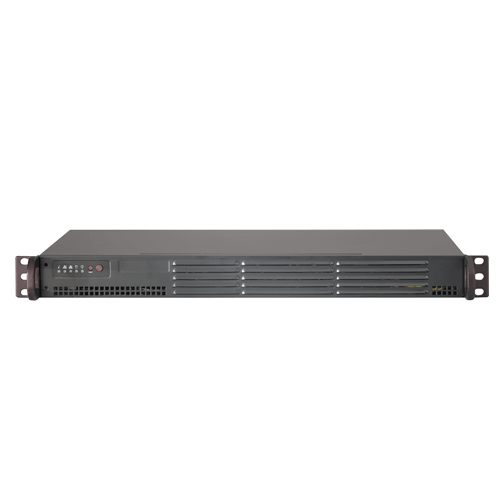

  • Supermicro 1U Rackmount SuperServer SYS-5017P-TF - Front

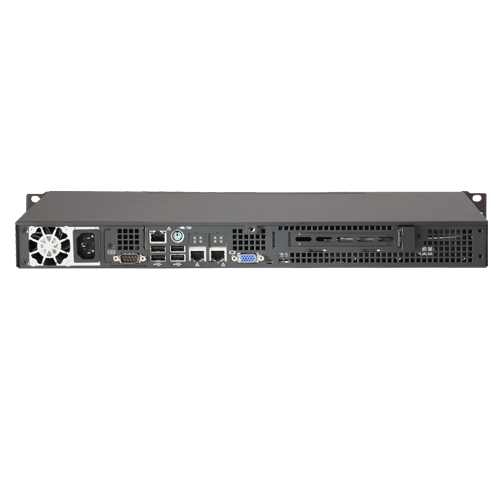

  • Supermicro 1U Rackmount SuperServer SYS-5017P-TF - Rear

Supermicro 1U Rackmount SuperServer SYS-5017P-TF

Call for price.
SKU:SYS-5017P-TF

Quick Overview:

Key Features:
• Embedded 3rd Generation Intel® Core i5-3610ME, 2.7GHz, 2C/4T Mobile ECC processor
• Intel® QM77 Chipset
• 2x 3.5" or 4x 2.5" internal SATA2 * Hard drive bays (optional)
• 1x PCI-E 3.0 x16 slot**
• Up to 16GB ECC DDR3 1066/1333MHz on 2x SO-DIMMs
• Intel® 82574L; 2x GbE LAN ports
• IPMI 2.0 on Dedicated LAN port
• 200W low-noise power supply w/ PFC
• Disk-on-module (DOM) power connector


Details

SuperServer SYS-5017P-TF

Supermicro SYS-5017P-TF 1U Rackmount SuperServer Barebone

Product SKU
SYS-5017P-TF • SuperServer 5017P-TF (Black)
Motherboard
        Super X9SPV-F-3610ME
Processor/Cache
CPU • 3rd Generation Intel® Core i5 Mobile ECC processor (i5-3610ME, 2.7GHz, 2C/4T, BGA-1023)
System Memory
Memory Capacity • 2x 204-pin DDR3 SODIMM slots
• Supports up to 16 GB DDR3 ECC memory
Memory Type • 1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 8GB, 4GB, 2GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® QM77 Chipset
SATA • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
• SATA 3.0 6Gbps with RAID 0, 1
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Connectivity

• Intel® 82574L Gigabit Ethernet controllers 4x Gigabit LAN ports
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics • Intel Integrated Graphics HD 4000 or Matrox G200eW to VGA via BIOS setup
Input/Output
SATA

• 2x SATA 3.0 ports (6Gbps)
• 4x SATA 2.0 ports (3Gbps)
LAN • 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 4x USB 3.0 ports (via header)
• 6x USB 2.0 ports (4 rear, 2 via header)
VGA • 1x VGA port
Serial Port/Header

• 2 COM ports (1 rear, 1 header)
Chassis
Form Factor • 1U Rackmount
Model • CSE-504-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Available Colors • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)D
Expansion Slots
PCI-Express

• 1x PCI-E 3.0 x16 slot**
Drive Bays
HDD • 2x 3.5" or 4x 2.5" internal SATA2 hard drive bays (optional) *
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System Bios
Bios Type • 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features • DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
Regulatory (System) • USA - UL, FCC
• Canada - cUL, ICES-003 (FCC)
• Japan - VCCI
• Europe - CE, CB
• AUS/NZ - C-tick
