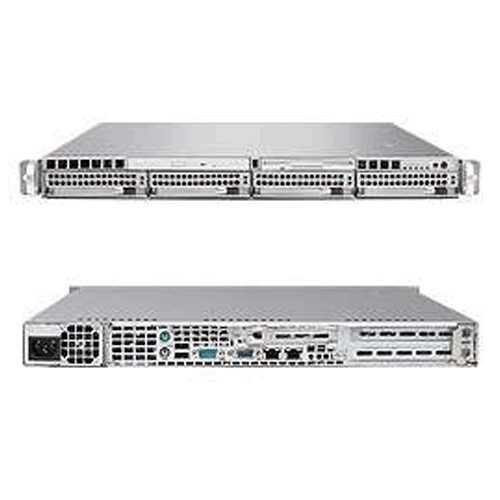

Supermicro SYS-5015M-UV / SYS-5015M-UB 1U Rackmount with Intel 3010 (Mukilteo-2P) chipset, 4x 3.5" Hot-swap drive bays, using Super PDSMU and SC815TQ-560UV Rackmount
Chassis
Product SKU |
|
|---|---|
| SYS-5015M-UV | • SuperServer 5015M-UV (Silver) |
| SYS-5015M-UB | • SuperServer 5015M-UB (Black) |
Motherboard |
|
|---|---|
| Super PDSMU | |
Processor/Cache |
|
|---|---|
| CPU | • Single LGA775 ZIF Socket |
| System Bus | • 1066 / 800 / 533 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Single / Dual Channel) |
| Memory Type | • DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2 GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel 3010 (Mukilteo-2P) chipset |
| Serial ATA | • Intel® ICH7R SATA controller built-in (3 Gbps) • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO+) • NOTE: Must use Dedicated LAN for IPMI function |
| Network Controllers | • 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output |
| VGA | • On-board ATI ES1000 (16MB) graphics |
| Super I/O | • Winbond 83627HG chip |
| Clock Generator | • CK410 |
Expansion Slots |
|
|---|---|
| Left Slots |
• 1 (x8) PCI-Express Slot (via Riser Card) • 1 Universal I/O (UIO) Slot (via Riser Card) |
| Right Slot | 1 (x4) PCI-Express (in x8) Slot (via Riser Card) |
Input/Output |
|
|---|---|
| Serial ATA | • Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported |
| IDE | • One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN ports |
| USB | • Up to 6x USB 2.0 / 1.1 compliant ports • 2 rear ports • 2 internal header for 4 USB 2.0/1.1 ports |
| VGA | • 1x VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1x Fast UART 16550 serial port |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC815TQ-560UV |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 42 lbs (19.1 kg) |
| Available Color | • Silver,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • UID LED |
| Ports | • 2x USB & DB9 COM port tray • (Optional - in place of floppy drive) |
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap drive bays |
System Cooling |
|
|---|---|
| Fans | • 4x Counter-rotating Fans |
Power Supply |
|
|---|---|
| 560W AC power supply w/ PFC (20-pin) | |
| AC Voltage | • 100 - 240V, 50 - 60Hz, 8.5 - 4Amp |
| +5V | • 25 Amp |
| +5V stand by | • 3 Amp |
| +12V | • 43.6 Amp |
| -12V | • 0.6 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores (+1.5V, +1.8V, +3.3V, +5, ±12V, +5V Standby, VBAT) • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V |
| FAN | • Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (with speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support • PECI |
| LED | • CPU / System Overheat LED • Standby alert LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix BIOS® |
| Bios Features. | • Plug and Play (PnP)
|
