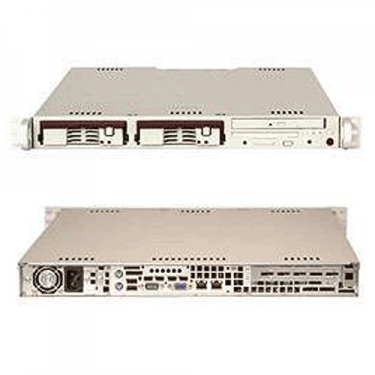

Supermicro SYS-5015M-T+ / SYS-5015M-T+B 1U Rackmount with Intel 3000 (Mukilteo-2) chipset, 2x 3.5"SATA Hot-swap drive bays, using Super PDSMi+ and SC811T-300 Rackmount
Chassis
Product SKU |
|
|---|---|
| SYS-5015M-T+ | • SuperServer 5015M-T+B(Beige) |
| SYS-5015M-T+B | • SuperServer 5015M-T+B (Black) |
Motherboard |
|
|---|---|
| Super PDSMi+ | |
Processor/Cache |
|
|---|---|
| CPU | • Single LGA775 ZIF Socket |
| System Bus | • 1066 / 800 / 533 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Single / Dual Channel) |
| Memory Type | • DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2 GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel 3000 (Mukilteo-2) chipset |
| Serial ATA | • Intel® ICH7R SATA controller built-in • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux) |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • (Optional: AOC-IPMI20-E) |
| Network Controllers | • 1x Intel® 82573V Gigabit PCI-Express Ethernet • 1x Intel® 82573L Gigabit PCI-Express Ethernet • Supports 10Base-T, 100Base-TX, 1000BASE-T, RJ45 output |
| VGA | • On-board ATI ES1000 (16MB) graphics |
| Super I/O | • Winbond 83627HG chip |
| Clock Generator | • CK410 |
Expansion Slots |
|
|---|---|
| Universal Slot |
• 1x 64-bit PCI-X 133MHz Slot (via Riser Card) Or • 1 (x8) PCI-Express Slot (via Riser Card) - Optional |
Input/Output |
|
|---|---|
| Serial ATA | • Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported |
| IDE | • One EIDE channel supports up to two UDMA IDE devices • IDE Master / Slave 2 ports • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 • White Connector for Compact Flash (CF, 40-pin IDE connector) card only |
| LAN | • 2x RJ45 LAN ports |
| USB | • Up to 6x USB 2.0 / 1.1 compliant ports • 4x Internal USB headers • 2x Rear USB ports |
| VGA | • 1x VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port | • 1x Fast UART 16550 serial port |
| Parallel Port | • 1x ECP / EEP Parallel Header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC811T-300 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (426mm) |
| Depth | • 22.6" (574mm) |
| Weight | • 35 lbs (15.9kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
| Ports | • none |
Drive Bays |
|
|---|---|
| Hot-swap | • 2x 3.5"SATA Hot-swap drive bays |
System Cooling |
|
|---|---|
| Fans | • 3x 3-pin Counter-rotatign Cooling Fans |
Power Supply |
|
|---|---|
| Fixed 300W AC power supply module with PFC [ 24-pin, (4-pin=12V), 4-pin HDD ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 5 Amp |
| DC Output | • 5V + 3.3V ≤ 100W |
| +5V | • 25 Amp |
| +5V stand by | • 2.0 Amp |
| +12V | • 24.0 Amp (Max) |
| -12V | • 1.0 |
| +3.3V | • 15.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT) • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V • Adjustable CPU clock frequency ratio |
| FAN | • Fan Speed Control • Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware speed control • Low noise fan speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support |
| LED | • CPU / System Overheat LED • +5V Standby Alert LED • Suspend-state indicator LED |
| Other Features | • Chassis intrusion detection • Chassis intrusion header |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix BIOS® |
| Bios Features. | • Plug and Play (PnP)
|
