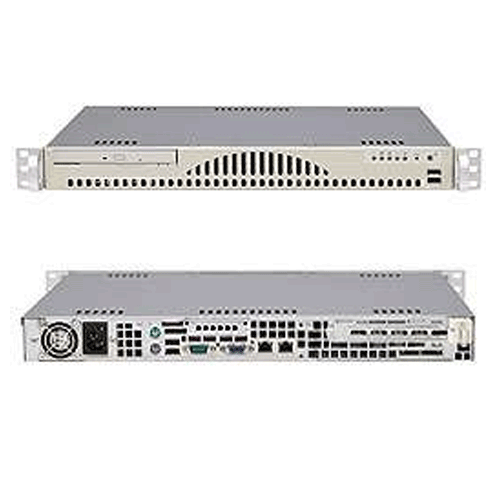

Supermicro SYS-5015M-MR / SYS-5015M-MRB 1U Rackmount with Intel E7230 (Mukilteo) Smithfield chipset, 1x 3.5" internal SATA drive bay, using
Super PDSMi and
SC512F-260B (For SuperServer Only)
Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-5015M-MR | • SuperServer 5015M-MR (Black) |
| SYS-5015M-MRB | • SuperServer 5015M-MRB (Black) |
Motherboard |
|
|---|---|
| Super PDSMi | |
Processor/Cache |
|
|---|---|
| CPU | • Single LGA775 ZIF Socket |
| System Bus | • 1066 / 800 / 533 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Four 240-pin DIMM sockets • Supports up to 8 GB of unbuffered, ECC DDR2 667/533MHz memory (Dual Channel) |
| Memory Type | • DDR2 667/533MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel E7230 (Mukilteo) Smithfield chipset • ICH7R + PXH-V + Intel® 82573V |
| Serial ATA | • Intel® ICH7R SATA controller built-in • RAID 0, 1, 5, 10 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • (Optional: AOC-IPMI20-E) |
| Network Controllers | • Dual-port Intel® 82573V Gigabit PCI-Express Ethernet (Tekoa) • Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output |
| VGA | • On-board ATI RageXL graphics, 8MB |
| Super I/O | • Winbond 83627EHF chip |
| Clock Generator | • CK410 |
Expansion Slot |
|
|---|---|
| PCI-Express / PCI-X |
• 1x Universal (SXB-E) Slot for Riser (x1)
[ 1x 64-bit PCI-X 133MHz Slot ] OR [ 1 (x8) PCI-Express Slot ] (Optional) |
Input/Output |
|
|---|---|
| Serial ATA | • Four Serial ATA ports (3 Gbps performance) • Four SATA hard drives supported |
| IDE | • One EIDE channel supports up to two UDMA IDE devices • IDE Master / Slave 2 ports • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 • White Connector for Compact Flash (CF) card only |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN ports |
| USB | • USB 2.0 compliant / 1.1 compatible • 2x front USB ports • 2x rear ports |
| VGA | • 1x VGA Port |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1x Fast UART 16550 serial port |
| Parallel Port | • 1x ECP / EEP Parallel Header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC512F-260B (For Super Server Only) |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (426mm) |
| Depth | • 14" (356mm) |
| Weight | • 17 lbs (7.7kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
| Ports | • 2x USB Ports (2.0 Ready) |
Drive Bays |
|
|---|---|
| Internal Bay | • 1x 3.5" internal SATA drive bay |
Peripheral Drives |
|
|---|---|
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
System Cooling |
|
|---|---|
| Fans | • 2x 16cm 3-pin Nidec Counter-rotating Fans |
Power Supply |
|
|---|---|
| Thermal control 260W AC power supply with PFC [ 24-pin, (4-pin=12V) ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 5-3 Amp |
| DC Output | • 5V + 3.3V ≤ 140W |
| +5V | • 25.0 amp |
| +5V stand by | • 2.0 amp |
| +12V | • 18.0 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 15.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores (+1.8V, +3.3V, +5, ±12V, +3.3V/+5V Standby, VBAT) |
| FAN | • Fan Speed Control • Fans with tachometer monitoring • Status monitor with firmware speed control • Low noise fan speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Pulse Width Modulated (PWM) fan connector |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support |
| LED | • +5V Standby Alert LED • Suspend-state indicator LED |
| Other Features | • Chassis Intrusion Header |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
