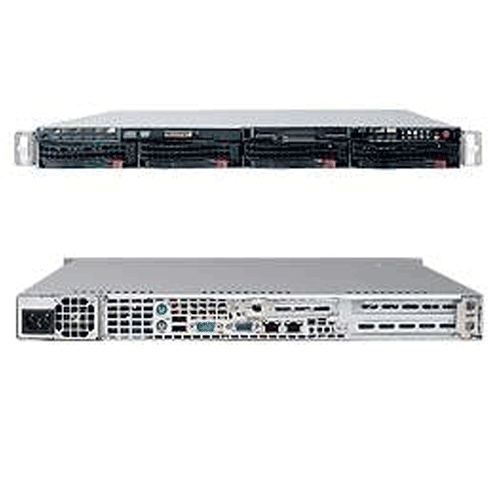

Supermicro 1U Rackmount SuperServer SYS-5015B-NTB

Call for price.

SKU:SYS-5015B-NTB

Quick Overview:

Key Features:
• Intel® Xeon® 3000 Sequence and Core™ 2 Extreme / Quad / Duo Series in
LGA775 Package (FSB 1600/1333/1066/800 MHz)
• Up to 8GB unbuffered non-ECC DDR3 1333/1066/800 SDRAM or up to
4 GB Non-ECC 1600MHz XMP DDR3 memory
• Left Slot (Full-height / Full-length): 2 (x8) PCI-Express
• Right Slot (Low-Profile): 1 (x4) PCI-Express (in x8 Slot)
•Intel® 82573V + Intel® 82573L PCI-e Gigabit Controllers
• On board ATI ES1000 Graphics
• 4x 3.5" Hot-swap Drive Bays For customizable Storage
• 560W High-efficiency Power Supply

Description

Details

SuperServer SYS-5015B-NTB 1U Rackmount

Supermicro SYS-5015B-NTB 1U Rackmount with Intel® X48 chipset, 4x 3.5" Hot-swap drive bays, using Super X7SBU and CSE-815TQ-560UB Rackmount Chassis

Product SKU
SYS-5015B-NTB	• SuperServer 5015B-NTB (Black)

Motherboard
	Super X7SBU

Processor/Cache
CPU	• Single LGA775 ZIF Socket • Supports Quad-Core Intel® Xeon® X3300/X3200 series • Supports Dual-Core Intel® Xeon® E3100/3000 series • Supports Intel® Xeon® processor L3360 and L3110 series • Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series • Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series • Supports Intel® Pentium® E5000/E2000 series • Supports Intel® Celeron® E1000 and 400 series • NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory
System Bus	• 1600 / 1333 / 1066 / 800 MHz system bus

Processor/Cache

CPU

• Single LGA775 ZIF Socket
• Supports Quad-Core Intel® Xeon® X3300/X3200 series
• Supports Dual-Core Intel® Xeon® E3100/3000 series
• Supports Intel® Xeon® processor L3360 and L3110 series
• Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
• Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
• Supports Intel® Pentium® E5000/E2000 series
• Supports Intel® Celeron® E1000 and 400 series

• NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory

System Bus

• 1600 / 1333 / 1066 / 800 MHz system bus

System Memory
Memory Capacity	• Four 240-pin DIMM sockets • Supports up to 8 GB of unbuffered, non-ECC DDR3 1333/1066/800MHz memory (Dual Channel) or up to 4 GB Non-ECC 1600MHz XMP DDR3 memory
Memory Type	• DDR3 1333/1066/800MHz unbuffered, non-ECC SDRAM, 240-pin gold-plated DIMMs or Non-ECC 1600MHz XMP DDR3 memory
DIMM Sizes	• 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage	• Dynamic (1.5V to 1.9V)

On-Board Devices
Chipset	• Intel X48 chipset • ICH9R + Intel® 82573V + Intel® 82573L
Serial ATA	• Intel® ICH9R SB SATA controller built-in (3 Gbps) • RAID 0, 1, 5, 10 (Windows) • RAID 0, 1, 10 (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO-HTC, AOC-SIMSO+) • NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function
Network Controllers	• 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA	• On-board ATI ES1000 (32MB) graphics
Super I/O	• Winbond 83627HG chip
Clock Generator	• IDTCV183-1

Input/Output
Serial ATA	• Six Serial ATA ports (3 Gbps performance) • Six SATA hard drives supported • External SATA supported
IDE	• One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports
USB	• Up to 8x USB 2.0 / 1.1 compliant ports • 2 rear ports + 2 Type A connectors + 2 internal headers (4 ports)
VGA	• 1x VGA port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 2x Fast UART 16550 serial port • 1x internal header

System Bios
Bios Type	• 16Mb Flash EEPROM with SPI BIOS
Bios Features	• Plug and Play (PnP) • DMI 2.3 support • PCI 2.2 • ACPI 1.0 / 2.0 (S3 Optional) • USB Keyboard support • SMBIOS 2.3 • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-815TQ-560UB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 25.6" (650mm)
Weight	• 40 lbs (18.1kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED • UID LED
Ports	• 2x USB & DB9 COM port tray • (Optional - in place of floppy drive)

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap drive bays

System Cooling
Fans	• 4x Counter-rotating Fans

Power Supply
	560W AC power supply w/ PFC (20-pin)
AC Voltage	• 100 - 240V, 50 - 60Hz, 8.5 - 4Amp
+5V	• 25 Amp
+5V stand by	• 3 Amp
+12V	• 43.6 Amp
-12V	• 0.6 Amp
+3.3V	• 21 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset) • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V
FAN	• Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • PSU I2C temperature sensing logic • Thermal Monitor (TM2) Support • PECI
LED	• CPU / System Overheat LED • Suspend-state indicator LED • +5 Standby power alert LED • UID / Remote UID
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment / Compliance
RoHS	• RoHS Compliant 5/6, Server Exemption
Environmental Spec.	• Operating Temperature: 10°C to 40°C (50°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Operating Environment / Compliance

RoHS

• RoHS Compliant 5/6, Server Exemption

Environmental Spec.

• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
