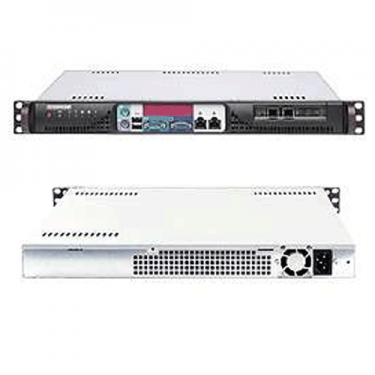

Supermicro 1U Rackmount SuperServer SYS-5015B-MFB

Call for price.

SKU:SYS-5015B-MFB

Quick Overview:

Key Features:
• Intel® Xeon® 3200 Series, Xeon® 3000 Series in LGA775 Package
(FSB 1333/1066/800)
• Front I/O Access
• 1 (x8) PCI-Express OR
1x 64-bit 133MHz PCI-X Slot
• Intel® 82573V + Intel® 82573L PCI-E Gigabit Controllers
• On board ATI ES1000 32MB Graphics
• 1x 3.5" Internal Drive Bay
• 260W Power Supply

Description

Details

SuperServer SYS-5015B-MFB 1U Rackmount

Supermicro SYS-5015B-MFB 1U Rackmount with Intel® 3210 chipset, 1x 3.5" Internal Drive Bay, using Super X7SBi and SC513L-260B Rackmount Chassis

Product SKU
SYS-5015B-MFB	• SuperServer 5015B-MFB (Beige)

Motherboard
	Super X7SBi

Processor/Cache
CPU	• Single LGA775 ZIF Socket • Supports Quad-Core Intel® Xeon® X3300/X3200 series • Supports Dual-Core Intel® Xeon® E3100/3000 series • Supports Intel® Xeon® processor L3360 and L3110 series • Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series • Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series • Supports Intel® Pentium® E5000/E2000 series • Supports Intel® Celeron® E1000 and 400 series • NOTE: Intel Xeon processor L3014 requires an LGA771 socket and is not supported.
System Bus	• 1333 / 1066 / 800 MHz system bus

Processor/Cache

CPU

• Single LGA775 ZIF Socket
• Supports Quad-Core Intel® Xeon® X3300/X3200 series
• Supports Dual-Core Intel® Xeon® E3100/3000 series
• Supports Intel® Xeon® processor L3360 and L3110 series
• Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
• Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
• Supports Intel® Pentium® E5000/E2000 series
• Supports Intel® Celeron® E1000 and 400 series
• NOTE: Intel Xeon processor L3014 requires an LGA771 socket and is not supported.

System Bus

• 1333 / 1066 / 800 MHz system bus

System Memory
Memory Capacity	• Four 240-pin DIMM sockets • Supports up to 8 GB of memory (Dual Channel)
Memory Type	• DDR2 800/667 MHz unbuffered, ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1 GB, 2GB, 4GB
Memory Voltage	• 1.8V only

On-Board Devices
Chipset	• Intel 3210 chipset • ICH9R + PXH + Intel® 82573V + Intel® 82573L
Serial ATA	• Intel® ICH9R SATA2 (3 Gbps) controller built-in • RAID 0, 1, 5, 10 support (Windows Only) • RAID 0, 1, 10 support (Linux)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support • SIMSO Slot - Supermicro Intelligement Management • (Optional: AOC-SIMSO-HTC, AOC-SIMSO+) NOTE: AOC-SIMSO+ must use Dedicated LAN for KVM-over-LAN function
Network Controllers	• 2x Single-port Gigabit PCI-Express Ethernet Controllers • Intel® 82573V + Intel® 82573L • Supports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 output
VGA	• On-board ATI ES1000 (32MB) graphics
Super I/O	• Winbond 83627DHG chip
Clock Generator	• CK505

Expansion Slots
PCI-Express	• 1 Universal (x8) PCI-e slot OR 1 64-bit PCI-X 133 Slot

Input/Output
Serial ATA	• Six Serial ATA ports (3 Gbps performance) • One SATA hard drive supported • External SATA supported
IDE	• One EIDE channel supports up to two UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN ports
USB	• Up to 8x USB 2.0 / 1.1 compliant ports • 2 rear ports • 4 internal headers + 2 on-board
VGA	• 1x VGA port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 1x Fast UART 16550 serial port • 1x internal header
Parallel Port	• 1x ECP / EEP Parallel Port

System Bios
Bios Type	• 8MB Flash EEPROM with Phoenix BIOS®
Bios Features	• Plug and Play (PnP) • DMI 2.3 support • PCI 2.2 • ACPI 1.0 / 2.0 • SMBIOS 2.3 • USB Keyboard support

System Bios

Bios Type

• 8MB Flash EEPROM with Phoenix BIOS®

Bios Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0 / 2.0
• SMBIOS 2.3
• USB Keyboard support

Chassis
Form Factor	• 1U Rackmount
Model	• SC513L-260B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 16.8" (426.7mm)
Depth	• 14" (356mm)
Weight	• 16.5 lbs (7.5kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power Status LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2x USB • 2x LAN • COM • Printer Port

Drive Bays
Internal	• 1x 3.5" Internal Drive Bay

System Cooling
Fans	• 1x 5K RPM blower fan

Power Supply
	Thermal control 260W AC power supply with PFC [ 24-pin, 4-pin=12V, (2) 4-pin ]
AC Voltage	• 100 - 240V, 60-50Hz, 4 Amp Max
DC Output	• 5V + 3.3V ≤ 140W
+5V	• 25 Amp
+5V standby	• 2.0 Amp
+12V	• 18.0 Amp
-12V	• 1.0 Amp
+3.3V	• 15 Amp

Regulatory (Power Supply)
Safety / EMC	• USA - UL Listed, FCC • Canada - CUL listed • Germany - TUV Certified • Europe/CE Mark • EN 60950/IEC 60950-Compliant

PC Health Monitoring
CPU	• Monitors for CPU Cores ( +1.8V, +3.3V, +5, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset) • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.3750V-1.6000V • Adjustable CPU clock frequency ratio
FAN	• Total of six 4-pin fan headers • 6x fans with tachometer monitoring • Status monitor with firmware / software speed control • Status monitor for on/off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Monitor (TM2) Support • PECI
LED	• CPU / System Overheat LED • +5V Standby alert LED
Other Features	• Chassis intrusion detection • Chassis intrusion header

Operating Environment / Compliance
RoHS	• RoHS Compliant 5/6
Environmental Spec.	• Operating Temperature: 10°C to 40°C (50°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
