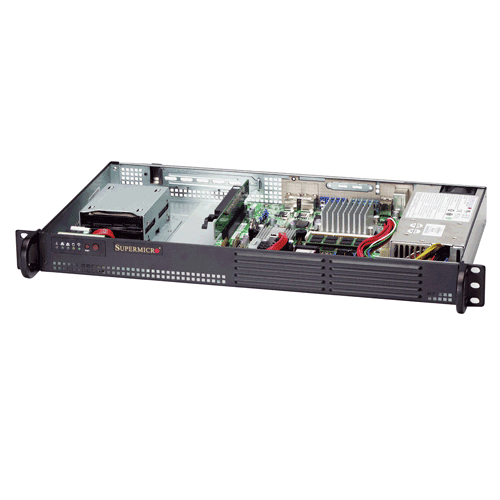

Supermicro SYS-5015A-EHF 1U Rackmount
Supermicro SYS-5015A-EHF 1U Rackmount supports Intel® Atom™ D510 processor, and 1x 3.5" Internal Drive Bay (Standard)
Product Skus | |
|---|---|
| SYS-5015A-EHF | SuperServer 5015A-EHF (Black) |
Motherboard | |
|---|---|
| • Super X7SPE-HF | |
Processor / Cache |
|
|---|---|
| CPU | • Intel® Atom™ D510 processor |
| System Bus | • DMI |
System Memory |
|
|---|---|
| Memory Capacity | • Two 200-pin SO-DIMM sockets • Supports up to 4 GB of unbuffered, non-ECC DDR2 667MHz SO-DIMM (Single Channel) |
| Memory Type | • DDR2 667MHz unbuffered, non-ECC SO-DIMM |
| DIMM Sizes | • 256 MB, 512 MB, 1 GB, 2GB |
| Memory Voltage | • 1.8V only |
On-Board Devices |
|
|---|---|
| Chipset | • Intel ICH9R • Intel 82574L |
| SATA | • Intel ICH9R SATA 3.0Gbps Controller |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC |
| Network Controllers | • 2x Intel 82574L Gigabit Ethernet • Supports 10BASE-T, 100/1000BASE-TX, RJ45 output |
| Graphics | • Onboard Matrox G200eW video |
| Super I/O | • Winbond 83627DHG chip |
Input / Output |
|
|---|---|
| Serial ATA | • 6 Serial ATA ports ( 3Gbps ) |
| LAN | • 2x RJ45 LAN port |
| USB | • 8x USB 2.0 / 1.1 compatible • 2 rear + 3 headers (5 ports) + 1 Type A connector |
| VGA | • D-Sub 15 |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1x Fast UART 16550 serial port • 3x Serial Header |
System Bios |
|
|---|---|
| BIOS Type | • 8Mb Flash EEPROM with AMI BIOS |
| BIOS Features | • Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 • USB Keyboard support • SMBIOS 2.3 |
Drive Bays |
|
|---|---|
| Internal Bay | • 1x 3.5" Internal Drive Bay (Standard) • OR 2x 2.5" Internal Drive (Optional) • OR 1x 2.5" Internal Drive (Optional) |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-502L-200B |
Dimensions |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 9.8" (249mm) |
| Gross Weight | • 10 lbs (4.5kg) |
| Colors | • Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button • System Reset button |
| LEDs | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED |
| I/O Ports | • Standard System I/O (Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) |
Expansion Slot |
|
|---|---|
| PCI-Express | • 1 (x4) PCI-e 2.0 slot (in x16 slot) |
Power Supply |
|
|---|---|
| • 200W Low Noise AC-DC power supply with PFC | |
| AC Voltage | • 100 - 240V, 50-60Hz, 3-1.5 Amp Max |
| +5V | • 16.0 Amp |
| +5V standby | • 2.0 Amp |
| +12V | • 15.0 Amp |
| -12V | • 0.8 Amp |
| +3.3V | • 17.0 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, VBAT, Memory, Chipset • CPU Core 1-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V |
| FAN | • Total of four 4-pin fan headers • 4 x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on / off control • Support 3-pin fans (without speed control) • Low noise fan speed control • Pulse Width Modulated (PWM) fan conn. |
| Temperature | • Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 4 x Fan Connectors • I2C temperature sensing logic • Thermal Monitor 2 (TM2) Support |
| LED | • CPU / System Overheat LED |
| Other Features | • Chassis intrusion Detection • Chassis intrusion Header • SDDC Support |
Operating Environment |
|
|---|---|
| Environmental Spec. | • Operating Temperature: 0°to 50°C • Non-operating Temperature: -40°to 70°C • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing) |
