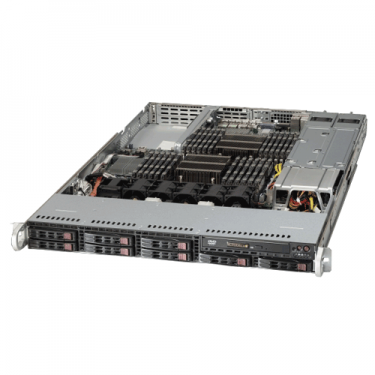

Supermicro 1U Rackmount SYS-1027R-WRFT+ Angle

More Views

Supermicro 1U Rackmount SuperServer SYS-1027R-WRFT+

Call for price.

SKU:SYS-1027R-WRFT+

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 1.5TB ECC DDR3, up to 1866MHz; 24x DIMM slots
• 1 PCI-E 3.0 (x8) Low-profile, 1 PCI-E 3.0 (x16) & 1 PCI-E 3.0 (x8) Full-height slots (see below for details)
• Intel i350 Dual port GbE & Intel X540 Dual port 10GBase-T Controllers
• 8x Hot-swap 2.5" SAS/SATA HDD bays for Customizable Storage
• 750/700W Redundant power supplies Gold Level Certified

Description

Details

SuperServer SYS-1027R-WRFT+

Supermciro 1027R-WRFT+ 1U Server Barebone with 750/700W Redundant power supplies Gold Level Certified, Intel® C606 Chipset support 8x Hot-swap 2.5" SAS/SATA HDD bays
using Supermciro Super X9DRW-3TF+ Server Motherboard and CSE-119TQ-R700WB 1U Rackmount Chassis.

Product SKU
SYS-1027R-WRFT+	• SuperServer 1027R-WRFT+ (Black)

Motherboard
	Super X9DRW-3TF+

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	• † BIOS version 3.0 or above is required
	• Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	• 24x 240-pin DDR3 DIMM slots • Up to 1.5TB DDR3 ECC LRDIMM • Up to 768GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C606 chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
SAS	• SAS from C606 • RAID 0, 1, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Connectivity	• Intel® X540 Dual Port 10GBase-T • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA	• Matrox G200eW

Input/Output
SAS/SATA	• Customizable storage
LAN	• 2x RJ45 10GBase-T ports • 2x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 7x USB 2.0 ports total (2x rear + 4x via header + 1x Type A)
Video	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-119TQ-R700WB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 26.6" (676mm)
Gross Weight	• 46 lbs (20.9kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button • UID button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots
PCI-Express	• 1 PCI-E 3.0 (x16) Full-height (10" length) • 1 PCI-E 3.0 (x8) Full-height (6.6" length) • 1 PCI-E 3.0 (x8) Low-profile (4.1" length) • UIO AOC Compatibility Matrix (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Expansion Slots

PCI-Express

• 1 PCI-E 3.0 (x16) Full-height (10" length)
• 1 PCI-E 3.0 (x8) Full-height (6.6" length)
• 1 PCI-E 3.0 (x8) Low-profile (4.1" length)
• UIO AOC Compatibility Matrix

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap	• 8 Hot-swap 2.5" SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral Drives
DVD-ROM	• Slim DVD-ROM drive (optional)

Backplane
	• SAS/SATA HDD Backplane (SAS support requires optional SAS controller)

System Cooling
Fans	• 6x 4cm Counter-rotating PWM fans

Power Supply
	700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Input	• 700W: 100-140 V, 50-60 Hz, 8.5-6 Amp • 750W: 180-240 V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby	• 3 Amp
DC Output +12V	• 700W: 58 Amp @ 100-140V • 750W: 62 Amp @ 180-240V
With Power Distributor	• +5V: 25 Amp • +3.3V: 25 Amp • -12V: 0.6 Amp
Certification	• GoldCertified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
