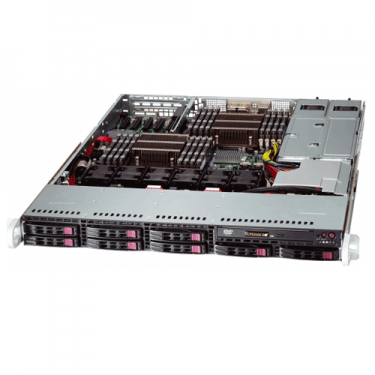

Supermicro 1U Rackmount SYS-1027R-73DBRF - Angle

More Views

Supermicro 1U Rackmount SuperServer SYS-1027R-73DBRF

Call for price.

SKU:SYS-1027R-73DBRF

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
• Expansion slot: 1 (x8) PCI-E 3.0
• I/O Support: Intel® i350 GbE LAN (4x ports), 9x USB 2.0 ports (4x rear, 4x via headers, 1x Type A)
• 10x Hot-swap 2.5" SAS/SATA HDD bays; SAS2 support via LSI 2308
• 700W Redundant Power Supplies Gold Level Certified

Description

Details

SuperServer SYS-1027R-73DBRF

Supermcro 1027R-73DBRF 1U Server Barebone with 700W Redundant Power Supplies Gold Level Certified, Intel® C602J Chipset support 10x Hot-swap 2.5" SAS/SATA HDD
bays use Supermcro Super X9DRD-7LN4F Server Motherboard and CSE-116TQ-R700CB 1U Rackmount.

Product SKU
SYS-1027R-73DBRF	• SuperServer 1027R-73DBRF (Black)

Motherboard
	Super X9DRD-7LN4F

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (60W - 135W TDP)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	• † BIOS version 3.0 or above is required
	• Please contact WillJaya Technical support for additional information

System Memory
Memory Capacity	• 16x 240-pin DDR3 DIMM slots • Up to 1TB DDR3 ECC LRDIMM • Up to 512GB DDR3 ECC Registered memory (RDIMM) • Up to 128GB DDR3 ECC and non-ECC UDIMM
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602J chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1, 5, 10
SAS	• SAS2 (6Gbps) via LSI 2308 • SW RAID 0, 1, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Renesas SH7757 BMC
Network Connectivity	• Intel® i350 Quad Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output • 1x Realtek RTL8211E PHY (dedicated IPMI)
VGA	• Matrox G200eW

Input/Output
Serial SATA	• 2x SATA 3.0 ports (6Gbps) • 4x SATA 2.0 ports (3Gbps)
SAS	• 8x SAS ports
LAN	• 4x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A)
Video	• 1x VGA port
Serial Port/Header	• 1x Fast UART 16550 port / 1 Header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-116TQ-R700CB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 23.5" (597mm)
Gross Weight	• 42 lbs (19.05kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • UID button
LED	• Power status LED • HDD activity LED • 2x Network activity LEDs • Universal Information (UID) LED

Expansion Slots
PCI-Express	• 1 (x8) PCI-E 3.0 slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Expansion Slots

PCI-Express

• 1 (x8) PCI-E 3.0 slot

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap	• 10x Hot-swap 2.5" SAS/SATA HDD trays

Backplane
	• SAS/SATA HDD Backplane

System Cooling
Fans	• 6x 40x56mm Counter-rotating PWM fans

Power Supply
	700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage	• 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp • 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp
DC Output +5V standby	• 3 Amp
DC Output +12V	• 700W: 58 Amp @ 100-140V • 750W: 62 Amp @ 180-240V
With Power Distributor	• +5V: 25A • +3.3V: 12A • 12V: 0.6A
Certification	• Gold Certified

System Bios
Bios Type	• 128Mb SPI Flash EEPROM with AMI BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • PCI 2.2 • ACPI 1.0 / 2.0 / 3.0 / 4.0 • USB Keyboard support • SMBIOS 2.3 • UEFI

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
