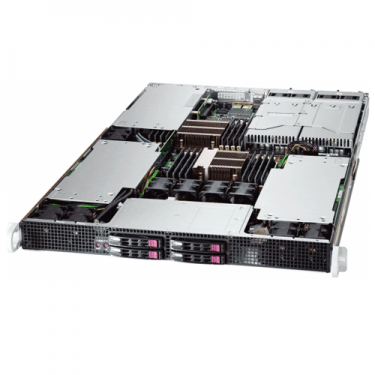

Supermicro 1U Rackmount SYS-1027GR-TQF - Angle

More Views

Supermicro 1U Rackmount SuperServer SYS-1027GR-TQF

Call for price.

SKU:SYS-1027GR-TQF

Quick Overview:

Key Features:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• 4x PCI-E 3.0 x16 slots (up to 2x double width GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® i350 Dual-Port GbE Controller
• 4x Hot-swap 2.5" SATA Drive Bays
• 1800W High-efficiency Power Supply Platinum Level (94%+)
• 12x Cooling Fans Total
• Smart server management tools

Description

Details

SuperServer SYS-1027GR-TQF

Supermciro 1027GR-TQF 1U Rackmount Barebone with 1800W Power Supply w/ PMBus, Intel® C602 Chipset support 4x Hot-swap 2.5" SATA Drive Bays using Supermicro X9DRG-HF
Server Motherboard and CSE-118GQ-1800GB 1U Rackmount Chassis.

Product SKU
SYS-1027GR-TQF	• SuperServer 1027GR-TQF (Black)

Motherboard
	Super X9DRG-HF

Processor/Cache
CPU	• Dual Socket R (LGA 2011) • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 115W TDP)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
Note	• † BIOS version 3.0 or above is required
	• Please contact WillJaya Technical support for additional information
GPU	• Supports M2090/M2075, up to 115W CPU at 30°C

System Memory
Memory Capacity	• 8x 240-pin DDR3 DIMM slots • Up to 512GB DDR3 ECC LRDIMM • Up to 256GB DDR3 ECC Registered memory (RDIMM) • Up to 48GB DDR3 ECC and non-ECC UDIMM
Memory Type	• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• SATA 2.0 3Gbps with RAID 0, 1, 5, 10 • SATA 3.0 6Gbps with RAID 0, 1
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA	• Matrox G200eW

Input/Output
SATA	• 2 SATA 3.0 ports (6Gbps) • 2 SATA 2.0 ports (3Gbps)
LAN	• 2 RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 2.0 ports
Video	• 1x VGA Connector
Keyboard/Mouse	• 1 PS/2 Keyboard/Mouse port
Serial Port	• 1x Serial header

System Bios
BIOS Type	• 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.3 • UEFI • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-118GQ-1800GB

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 31" (787mm)
Gross Weight	• 48 lbs (21.8 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	• 4x PCI-E 3.0 x16 slots (GPU card option) • 1x PCI-E 3.0 x8 (in x16) low-profile slot • Supports 4 GPU cards (one via riser card RSC-R1UG-E16BR-X9-O-P) • AOC Compatibility Matrix

Drive Bays
Hot Swap	• 4x 2.5" Hot-swap drive bays

System Cooling
Fans	• 12x Counter-rotating Fans with optimal fan speed control

Power Supply
	1800W power supply with PMBus
AC Input	• 1000W Output @ 100-120V, 12-10A, 50-60Hz • 1200W Output @ 120-140V, 12-10A, 50-60Hz • 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output	• 1000W: +12V/84A; +5Vsb/4A • 1200W: +12V/100A; +5Vsb/4A • 1800W: +12V/150A; +5Vsb/4A
Certification	• Platinum Certified (94%)

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 6-Phase-switching voltage regulator
FAN	• Total of ten 4-pin PWM fans • 12x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 10x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Features	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 5°C to 35°C (41°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
