Details

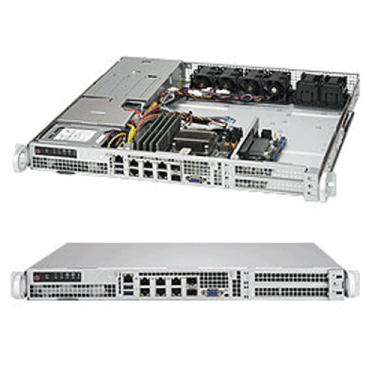

Supermicro SYS-1018D-FRN8T 1U Rackmount with 400W redundant power supply, 1x 3.5" or 4x 2.5" fixed drive bays, using Supermicro
Super X10SDV-7TP8F
Motherboard
and CSE-515-R407 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-1018D-FRN8T | • SuperServer 1018D-FRN8T (Silver) |
Motherboard |
|
|---|---|
| Super X10SDV-7TP8F | |
Processor/Cache |
|
|---|---|
| CPU | • Intel® Xeon® processor D-1587,
1.7GHz-2.3GHz, CPU TDP support 65W |
| Cores/Cache | • 16 Cores, 32 Threads / 24MB |
System Memory |
|
|---|---|
| Memory Capacity |
• 4x DDR4 DIMM sockets • Supports up to 128GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM |
| Memory Type | • 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM |
| DIMM Sizes | • 32GB, 16GB, 8GB, 4GB |
| Memory Voltage | • 1.2 V |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) |
On-Board Devices |
|
|---|---|
| SATA | • SoC controller for SATA3 (6Gbps) ports |
| Network Controllers | • Dual 10G SFP+ from D-1500 SoC • Quad 1GbE with Intel I350-AM4 • Dual 1GbE with Intel I210 |
| IPMI | • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Dedicated RJ45 IPMI LAN port |
| Graphics | • BMC integrated ASPEED AST2400 |
Input/Output |
|
|---|---|
| SATA | • 4x SATA3 (6Gbps) ports |
| LAN | • 2x 10G SFP+ ports • 6x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port |
| USB | • 2x USB 3.0 ports (rear) |
| DOM | • 1x SATA DOM (Disk on Module) power connector |
| VGA | • 1x VGA Port |
| Others | • TPM 1.2 header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-515-R407 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 16.9" (429mm) |
| Weight | • 12 lbs (5.44 kg) |
| Available Color | • Silver |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status) |
Expansion Slots |
|
|---|---|
| PCI-E | • 1x PCIe 3.0 x8 slots |
Drive Bays |
|
|---|---|
| HDD | • 4x 2.5" fixed drive bays |
System Cooling |
|
|---|---|
| Fans | • Passive Heatsink, 40mm chassis fan |
AC/DC 240 Input Redundant Power Supply |
|
|---|---|
| 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | • 400W |
| Dimension
(W x H x L) |
• 54.5 x 40 x 220 mm |
| Input | • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz • 200 - 240Vdc / 3.4 - 3.2A (CCC Only) |
| +12V | • Max: 33A / Min: 0.5A |
| +5V sb | • Max: 3A / Min: 0A |
| Output Type | • Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | • Platinum Level Certified |
System Bios |
|
|---|---|
| Bios Type | • 128Mb SPI Flash with AMI BIOS |
| Bios Features | • PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
| Environmental Spec. | • Operating Temperature:
10°C to 40°C (50°F to 104°F) |
