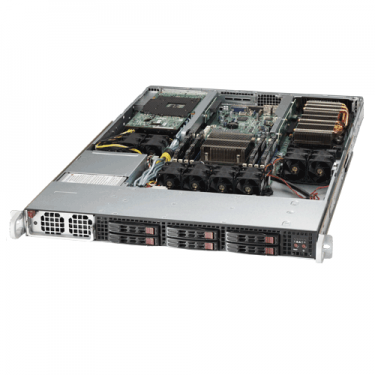

Supermicro 1U Rackmount SuperServer SYS-1017GR-TF

Call for price.

SKU:SYS-1017GR-TF

Quick Overview:

Key Features:
• Single socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards), 1x PCI-E 3.0 x8 low-profile slot
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Intel® i350 Dual-Port GbE Controller
• 6x Hot-swap 2.5" SATA Drive Bays
• 1400W High-efficiency Power Supply Platinum Level (94%+) Digital Switching Control & PMBus 1.2
• 8x Counter rotating fans w/ optimal fan speed control
• Smart server management tools

Description

Details

SuperServer SYS-1017GR-TF

Supermicro 1017GR-TF 1U Rackmount Barebone with 1400W High-efficiency Power Supply, Intel® C602 Chipset support 6x Hot-swap 2.5" SATA Drive Bays using Supermicro
X9SRG-F Server Motherboard and CSE-118G-1K43B 1U Rackmount Chassis.

Product SKU
SYS-1017GR-TF	• SuperServer 1017GR-TF (Black)

Motherboard
	Super X9SRG-F

Processor/Cache
CPU	• Single Socket R (LGA 2011) • ntel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 12 cores and up to 130W)
Cache	• Up to 30MB
System Bus	• QPI up to 8 GT/s
GPU/Xeon Support	• M2075/M2090, up to 130W CPU at 35°C • K10/K20/K20X (Kepler), up to 130W CPU at 35°C

System Memory
Memory Capacity	• 8x 240-pin DDR3 DIMM slots • Up to 512GB DDR3 ECC LRDIMM • Up to 256GB DDR3 ECC Registered memory (RDIMM)
Memory Type	• 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.5 V, 1.35 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	• Intel® C602 Chipset
SATA	• 2 SATA3 (6Gbps) & 4 SATA2 (3Gbps) • RAID 0, 1, 5, 10 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Nuvoton WPCM450 BMC
Network Connectivity	• Intel® i350 Dual Port Gigabit Ethernet • Virtual Machine Device Queues reduce I/O overhead • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• Matrox G200eW
Super I/O	• Nuvoton W83527

Input/Output
SATA	• 2 SATA 3.0 ports (6Gbps) • 4 SATA 2.0 ports (3Gbps)
LAN	• 2x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 6 USB 2.0 ports total (2 rear + 4 via headers)
Video	• 1 VGA Connector
Keyboard/Mouse	• PS/2 keyboard and mouse ports
Serial Port/Header	• 1 Serial header
DOM	• 1 DOM (Disk on Module) power connector

System Bios
Bios Type	• 64Mb SPI Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • APM 1.2 • DMI 2.3 • PCI 2.2 • ACPI 1.0 / 2.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.3 • UEFI • RTC (Real Time Clock) Wakeup

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-118G-1K43B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 28.5" (724mm)
Gross Weight	• 41.4 lbs (18.8 kg)
Available Colors	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LED	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED / Fan fail LED / UID LED

Expansion Slots
PCI-Express	• 2x PCI-E 3.0 x16 slots (support GPU/Xeon Phi cards) • 1x PCI-E 3.0 x8 slot for I.B. card • AOC Compatibility Matrix

Drive Bays
Hot-Swap	• 6x 2.5" Hot-swap drive bays

System Cooling
Fans	• 8x counter-rotating fans with optimal fan speed control

Power Supply
	1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage	• 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz • 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby	• 6 Amp
+12V	• 100 Amp/115 Vac • 117 Amp/230 Vac
With Power Distributor	• +5V: 14 Amp
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages. • CPU Core 5-Phase-switching voltage regulator
FAN	• Total of eight 4-pin PWM fans • 8x fans with tachometer monitoring • Status monitor for speed control • Status monitor for on/off control • Low noise fan speed control
Temperature	• Monitoring for CPU and chassis environment • CPU thermal trip support • Thermal Control for 8x Fan Connectors • PSU I2C temperature sensing logic • Thermal Monitor 2 (TM2) support • PECI
LED	• Power Fail / Overheat LED • Suspend-state Indicator LED • UID LED
Other Featues	• SDDC Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
