Details

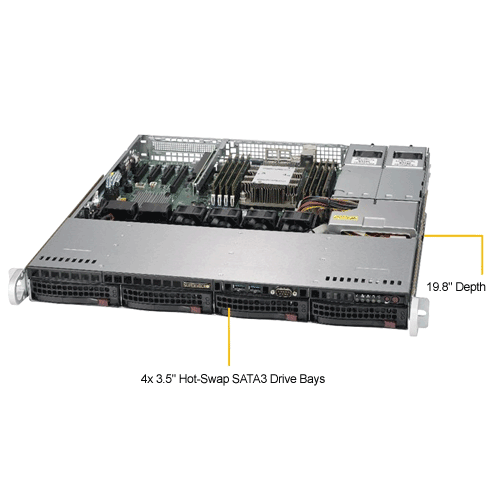

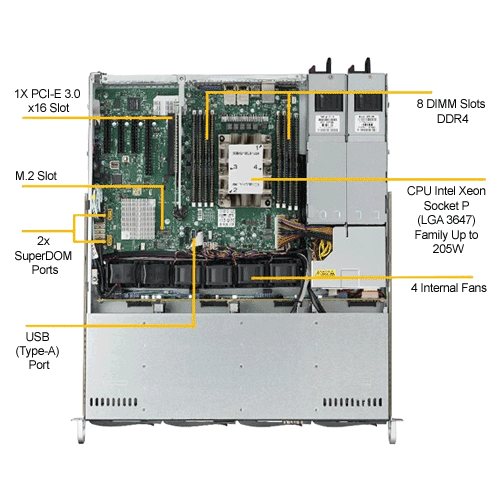

Supermicro SuperServer SYS-5019P-MTR
Product SKU |
|
|---|---|
| SYS-5019P-MTR | • SuperServer 5019P-MTR (Black) |
Motherboard |
|
|---|---|
| Super X11SPi-TF | |
Processor/Cache |
|
|---|---|
| CPU | • Single Socket P (LGA 3647) • Intel® Xeon® Scalable Processors • Support CPU TDP 70-205W |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 256GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C622 chipset |
| SATA | • SATA3 (6Gbps) via C622 controller • RAID 0, 1, 5, 10 support |
| Network Connectivity | • Dual 10GBase-T LAN with Intel® X772 + X557 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 4 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 10GBase-T LAN ports • 1 RJ45 dedicated IPMI LAN port |
| USB | • 4 USB 3.0 ports (2 front, 2 rear) • 2 USB 2.0 ports (rear) |
| Video | • 1 VGA port |
| Serial Port / Header | • 2 COM ports (1 rear, 1 header) |
| SuperDOM | • 2 SuperDOM (Disk on Module) ports with built-in power |
System BIOS |
|
|---|---|
| Bios Type | • AMI 32Mb SPI Flash ROM |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configuration | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-813MFTQC-R407CB |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 19.8" (503mm) |
| Gross Weight | • 30.4 lbs (13.8 kg) |
| Available Color | • Black |

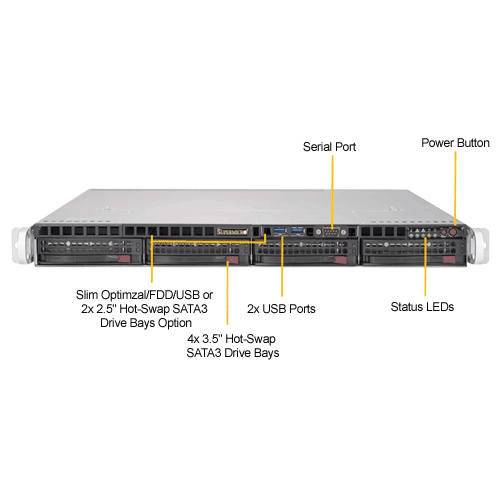

Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power LED • Hard drive activity LED • Network activity LEDs • System Overheat LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x16 slot |
Drive Bays / Storage |
|
|---|---|
| Hot-swap | • 4 Hot-swap 3.5" SATA3 drive bays |
| M.2 | • M.2 mini-PCI-e support |
System Cooling |
|
|---|---|
| Fans | • 4x 40mm mid-fans |
Power Supply |
|
|---|---|
| 400W 1U Redundant Power Supplies with PMbus | |
| Total Output Power | • 400w |
| Dimension (W x H x L) |
• 54.5 x 40 x 220 mm |
| Input | • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz • 200 - 240Vdc / 3.4 - 3.2A (CCC Only) |
| -12V | • Max: 33A / Min: 0.5A |
| +5Vsb | • Max: 3A / Min: 0A | 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
| Output Type | • Gold Finger Connector Mating with Molex 45984-4343 | 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
| Certification | • 80 Plus Platinum Level Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec.
|
• Operating Temperature:
10°C to 35°C (50°F to 95°F)
|
