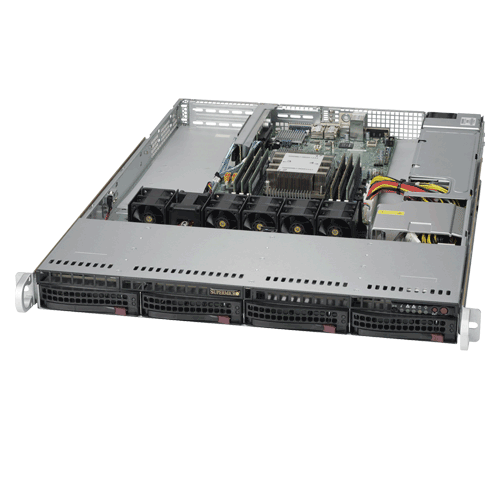

  • Supermicro SYS-5019P-M Angle

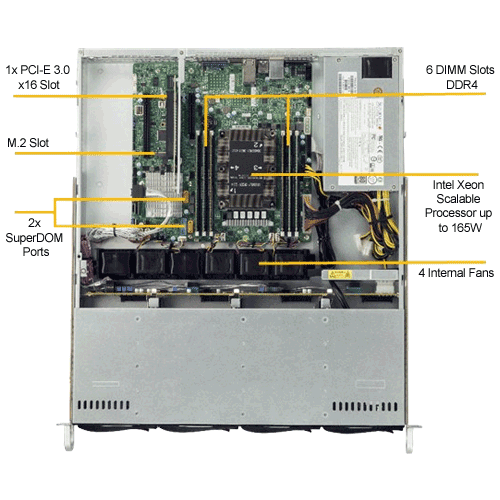

  • Supermicro SYS-5019P-M Top

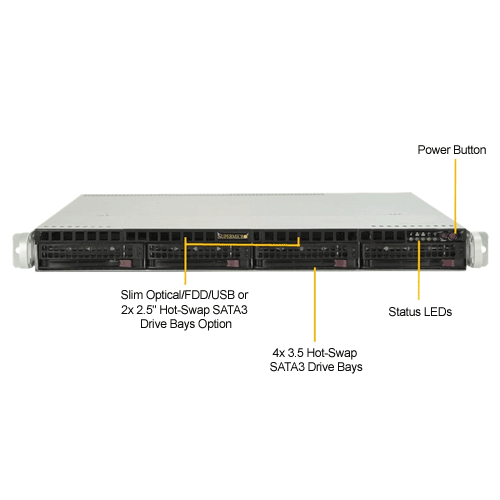

  • Supermicro SYS-5019P-M Front

Supermicro 1U Rackmount Server SYS-5019P-M Scalable Processors

Call for price.
SKU:SYS-5019P-M

Quick Overview:

Key Features:
• Web Hosting, VM
• Compact Network Appliance
• Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Intel® C621 chipset
• 4 Hot-swap 3.5" SATA3 bays w/ RAID
• Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
• 1 PCI-E 3.0 x16 slot (FH, HL)
• 2x 1GbE with Marvell® 88E1512
• Integrated IPMI 2.0 and KVM with Dedicated LAN
• 1 VGA, 2 COM, 5 USB 3.0, 6 USB 2.0
• 350W High-efficiency Power Supply Platinum Level Certified


Details

Supermicro SuperServer SYS-5019P-M
Product SKU
• SuperServer 5019P-M (Black)
Motherboard
    Super X11SPM-F
Processor/Cache
CPU • Single Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors
• Support CPU TDP 70-165W with IVR
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 6 DIMM slots
• Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps) via C621 controller
• RAID 0, 1, 5, 10 support
Network Connectivity • Dual Gigabit Ethernet LAN with Marvell® 88E1512
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SATA

• 4 SATA3 (6Gbps) ports

LAN • 2 RJ45 1GbE LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 4 USB 3.0 ports (2 front, 2 rear)
• 2 USB 2.0 ports (rear)
Video • 1 VGA port
Serial Port / Header • 2 COM ports (1 rear, 1 header)
SuperDOM • 2 SuperDOM (Disk on Module) ports with built-in power
System BIOS
Bios Type • AMI UEFI
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-813MFTQC-350CB
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 19.8" (503mm)
Gross Weight • 30.4 lbs (13.8 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED
Expansion Slots
PCI-Express • 1 PCI-E 3.0 x16 slot (FH, HL)
Drive Bays / Storage
Hot-swap • 4 Hot-swap 3.5" SATA3 drive bays
M.2 • Interface: PCIe 3.0 x4
• Form Factor: 2242, 2280
Peripheral Drives
Optional • Optional slim optical device bay, optional FDD/USB bay
System Cooling
Fans • 4x 40x28mm PWM fans; 2x 40x28mm PWM fans
• Optional 2 fans for AOC cooling
Power Supply
  350W AC power supply w/ PFC
AC Voltage • 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V • Max.: 15 Amp
• Min.: 0.2 Amp
+5V standby • Max.: 3 Amp
• Min.: 0 Amp
+12V • Max.: 29 Amp
• Min.: 0.5 Amp
-12V • Max.: 0.2 Amp
• Min.: 0 Amp
+.3.V • Max.: 12 Amp
• Min.: 0.2 Amp
Certification • 80 Plus Platinum Level Certified
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.







• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
