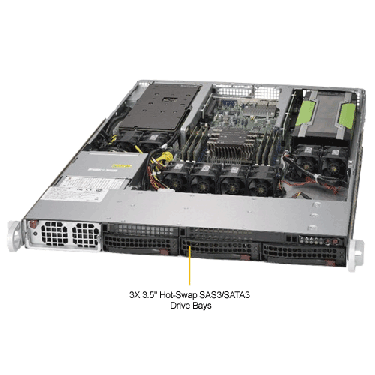

  • Supermicro 1U Rackmount Server SYS-5019GP-TT-TopAngle
  • Supermicro 1U Rackmount Server SYS-5019GP-TT-TopView
  • Supermicro 1U Rackmount Server SYS-5019GP-TT-FrontView

Supermicro 1U Rackmount Server SYS-5019GP-TT Scalable Processors

Call for price.
SKU:SYS-5019GP-TT

Quick Overview:

Key Features:
• Single socket P (LGA 3647) supports Intel® Xeon® Scalable Processors
• Up to 768GB ECC 3DS LRDIMM, up to DDR4-2666MHz; 6 DIMM slots
• 2 PCI-E 3.0 x16 slots (support double-width GPU), 1 PCI-E 3.0 x16 low-profile slot (center right)
• 3 Hot-swap 3.5" SAS/SATA drive bays,
   1 slim DVD-ROM drive bay
• 2x 10GBase-T LAN ports via Intel X550
• Dual M.2 in 2280
• 8 Heavy duty 4cm counter-rotating 4cm fans with air shroud & optimal fan speed control
• 1400W High-efficiency Power Supply Platinum Level (94%+)

Details

Supermicro SuperServer SYS-5019GP-TT
Product SKU
• SuperServer 5019GP-TT (Black)
Motherboard
    Super X11SPG-TF
Processor/Cache
CPU • Single Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
GPU /
Coprocessor Support
• P100/P40/P4/K80/M60/Coprocessor
System Memory
Memory Capacity • 6 DIMM slots
• Up to 768GB ECC 3DS LRDIMM, 192GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • Intel® X550 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500
Input/Output
SATA

• 6 SATA3 (6Gbps) ports

LAN • 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
Serial Port • 1 Fast UART 16550 header
DOM • 2 DOM (Disk on Module) power connectors
System BIOS
Bios Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-818GTS-1K43BP
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 28.5" (724mm)
Gross Weight • 36 lbs (16.33 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express • 1 PCI-E 3.0 x16 slot (center right)
• 1 PCI-E 3.0 x16 slot (right riser)
• 1 PCI-E 3.0 x16 slot (left riser)
Drive Bays
Hot-swap • 3 Hot-swap 3.5" SAS/SATA drive bays
M.2 • Dual M.2 Mini PCIe support 2280
Peripheral Bay(s) • 1 slim DVD-ROM drive bay or 1 USB + COM port tray
System Cooling
Fans • 8 heavy duty counter-rotating 4cm fans with air shroud and optimal fan speed control
Power Supply
  1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage • 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz
• 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz
+5V standby • 6 Amp
+12V • 100 Amp/115 Vac
• 117 Amp/230 Vac
With Power
Distributor
• +5V: 14 Amp
Certification • 80 Plus Platinum Certified
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.















• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
