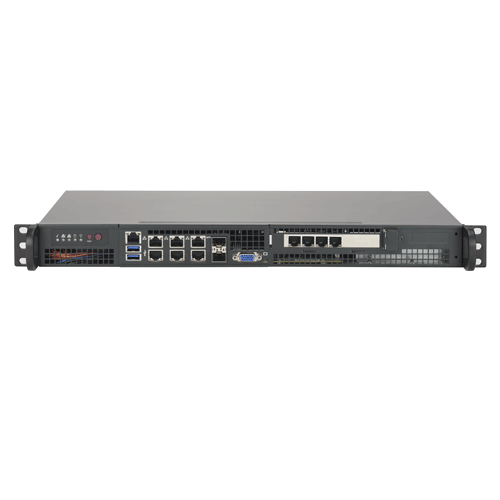

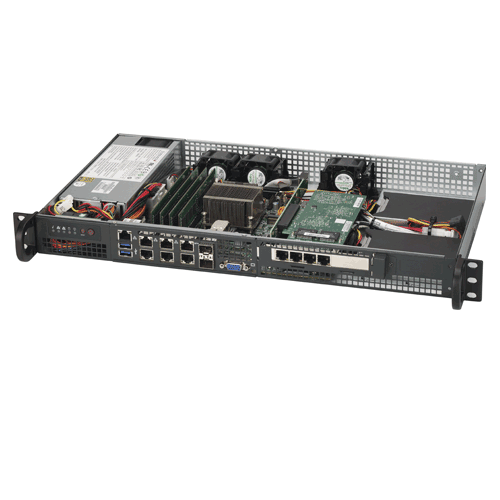

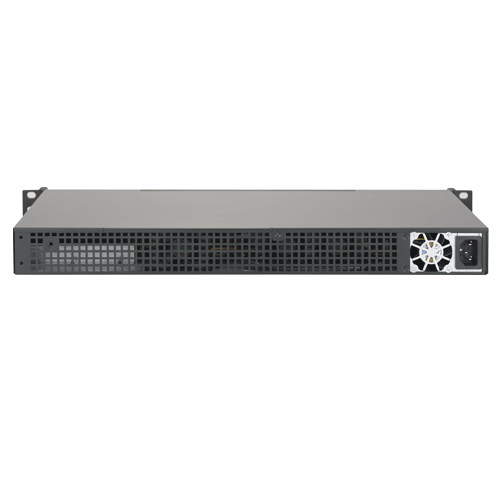

Supermicro 1U Rackmount Server SYS-5018D-FN8T

Call for price.

SKU:SYS-5018D-FN8T

Quick Overview:

Key Features:
• Compact Design, < 10" depth
• Cloud and Virtualization
• Network Appliance
• Embedded Application
• 7 year life cycle
• Intel® Xeon® processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
• 1x 3.5" or 4x 2.5" drive bays with bracket
• 1x PCIe 3.0 x8 slot, M.2 PCIe 3.0 x4, M Key 2242/2280/ 22110, Mini-PCIe with mSATA support
• Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in 4 sockets
• Dual 10G SFP+ and Six 1GbE LAN
• I/O: 2x USB 3.0, VGA
• Passive CPU heat sink and 3x 40mm chassis fans
• DOM power connector
• 200W Low-noise power supply w/ PFC

Description

Details

SuperServer SYS-5018D-FN8T 1U Rackmount

Supermicro SYS-5018D-FN8T 1U Rackmount with 200W Low-noise power supply w/ PFC, 1x 3.5" or 4x 2.5" fixed drive bays with bracket, using Supermicro Super X10SDV-TP8F
Motherboard and CSE-505-203B Rackmount Chassis

Product SKU
SYS-5018D-FN8T	• SuperServer 5018D-FN8T (Black)

Motherboard
	Super X10SDV-TP8F

Processor/Cache
CPU	• Intel® Xeon® processor D-1518, 2.2GHz; CPU TDP support 35W • FCBGA 1667
Cores/Cache	• 4 Cores, 8 Threads / 6MB

System Memory
Memory Capacity	• 4x DDR4 DIMM sockets • Supports up to 128GB DDR4 ECC RDIMM • Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type	• 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB
Memory Voltage	• 1.2 V
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory)

On-Board Devices
SATA	• SoC controller for SATA3 (6Gbps) ports
Network Controllers	• Dual 10G SFP+ from D-1500 SoC • Quad 1GbE with Intel I350-AM4 • Dual 1GbE with Intel I210
IPMI	• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • Dedicated RJ45 IPMI LAN port
Graphics	• BMC integrated ASPEED AST2400

Input/Output
SATA	• 4x SATA3 (6Gbps) ports
LAN	• 2x 10G SFP+ ports • 6x RJ45 Gigabit Ethernet LAN ports • 1x RJ45 Dedicated IPMI LAN port
USB	• 2x USB 3.0 ports (rear)
DOM	• 1x SATA DOM (Disk on Module) power connector
VGA	• 1x VGA Port
Others	• TPM 2.0 header

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-505-203B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 9.8" (249mm)
Weight	• 12 lbs (5.44 kg)
Available Color	• Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED • Information LED (temp., status)

Expansion Slots
PCI-E	• 1x PCIe 3.0 x8 slots • M.2 PCIe 3.0 x4, M Key 2242/2280/22110 • Mini-PCIe with mSATA support

Drive Bays
HDD	• 1x 3.5" or 4x 2.5" fixed drive bays with bracket

System Cooling
Fans	• Passive Heatsink, 40mm chassis fan

Power Supply
	200W Low Noise AC-DC power supply with PFC
AC Voltage	• 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V	• 8.0 Amp (max.)
+5V stand by	• 2.0 Amp
+12V	• 16 Amp (max.)
-12V	• 0.5 Amp (max.)
+3.3V	• 8.0 Amp (max.)
Certification	• Gold Certified

System Bios
Bios Type	• 128Mb SPI Flash with AMI BIOS
Bios Features	• PCI 3.0 • ACPI 5.0 • USB Keyboard support • Hardware BIOS Virus protection • SMBIOS 2.8 • UEFI 2.4 • RTC (Real Time Clock) Wakeup

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 40°C (50°F to 104°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
