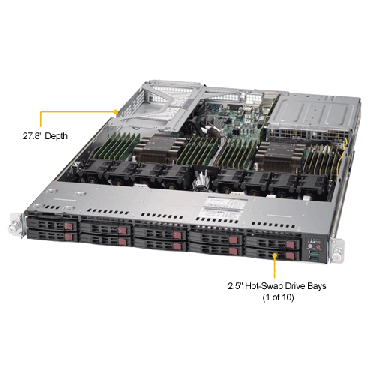

  • Supermicro 1U Rackmount Server SYS-1029U-TRTP-TopView
  • Supermicro 1U Rackmount Server SYS-1029U-TRTP-TopView
  • Supermicro 1U Rackmount Server SYS-1029U-TRTP-FrontView

Supermicro 1U Rackmount Server SYS-1029U-TRTP Scalable Processors NVME

Call for price.
SKU:SYS-1029U-TRTP

Quick Overview:

Key Features:
• Virtualization | Cloud Computing | High End Enterprise Server
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots
• 2 PCI-E 3.0 x16 slots (FH, 10.5" L),
   2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)
• 2x 10GBase-T Ethernet ports
• 10 Hot-swap 2.5" Drive Bays;
   10 SATA3 (2 hybrid ports - 2 NVMe opt.)
• 8x heavy duty fans w/ optimal fan speed control
• 750W Redundant Power Supplies Platinum Level (94%+)


Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-1029U-TRTP
Product SKU
• SuperServer 1029U-TRTP (Black)
Motherboard
       Super X11DPU
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-205W
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 24 DIMM slots
• Up to 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SAS • SAS3 (12Gbps) support via AOC
Network Connectivity • 2 10G SFP+ ports via AOC-URN2-I2XS (Intel® 82599ES)
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SAS

• 10 SAS3 ports support via optional Add-on Card

LAN • 2 10G SFP+ ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 5 USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video • 2 VGA ports (1 rear, 1 onboard)
Serial Port • 1 Serial header
System BIOS
Bios Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
Power Configuration • ACPI Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-119UAC2-R751-T
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.8" (707mm)
Gross Weight • 41 lbs (18.6 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
• 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays
Hot Swap • 10 Hot-swap 2.5" drive bays; 10 SATA3 (2 hybrid ports - 2 NVMe opt.)
System Cooling
Fans • 8 Heavy duty fans with optimal fan speed control
Air Shroud • 1 Air Shroud
Power Supply
  750W Redundant Power Supplies with PMBus
Total Output Power • 750W
Dimension
(W x H x L)
• 73.5 x 40 x 203 mm
Input • 100-127Vac / 9.5A Max / 50-60Hz
• 200-240Vac / 4.5A Max / 50-60Hz
+12V • Max: 62.5A / Min: 0A
12V SB • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification  • 80 Plus Platinum Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.





• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
