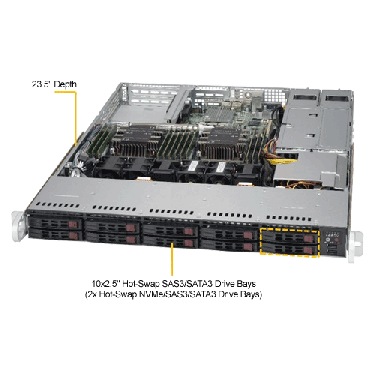

  • Supermicro 1U Rackmount Server SYS-1029P-WTRT-TopAngle
  • Supermicro 1U Rackmount Server SYS-1029P-WTRT-TopView
  • Supermicro 1U Rackmount Server SYS-1029P-WTRT-FrontView

Supermicro 1U Rackmount Server SYS-1029P-WTRT Scalable Processors NVME

Call for price.
SKU:SYS-1029P-WTRT

Quick Overview:

Key Features:
• Web Server,Firewall Apps | Corporate-Wins,DNS,Print,Login |

   Gateway, provisioning servers | Compact Network Applicance |
   Cloud Computing
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
• 2 PCI-E 3.0 x16 (FHHL) slots,
   1 PCI-E 3.0 x8 (LP) slots,
   1 PCI-E 3.0 x16 for Add-on-Module,
   1 PCI-E M.2 SSD slot
• 10 Hot-swap 2.5" SAS/SATA HDD bays (default 8 SATA3, 2 NVMe or SATA3)
• 2x 10GBase-T LAN ports via Intel® X722
• 1 VGA, 6 USB 3.0 (4 rear, 2 front)
• 2 SuperDOM (Disk on Module) ports
• 750W Redundant Power Supplies Platinum Level High-efficiency


Due to the complexity of integration, this product is sold as completely assembled systems only (with minimum 2 CPU, 4 DIMM and 4 NVMe). Please contact your Will Jaya sales rep for special requirements.

Details

Supermicro SuperServer SYS-1029P-WTRT
Product SKU
• SuperServer 1029P-WTRT (Black)
Motherboard
       Super X11DDW-NT
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s
• Support CPU TDP 70-165W with IVR
Cores • Up to 28 Cores with Intel® HT Technology
System Memory
Memory Capacity • 12 DIMM slots
• Up to 1.5TB ECC 3DS LRDIMM, 768GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C622 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • Dual LAN with 10Gbase-T from C622
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SATA

• 8 SATA3 (6 Gbps) ports and 2 NVMe/SATA3 hybrid ports

LAN • 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 6 USB 3.0 ports (4 rear, 2 front via header)
Video • 1 VGA port
DOM • 2 SuperDOM (Disk on Module) ports
System BIOS
Bios Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• NMI
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-116AC2-R706WB2
Dimension and Weight
Height • 17.2" (437mm)
Width • 1.7" (43mm)
Depth • 23.5" (597mm)
Gross Weight • 46 lbs (20.9kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• UID button
LED • Power LED
• HDD activity LED
• Network activity LEDs
• Universal Information (UID) LED
Expansion Slots
PCI-Express • 2 PCI-E 3.0 x16 (FHHL) slots
• 1 PCI-E 3.0 x8 (LP) slot
• 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
• 1 PCI-E M.2 SSD slot

Drive Bays
Hot Swap • 8 SATA3 (6Gbps) ports and 2 NVMe/SATA3 hybrid ports (connected to onboard storage controller)
Backplane
  • SAS/SATA HDD Backplane
System Cooling
Fans • 4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling
Power Supply
  700W/750W Redundant Power Supplies with PMBus
Total Output Power • 700W/750W
Dimension
(W x H x L)
• 54.5 x 40.25 x 320 mm
Input • 100 - 140Vac / 8 - 6A / 50-60Hz
• 200 - 240Vac / 4.5 - 3.8A / 50-60Hz
• 200 - 240Vdc / 4.5 - 3.8A (CCC Only)
+12V • Max: 58A / Min: 0.5A (100 - 140Vac)
• Max: 62A / Min: 0.5A (200 - 240Vac)
• Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
+5V sb • Max: 3A / Min: 0A
Output Type • Gold Finger Connector Mating with Molex 45984-4343
Certification • 80 Plus Platinum Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
