Supermicro SuperServer SYS-1029P-MTR
Product SKU |
|
|---|---|
| SYS-1029P-MTR | • SuperServer 1029P-MTR (Black) |
Motherboard |
|
|---|---|
| Super X11DPL-i | |
Processor/Cache |
|
|---|---|
| CPU | • Dual Socket P (LGA 3647) • Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s • Support CPU TDP 70-140W with IVR |
| Cores | • Up to 28 Cores with Intel® HT Technology |
System Memory |
|
|---|---|
| Memory Capacity |
• 8 DIMM slots • Up to 1TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz |
| Memory Type | • 2666/2400/2133MHz ECC DDR4 SDRAM |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® C621 chipset |
| SATA | • SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Connectivity | • Marvell 88E1512 PHY Gigabit Ethernet controller • Supports 1000BASE-T |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Graphics | • ASPEED AST2500 BMC |
Input/Output |
|
|---|---|
| SATA |
• 8 SATA3 (6Gbps) ports |
| LAN | • 2 RJ45 Gigabit Ethernet LAN ports • 1 RJ45 Dedicated IPMI LAN port |
| USB | • 2 USB 2.0 ports (rear) |
| Video | • 1 VGA port |
| Serial Port / Header | • 1 COM port (header) |
| DOM | • 2 SuperDOM (Disk on Module) ports |
System BIOS |
|
|---|---|
| Bios Type | • 256Mb SPI Flash EEPROM with AMI BIOS |
Management |
|
|---|---|
| Software |
• Intel® Node Manager • IPMI 2.0 • KVM with dedicated LAN • NMI • SSM, SPM, SUM • SuperDoctor® 5 • Watch Dog |
| Power Configuration | • ACPI / APM Power Management |
PC Health Monitoring |
|
|---|---|
| CPU |
• Monitors for CPU Cores, Chipset Voltages, Memory • 4+1 Phase-switching voltage regulator |
| Fan | • Fans with tachometer monitoring • Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors |
| Temperature | • Monitoring for CPU and chassis environment • Thermal Control for fan connectors |
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • CSE-113MFAC2-R608CB |
Dimension and Weight |
|
|---|---|
| Height | • 17.2" (437mm) |
| Width | • 1.7" (43mm) |
| Depth | • 19.98" (508mm) |
| Gross Weight | • 31.1 lbs (14.1 kg) |
| Available Color | • Black |
Front Panel |
|
|---|---|
| Buttons |
• Power On/Off button • System Reset button |
| LED |
• Power status LED • HDD activity LED • Network activity LEDs • Universal Information (UID) LED |
Expansion Slots |
|
|---|---|
| PCI-Express | • 1 PCI-E 3.0 x8 (FHHL) slot |
Drive Bays |
|
|---|---|

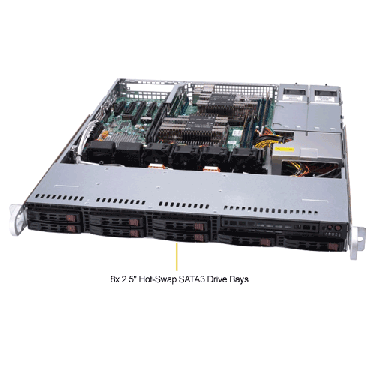

| Hot-swap | • 8 Hot-swap 2.5" SATA3 drive bays |
Peripheral Drives |
|
|---|---|
| Optional |
• 1 Slim DVD-ROM drive (optional) • PCIe/SATA M.2 drive (optional) |
System Cooling |
|
|---|---|
| Fans | • 4x 4cm 22.5K RPM middle cooling fans |
Power Supply |
|
|---|---|
| 600W Redundant Power Supplies | |
| Dimension (W x H x L) |
• 54.5 x 40.25 x 220 mm |
| Input | • 90-264V, 50-60Hz, 7.5 - 2.5A |
| +12V | • Max: 50A / Min: 0.5A |
| +5Vsb | • Max: 3A / Min: 0A |
| Output Type | • Input: IEC 320 C-14 • Output: Gold Finger |
| Certification | • 80 Plus Platinum Certified |
Operating Environment / Compliance |
|
|---|---|
| RoHS | • RoHS Compliant |
Environmental Spec.
|
• Operating Temperature:
10°C to 35°C (50°F to 95°F)
|
