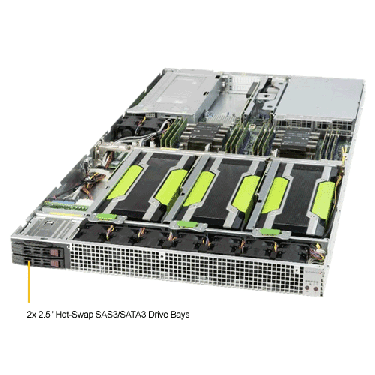

  • Supermicro 1U Rackmount Server SYS-1029GQ-TRT-TopAngle
  • Supermicro 1U Rackmount Server SYS-1029GQ-TRT-TopView
  • Supermicro 1U Rackmount Server SYS-1029GQ-TRT-FrontView

Supermicro 1U Rackmount Server SYS-1029GQ-TRT Scalable Processors

Call for price.
SKU:SYS-1029GQ-TRT

Quick Overview:

Key Features:
• Supports up to 4 GPUs in 1U
• Support Active/Passive GPUs
• GPU health monitoring with Fan speed control
• Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Up to 1.5TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 12 DIMM slots
• 4 PCI-E 3.0 x16 (FHFL) slots,
   2 PCI-E 3.0 x16 (LP) slots
• 2 Hot-swap 2.5" SAS/SATA drive bays, 2 Internal 2.5" drive bays
• 2x 10GBase-T LAN ports via Intel X540
• 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
• 2000W Redundant Power Supplies Titanium Level (96%)

Details

Supermicro SuperServer SYS-1029GQ-TRT
Product SKU
• SuperServer 1029GQ-TRT (Black)
Motherboard
    Super X11DGQ
Processor/Cache
CPU • Dual Socket P (LGA 3647)
• Intel® Xeon® Scalable Processors, 3 UPI up to 10.4GT/s
• Support CPU TDP 70-165W
Cores • Up to 28 Cores with Intel® HT Technology
GPU /
Coprocessor Support
• Please refer to: Compatible GPU list
System Memory
Memory Capacity • 12 DIMM slots
• Up to 1.5TB ECC 3DS LRDIMM, 1.5TB ECC RDIMM, DDR4 up to 2666MHz
Memory Type • 2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset • Intel® C621 chipset
SATA • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity • Intel® X540 Dual Port 10GBase-T
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics • ASPEED AST2500 BMC
Input/Output
SATA

• 4 SATA3 (6Gbps) ports

LAN • 2 RJ45 10GBase-T ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
Video • 1 VGA port
Serial Header • 1 Fast UART 16550 header
System BIOS
Bios Type • AMI 32Mb SPI Flash ROM
Management
Software • Intel® Node Manager
• IPMI 2.0
• KVM with dedicated LAN
• SSM, SPM, SUM
• SuperDoctor® 5
• Watch Dog
Power Configuration • ACPI / APM Power Management
PC Health Monitoring
CPU • Monitors for CPU Cores, Chipset Voltages, Memory
• 4+1 Phase-switching voltage regulator
Fan • Fans with tachometer monitoring
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for fan connectors
Chassis
Form Factor • 1U Rackmount
Model CSE-118GQETS-R2K05P2
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 35.2" (894mm) / 39.3" (997mm) with rails
Gross Weight • 58 lbs (21.8 kg)
Available Color • Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LED • Power LED
• Hard drive activity LED
• Network activity LEDs
• System Overheat LED / Fan fail LED / UID LED
Expansion Slots
PCI-Express • 4 PCI-E 3.0 x16 (FHFL) slots
• 2 PCI-E 3.0 x16 (LP) slots
Drive Bays
Hot-swap • 2 Hot-swap 2.5" SAS/SATA drive bays
Fixed • 2 Internal 2.5" drive bays
System Cooling
Fans • 9 Heavy duty 4cm counter-rotating fans with air shroud & optimal fan speed control
Power Supply
  2000W Redundant Power Supplies with PMBus
Total Output Power • 1000W/1800W/1980W/2000W
Dimension
(W x H x L)
• 73.5 x 40 x 265 mm
Input • 100-120Vac / 12.5-9.5A / 50-60Hz
• 200-220Vac / 10-9.5A / 50-60Hz
• 220-230Vac / 10-9.8A / 50-60Hz
• 230-240Vac / 10-9.8A / 50-60Hz
• 200-240Vac / 11.8-9.8A / 50-60Hz (UL/cUL only)
+12V • Max: 83.3A / Min: 0A (100-120Vac)
• Max: 150A / Min: 0A (200-220Vac)
• Max: 165A / Min: 0A (220-230Vac)
• Max: 166.7A / Min: 0A (230-240Vac)
• Max: 166.7A / Min: 0A (200-240Vac) (UL/cUL only)
12Vsb • Max: 2.1A / Min: 0A
Output Type • 25 Pairs Gold Finger Connector
Certification • 80 Plus Titanium Level
Operating Environment / Compliance
RoHS • RoHS Compliant

Environmental Spec.





• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
