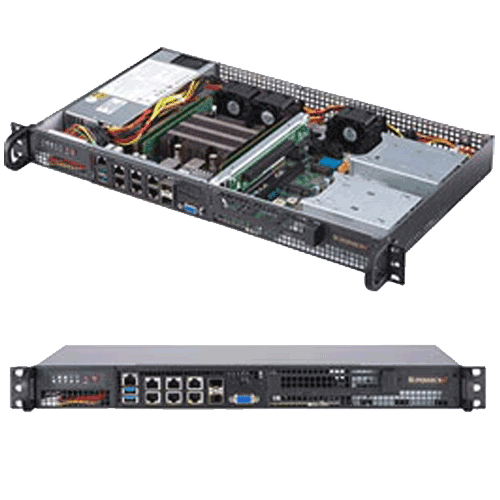

Supermicro 1U Rackmount Embedded Superserver SYS-5019D-FN8TP

More Views

  • Supermicro 1U Rackmount Embedded Superserver SYS-5019D-FN8TP

Supermicro 1U Rackmount Embedded Superserver SYS-5019D-FN8TP

Call for price.
SKU:SYS-5019D-FN8TP

Quick Overview:

Key Features:
• Intel® Xeon® processor D-2146NT
• 8 Cores, 16 Threads
• Up to 512GB of memory
• 1 Internal 3.5" or 4 Internal 2.5" drive bays
• 200W Low-noise AC-DC power supply

Details

Supermicro Embedded SuperServer SYS-5019D-FN8TP

Product SKU
SYS-5019D-FN8TP • SuperServer 5019D-FN8TP (Black)
Motherboard
  • Super X11SDV-8C-TP8F
Processor/Cache
CPU • Intel® Xeon® processor D-2146NT, CPU TDP support 80W8 Cores, 16 Threads
System Memory
Memory Capacity • Up to 512GB DDR4 ECC LRDIMM
• Up to 256GB DDR4 ECC/non-ECC RDIMM
• 4 DIMM slots
Memory Type

• 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC/Non-ECC RDIMM
DIMM Sizes

• 128GB, 64GB, 32GB, 16GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
SATA • SATA3 (6Gbps) ports via SoC controller
Network Controllers • Dual 10G SFP+ via SoC
• Quad 1GbE with Intel I350-AM4
• Dual 10GBase-T with Intel X557
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• Aspeed AST2500 BMC
Input/Output
SATA • 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
LAN • 2 10G SFP+ ports
• 4 RJ45 1GbE LAN ports
• 1 RJ45 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear)
VGA • 1 VGA port
Others






















 • TPM 2.0 header
Chassis
Form Factor • 1U Rackmount
Model • CSE-505-203B
Dimension and Weight
Width • 17.2" (437mm) / 25.8" (655mm) - pkg.
Height • 1.7" (43mm) / 6.1" (155mm) - pkg.
Depth • 9.8" (249mm) / 18.3" (465mm) - pkg.
Gross Weight • 12 lbs (5.44 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• Network activity LEDs
• System Information LED
• Information LED (temp., status)
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x8 slot
• 1 Mini-PCI-E with mSATA Support
M.2

• 1 M.2 slot M key for SSD, 2242/8
• 1 M.2 B Key for SSD/ WAN card
Drive Bays
Internal

• 1 Internal 3.5" or 4 Internal 2.5" drive bays
System Cooling
Fans

• 3x 40x28mm 4-PIN PWM fans
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
 • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System BIOS
BIOS Type

• 128Mb SPI Flash with AMI BIOS
BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup
Operating Environment
RoHS

• RoHS Compliant
Environmental Spec. • RoHS Compliant Environmental Spec. Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
