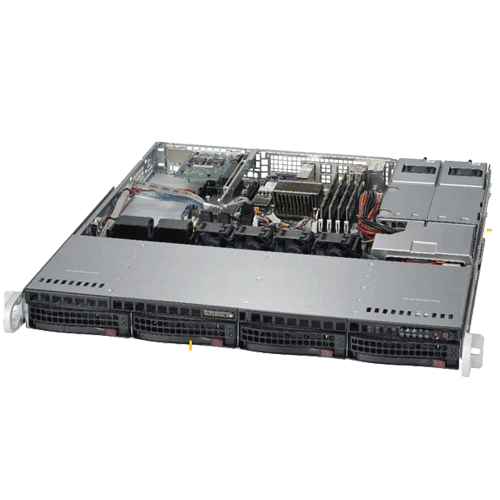

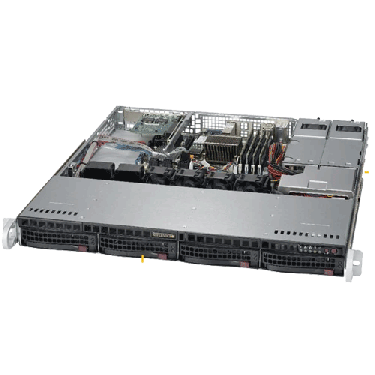

  • SYS-5018D-MHR7N4P - Angle

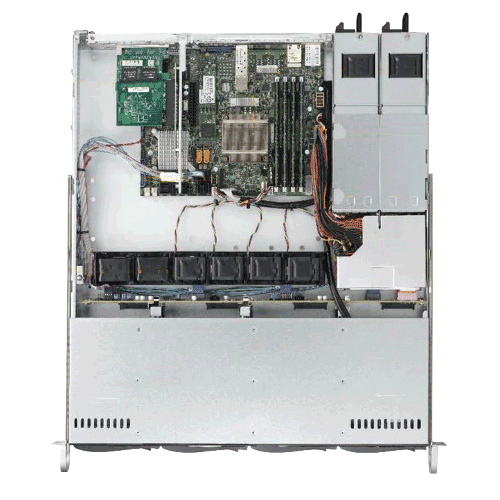

  • SYS-5018D-MHR7N4P - Top

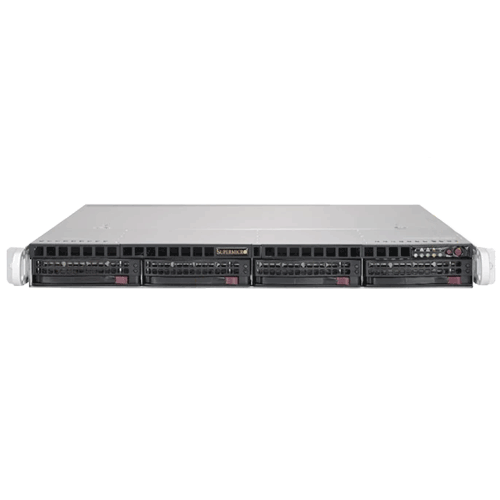

  • SYS-5018D-MHR7N4P - Front
  • SYS-5018D-MHR7N4P - Rear

Supermicro 1U Rackmount Embedded SuperServer SYS-5018D-MHR7N4P

$0.00
SKU:SYS-5018D-MHR7N4P

Quick Overview:

Key Features:
• Intel® Xeon® processor D-1537
• System on Chip
• Supports up to 128GB of memory
• 4 Hot-swap 3.5" SATA3/SAS2 drive bays
• 3x 40x28mm PWM fans for CPU
• 400W High-efficiency redundant short depth Power Supplies

Details

Supermicro 1U Rackmount Embedded SuperServer SYS-5018D-MHR7N4P

Product SKU
SYS-5018D-MHR7N4P • SuperServer 5018D-MHR7N4P (Silver)
Motherboard
  • Super X10SDV-7TP4F
Processor/Cache
CPU • Intel® Xeon® processor D-1537, 1.7GHz-2.3GHz; CPU TDP support 35W
• FCBGA 1667
Cores/Cache • 8 Cores, 16 Threads / 12MB
System Memory
Memory Capacity • 4x DDR4 DIMM sockets
• 4x DDR4 DIMM sockets Supports up to 128GB DDR4 ECC RDIMM
• Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type

• 2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes

• 32GB, 16GB, 8GB, 4GB
Memory Voltage

• 1.2 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • System on Chip
SATA/SAS • SoC controller for 4 SATA3 (6Gbps) ports; RAID 0,1,5,10 RSTe
• Broadcom 2116 (IT mode) SW controller for 16 SATA3 (6Gbps) ports; SAS2 and SATA3
Network Controllers • Dual 10G SFP+ from D-1500 SoC
• Dual 1GbE with Intel I210
IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics

• Aspeed AST2400
Input/Output
LAN • 2x 10G SFP+ LAN ports
• 2x 1GbE LAN ports
• 1 Dedicated IPMI LAN port
USB • 2 USB 3.0 ports (rear),
• 5 USB 2.0 (4 via headers and 1 Type A)
Video • 1 VGA port
DOM • 2 SuperDOM (Disk on Module) power connectorsXXXXX
TPM














 • TPM 2.0 header
Chassis
Form Factor • 1U Rackmount
Model • CSE-813MFTQC-R407CB
Dimension and Weight
Width • 17.2" (437mm)
Height • 1.7" (43mm)
Depth • 19.85" (503mm)
Gross Weight • 33 lbs (14.97kg)
Available Colors • Silver
Front Panel
Buttons

• Power On/Off button
LEDs

• Network activity LEDs
Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x8 Full-height slot
• M.2 PCIe 3.0 x4, M Key 2242/2280/22110
• Mini-PCIe with mSATA support

Drive Bays
Internal

• 4 Hot-swap 3.5" SATA3/SAS2 drive bays (optional cable needed)
System Cooling
Fans

• 4 fans (default), may install up to 6 fans
Power Supply
  400W 1U Redundant Power Supplies with PMbus
Total Output Power • 400W
Dimension
(W x H x L)
 • (W x H x L) 54.5 x 40 x 220 mm
Input • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
• 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V • Max: 33A / Min: 0.5A
+5Vsb • Max: 3A / Min: 0A
Output Type • Gold Finger Connector Mating with Molex 45984-4343
Certification • Platinum Level Certified
System BIOS
BIOS Type

• 128Mb SPI Flash with AMI BIOS
BIOS Features

• PCI 3.0
• ACPI 5.0
• USB Keyboard support
• Hardware BIOS Virus protection
• SMBIOS 2.8
• UEFI 2.4
• RTC (Real Time Clock) Wakeup
Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
