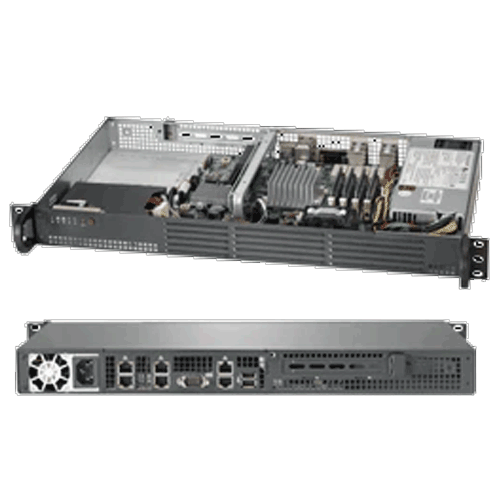

Supermicro 1U Rackmount Embedded SuperServer SYS-5017K-N6

More Views

  • Supermicro 1U Rackmount Embedded SuperServer SYS-5017K-N6

Supermicro 1U Rackmount Embedded SuperServer SYS-5017K-N6

Call for price.
SKU:SYS-5017K-N6

Quick Overview:

Key Features:
• Single socket FCBGA 1284
• Support Intel® Pentium® B915C processor
• Intel Communication Chipset 8903
• Supports up to 32 GB of memory
• 1x 3.5" Fixed SATA2 drive bay
• 200W Low-noise power supply

Details

Supermicro 1U Rackmount Embedded SuperServer SYS-5017K-N6

Product SKU
SYS-5017K-N6 • SuperServer 5017K-N6 (Black)
Motherboard
  • Super X9SKV-B915
Processor/Cache
CPU • Intel® Pentium® B915C processor (15W, 1.5 GHz.3M, formerly known as Gladden)
• FCBGA 1284
System Memory
Memory Capacity • 4x 204-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC SODIMM
Memory Type

• 1600/1333MHz ECC DDR3 SDRAM 72-bit, 204-pin gold-plated DIMMs
DIMM Sizes

• 8GB, 4GB, 2GB
Memory Voltage

• 1.5 V
Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel Communication Chipset 8903
SATA • Intel 8903
USB

• Intel 8903
Network Controllers • Dual LAN via Intel® i210AT Gigabit Ethernet
• Quad LAN 2 pair bypass with Intel® i350-AM4 Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Input/Output
SATA • 2x SATA2 (3Gbps) ports
LAN • 2x RJ45 Gigabit Ethernet LAN ports
• 2x RJ45 Gigabit Ethernet LAN ports 4x RJ45 Gigabit Ethernet LAN ports
• Programmable GbE LAN Bypass mode
USB • 6x USB 2.0 ports total (2 rear, 4 via header)
Serial Port/Header


















 • 2x serial ports (1 rear, 1 header)
Chassis
Form Factor • 1U Rackmount
Model • CSE-504-203B
Dimension and Weight
Width • 17.2" (437mm)
Height • 1.7" (43mm)
Depth • 9.8" (249mm)
Gross Weight • 12 lbs (5.44 kg)
Available Colors • Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs

• Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slots
PCI-Express

• 1x PCI-E 2.0 x8 slot via riser**
Drive Bays
HDD

• 1x 3.5" fixed SATA2 drive bays (or 2x 2.5" optional)*
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
 • 8.0 Amp (max.)
+5V standby • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System BIOS
BIOS Type

• 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI

Operating Environment/Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
