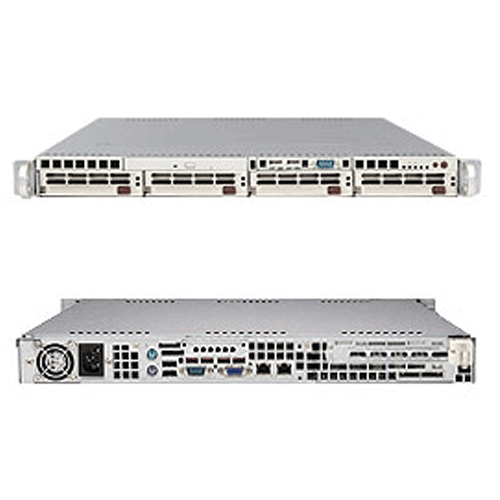

Supermicro 1U Rackmount Dual Core Server SYS-6014V-M4

Call for price.

SKU:SYS-6014V-M4

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support, up to 3.60 GHz, 800 MHz FSB
• Up to 12GB DDR 333 SDRAM (or) Up to 24GB DDR 266 SDRAM
• 1 x 64-bit 133MHz Full-height / Half-length PCI-X Slot
• 2x Dual Intel® 82541GI Gigabit Ethernet Controllers
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 420W Power Supply
• 2x Front Side USB 2.0 Ports and 1x Front Sider Serial Port

Description

Details

SuperServer SYS-6014V-M4 / SYS-6014V-M4B 1U Rackmount

Supermicro SYS-6014V-M4 / SYS-6014V-M4B 1U Rackmount with 420W Power Supply,Intel® E7320 chipset, 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays, using Supermicro
Super X6DVA-4G Motherboard and SC813MS-420C Rackmount Chassis

Product SKU
SYS-6014V-M4	• SuperServer 6014V-M4 (Beige)
SYS-6014V-M4B	• SuperServer 6014V-M4B (Black)

Motherboard
	Super X6DVA-4G

Processor/Cache
CPU	• Dual 604-pin FC-mPGA4 Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz • Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz • Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus	• 800 MHz system bus

System Memory
Memory Capacity	• Six 184-pin DIMM sockets • Supports up to 12 GB DDR 333MHz memory or • Supports up to 24 GB DDR 266MHz memory • Dual-channel memory bus • Memory must be populated in pairs
Memory Type	• DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes	• 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage	• 2.5 V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® E7320 chipset • MCH + 6300ESB + PXH +82541GI
SATA	• 6300ESB (Hance Rapids) SATA Controller (2x Drive support) • 2x SATA Ports • RAID 0, 1, JBOD support
SCSI	• LSI 1020 U320 SCSI Controller • Single-Channel Ultra320 SCSI • Host RAID 1 support
IPMI	• Support for Intelligent Platform Management Interface v.2.0 (Optional)
Network Controllers	• Dual Intel® 82541GI Single Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics	• ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O	• Winbond 83627HF chip

Expansion Slots
PCI-Express / PCI-X	• 1x 64-bit PCI-X 133MHz slot (Riser card required)

Input/Output
IDE	• Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
LAN	• 2x RJ45 LAN port
USB	• 2x USB rear ports • 2x USB internal headers • USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 2 Fast UART 16550 serial ports
Parallel Port	• 1 ECP/EEP parallel port header

System Bios
Bios Type	• 8Mb Flash EEPROM with AMI® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • APM 1.2 • DMI 2.1 • ACPI 1.0

Chassis
Form Factor	• 1U Rackmount
Model	• SC813MS-420C

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 19.8" (503mm)
Weight	• 38 lbs (17.2kg)
Available Color	• Beige,Black

Front Panel
Buttons	• Power On/Off button • System Reset button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED
Ports	• 2x USB Ports (USB 2.0 Ready) • 1x Serial COM Port

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays

Peripheral Drives
CD-ROM	• TEAC Slim 24x CD-ROM drive

SCSI Backplane
	• Single Channel SCSI Backplane w/ SAF-TE

System Cooling
Fans	• 4x 4cm fans

Power Supply
	Fixed 420W AC power supply with PFC [ 24-pin, (4-pin, 8-pin=12V) ]
AC Voltage	• 100 - 240V, 60-50Hz, 7 Amp
DC Output	• 5V + 3.3V ≤ 160W • 12V1 + 12V2 + 12V3 ≤ 32 Amp
+5V	• 30.0 Amp
+5V stand by	• 2.0 Amp
+12V1	• 15 Amp
+12V2	• 15 Amp
+12V3	• 18 Amp
-12V	• 1.0 Amp
+3.3V	• 20 Amp

Regulatory (Power Supply)
Safety / EMC	• USA - UL Listed, FCC • Canada - CUL Listed • Germany - TUV Certified • Europe / CE Mark • EN 60950/IEC 60950-Compliant

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby • CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V • Adjustable CPU clock frequency ratio settings (via BIOS)
FAN	• Total of six 4-pin fan headers • 6x fans with status monitoring • Status monitor with firmware/software on/off control • Low noise fan speed control • Pulse Width Modulated (PWM) fan connector
Temperature	• Monitoring for CPU, chassis, environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support
LED	• CPU Overheat LED • System Overheat LED • Suspend-state indicator LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC
