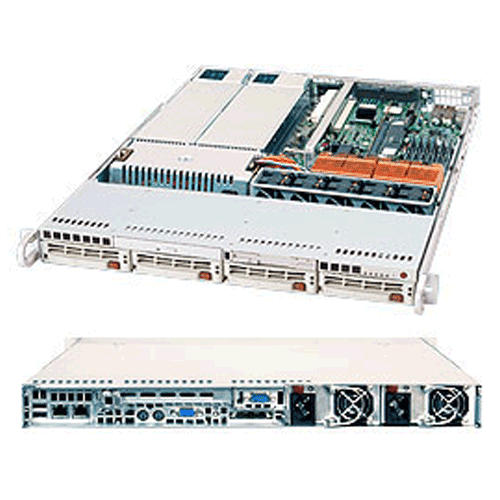

Supermicro 1U Rackmount Dual Core Server SYS-6014P-TR

Call for price.

SKU:SYS-6014P-TR

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 12GB DDR 333 SDRAM (or) Up to 24GB DDR 266 SDRAM
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 100MHz Full-height /
length PCI-X Slot
• 2 x Intel® 82546GB Gigabit Ethernet Ports
• Zero Channel RAID Support
• 4 x 3.5" SATA Hot-swap Drive Bays
• 560W Hot-swap Redundant Power Supply with I2C for Remote Management

Description

Details

SuperServer SYS-6014P-TR / SYS-6014P-TRB 1U Rackmount

Supermicro SYS-6014P-TR / SYS-6014P-TRB 1U Rackmount with 560W Hot-swap Redundant Power Supply,Intel® E7520 chipset, 4x 3.5" Hot-swap SATA drive bays, using Supermicro
Super X6DHP-TG Motherboard and SC814T+-R560 Rackmount Chassis

Product SKU
SYS-6014P-TR	• SuperServer 6014P-TR (Beige)
SYS-6014P-TRB	• SuperServer 6014P-TRB (Black)

Motherboard
	Super X6DHP-TG

Processor/Cache
CPU	• Dual 604-pin FC-mPGA4 Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz • Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz • Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus	• 800 MHz system bus
OS Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Six 184-pin DIMM sockets • Supports up to 12 GB DDR 333MHz memory or • Supports up to 24 GB DDR 266MHz memory • Dual-channel memory bus • Memory must be populated in pairs
Memory Type	• DDR333/266MHz Buffered (Registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes	• 256MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage	• 2.5 V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® E7520 chipset • MCH + ICH5R + PXH +82546GB
SATA	• ICH5R Controller for 2 SATA ports • RAID 0, 1, JBOD support
SATA	• Marvell 88SX6081 4-port SATA Controller with 3rd-Party Adaptec AIC-8110(4x drive) • RAID 0, 1, JBOD support
Zero Channel RAID	• Support for Zero-Channel RAID • (Card not included) • RAID 0, 1, 10, 5, JBOD
IPMI	• Support for Intelligent Platform Management Interface v.2.0 (Optional [1U: AOC-1UIPMI-B])
Network Controllers	• Intel® 82546GB Dual Port Gigabit Controller • Supports 10Base-T, 100Base-TX, 1000Base-T, RJ45 output
Graphics	• ATI Rage XL SVGA PCI video controller with 8MB of video memory
Super I/O	• National 87427 chip
Clock Generator	• 409B

Input/Output
Serial ATA	• Up to 4 SATA hard drives supported
IDE	• Dual EIDE channels support up to four UDMA/ IDE devices • Supports UDMA Mode 5 and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN port
USB	• 2x USB rear ports • 1x USB internal headers • USB 2.0 / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 2 Fast UART 16550 serial headers

Chassis
Form Factor	• 1U Rackmount
Model	• SC814T+-R560

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 26.8" (681mm)
Weight	• 46 lbs (20.9kg)
Available Color	• Beige,Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power / Fail LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED
Ports	• N/A

Expansion Slots
PCI-Express / PCI-X	• 1 x Universal (SXB-E) slot for [1 (x8) PCI-E Slot] OR [1x 64-bit PCI-X 100MHz slot] • Supports Full-length add-on cards

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap SATA drive bays

Peripheral Drives
Floppy	• TEAC 3.5" 1.44MB Slim Floppy Drive
CD-ROM	• Panasonic Slim DVD-ROM drive

Hard Drive Backplane
	• 1x SAS-814 1U SATA Backplane

System Cooling
Fans	• 5x 4cm 12,000 RPM Nidec dual blade counter-rotating fans

Power Supply
	560W (1 + 1) Redundant AC power supply with PFC [ 24-pin, (4-pin, 8-pin) = 12V ]
AC Voltage	• 100 - 240V, 50 - 60Hz, 10 - 5 Amp
DC Output	• 5V + 3.3V ≤ 160W
+5V	• 30.0 Amp
+5V stand by	• 4.0 Amp
+12V	• 46 Amp
-12V	• 1.0 Amp
+3.3V	• 21 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +3.3V, +5V, ±12V, +3.3V Standby • CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
FAN	• Total of five proprietary fan headers supporting up to 10 fans • Status monitor for speed control • Low noise fan speed control
Temperature	• Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED • Suspend-state indicator LED
Other Features	• Chassis intrusion detection • Chassis intrusion header • SDDC support

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • BIOS rescue hot key
