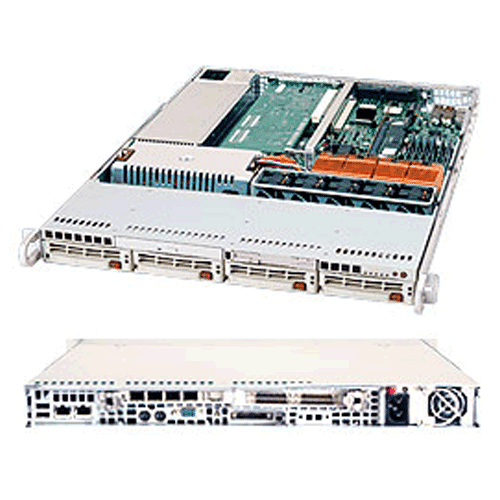

Supermicro 1U Rackmount Dual Core Server SYS-6014P-82B

Call for price.

SKU:SYS-6014P-82B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR2 400MHz SDRAM
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz
Full-height / length PCI-X Slot
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 100MHz
Full-height / length PCI-X Slot
• 2 x Intel® 82546GB Gigabit Ethernet Ports
• Zero Channel RAID Support
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 560W Cold-swap Power Supply with I2C for Remote Management

Description

Details

SuperServer SYS-6014P-82 / SYS-6014P-82B 1U Rackmount

Supermicro SYS-6014P-82 / SYS-6014P-82B 1U Rackmount with 560W Cold-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays, using
Supermicro Super X6DHP-8G2 Motherboard and SC814S+-560 Rackmount Chassis

Product SKU
SYS-6014P-82	• SuperServer 6014P-82 (Beige)
SYS-6014P-82B	• SuperServer 6014P-82B (Black)

Motherboard
	Super X6DHP-8G2

Processor/Cache
CPU	• Dual 604-pin FC-mPGA4 Sockets • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: • Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz • Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz • Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus	• 800 MHz system bus
Operating System Software	• Supports 64-bit Operating Systems • Supports 32-bit Operating Systems

System Memory
Memory Capacity	• Eight 240-pin DIMM sockets • Supports up to 16 GB DDR2 400MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support
Memory Type	• DDR2 400MHz buffered (registered) ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 512 MB, 1GB, 2GB
Memory Voltage	• 1.8V only
Error Detection	• Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Single Device Data Correction (SDDC)

On-Board Devices
Chipset	• Intel® E7520 chipset • MCH + ICH5R + PXH +82546GB
SCSI	• Adaptec AIC-7902 Controller • Dual-Channel Ultra320 SCSI • Host RAID 0, 1, 10, JBOD support
Zero Channel RAID	• Support for Zero-Channel RAID • Optional Card Not Included
IPMI	• Support for Intelligent Platform Management Interface v.2.0 (Optional [1U: AOC-1UIPMI-B])
Network Controllers	• Intel® 82546GB Dual Port Gigabit Controller • Supports RJ45 output
Graphics	• ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O	• National 87427 chip

Expansion Slots
PCI-Express / PCI-X	• 1 x Universal (SXB-E) slot for [1 (x8) PCI-E Slot] OR [1x 64-bit PCI-X 133MHz slot] • 1 x Universal (SXB-E) slot for [1 (x8) PCI-E Slot] OR [1x 64-bit PCI-X 100MHz slot] • Supports Full-length add-on cards

Input/Output
SCSI	• External High Density SCSI Port
IDE	• Dual EIDE channels support up to four UDMA/ IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy	• 1 Floppy controller; 1.44 MB
LAN	• 2x RJ45 LAN port
USB	• 2x USB rear ports • 2x USB internal headers • USB 2.0 Compliant / 1.1 Compliant
VGA	• 1x VGA Port
Keyboard / Mouse	• PS/2 keyboard and mouse ports
Serial Port / Header	• 2 Fast UART 16550 serial ports

Chassis
Form Factor	• 1U Rackmount
Model	• SC814S+-560

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 26.8" (681mm)
Weight	• 43 lbs (19.5kg)
Available Color	• Beige,Black

Front Panel
Buttons	• Power On/Off button • UID button
LEDs	• Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • UID LED
Ports	• N/A

Drive Bays
Hot-swap	• 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays

Peripheral Drives
Floppy	• TEAC 3.5" 1.44MB Slim Floppy Drive
DVD-ROM	• Panasonic Slim 8x DVD-ROM drive

SCSI Backplane
	• 1x SCA814S 1U SCSI Backplane w/ SAF-TE

System Cooling
Fans	• 5x 4cm 12,000 RPM Nidec dual blade fans

Power Supply
	560W Cold-swap AC power supply w/ PFC [ 24-pin, (8-pin=12V) ]
AC Voltage	• 100 - 240V, 60-50Hz, 10-5 Amp
DC Output	• 5V + 3.3V ≤ 160W
+5V	• 30 Amp
+5V stand by	• 4.0 Amp
+12V	• 42 Amp
-12V	• 1.0 Amp
+3.3V	• 21 Amp

PC Health Monitoring
CPU	• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby & VBAT • CPU Core 4-Phase-switching voltage regulator with auto-sense
FAN	• Total of five proprietary fan connectors supporting 10 fans • 10x fans with Tachometer status monitoring • Status monitor for speed control
Temperature	• Monitoring for CPU, chassis environment • CPU thermal trip support • Thermal control for 10x fan connectors • Thermal Monitor 2 (TM2) support
LED	• CPU / System Overheat LED
Other Featue	• Chassis intrusion detection • Chassis intrusion header • SDDC support

System Bios
Bios Type	• 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features	• Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.3 • PCI 2.2 • ACPI 1.0 • USB Keyboard support • Fan Speed Control

System Bios

Bios Type

• 8Mb Flash EEPROM with Phoenix® BIOS

Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.3
• PCI 2.2
• ACPI 1.0
• USB Keyboard support
• Fan Speed Control
