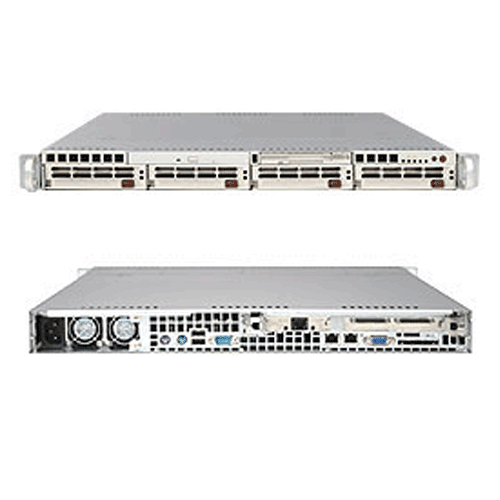

Supermicro SYS-6014H-X82 / SYS-6014H-X8B 1U Rackmount with 500W Cold-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays, using Supermicro
Super X6DHR-X8G
Motherboard and SC813S-5000 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014H-X8 | • SuperServer 6014H-X8 (Beige) |
| SYS-6014H-X8B | • SuperServer 6014H-X8B (Black) |
Motherboard |
|
|---|---|
| Super X6DHR-X8G | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 184-pin DIMM sockets • Supports up to 16 GB DDR 333 MHz memory or • Supports up to 32 GB DDR 266 MHz memory • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset |
| SCSI | • Adaptec AIC-7902 Controller |
| RAID | • Support for Zero-Channel RAID with Supermicro All-In-One-ZCR Card: AOC-SOZCR1 |
| IPMI | • Support for Intelligent Platform Management Interface v.2.0 (Optional) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • Winbond 83627HF chip |
Expansion Slots |
|
|---|---|
| PCI-X | • 2 x 64-bit PCI-X 133MHz slot |
Input/Output |
|
|---|---|
| SCSI | • External High Density Connector (Rear) |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices • Supports UDMA Mode 5, PIO Mode 4, and ATA/100 |
| Floppy | • 1 Floppy controller; 1.44 MB, 2.88 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 2 Fast UART 16550 serial ports
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC813S-500 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 38 lbs (17.2kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat LED |
| Ports | • 2x USB Ports (USB 2.0 Ready) |
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
SCSI Backplane |
|
|---|---|
• 1x SCA813S 1U SCSI Backplane w/ SAF-TE |
|
System Cooling |
|
|---|---|
| Fans | • 2x 10cm blower fans |
Power Supply |
|
|---|---|
| Cold-swappable 500W AC power supply module w/ PFC [ 20-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 10-5 Amp |
| DC Output | • 5V + 3.3V ≤ 160W • 12V Total ≤ 39 Amp |
| +5V | • 21.0 Amp |
| +5V stand by | • 2.0 Amp |
| +12V1 | • 15 Amp |
| +12V2 | • 15 Amp |
| +12V3 | • 18 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby |
| FAN | • Total of five 3-pin fan headers • 5x fans with status monitoring • Status monitor with firmware/software on/off control • Fan speed control |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support • Thermal Monitor 2 support |
| LED | • CPU Overheat LED |
| Other Featue | • Chassis intrusion detection • Chassis intrusion header • SDDC support |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • Plug and Play (PnP)
|
