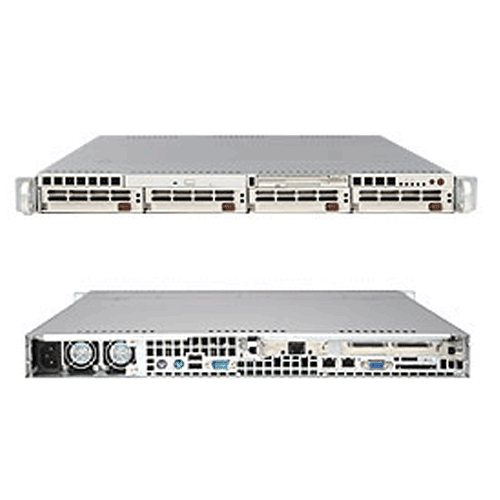

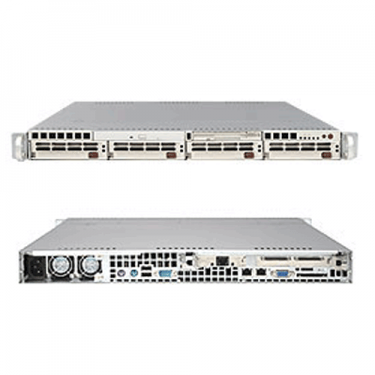

Supermicro SYS-6014H-T / SYS-6014H-TB 1U Rackmount with 500W Cold-swap Power Supply,Intel® E7520 chipset,4x 3.5"SATA Hot-swap drive bays, using Supermicro
Super X6DHR-TG
Motherboard and SC813T-500 Rackmount Chassis
Product SKU |
|
|---|---|
| SYS-6014H-T | • SuperServer 6014H-T (Beige) |
| SYS-6014H-TB | • SuperServer 6014H-TB (Black) |
Motherboard |
|
|---|---|
| Super X6DHR-TG | |
Processor/Cache |
|
|---|---|
| CPU | • Dual 604-pin FC-mPGA4 Sockets |
| System Bus | • 800 MHz system bus |
System Memory |
|
|---|---|
| Memory Capacity |
• Eight 184-pin DIMM sockets • Supports up to 32GB DDR 266MHz or up to 16GB DDR 333MHz memory • Dual-channel memory bus • Dual-channel memory bus • Memory must be populated in pairs • Single-rank modules are recommended for 6+ DIMM support |
| Memory Type | • DDR 333/266MHz buffered (registered) ECC SDRAM, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256MB, 512MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 Single Device Data Correction (SDDC) |
On-Board Devices |
|
|---|---|
| Chipset | • Intel® E7520 chipset |
| SATA | • ICH5R SATA 2-port Controller |
| SATA | • Marvell® 4-port SATA Controller |
| Zero-Channel SATA | • Supports RAID 0, 1, 5, 10, JBOD |
| IPMI | • Support for Intelligent Platform
Management Interface v.2.0 • (Optional: Card not included) |
| Network Controllers | • Intel® 82546GB Dual Port Gigabit Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| Graphics | • ATI Rage XL SVGA PCI video controller with 8 MB of video memory |
| Super I/O | • Winbond 83627HF chip |
| Clock Generator | • ICS9325208BG |
Expansion Slots |
|
|---|---|
| PCI-Express / PCI-X |
• 2 x Universal (SXB-E) slots
[ 2 (x8) PCI-Express Slots ] OR [ 1x 64-bit PCI-X 133MHz slot and 1x 64-bit PCI-X 100MHz slot] |
Input/Output |
|
|---|---|
| Serial ATA | • Up to Four SATA hard drives supported |
| IDE | • Dual EIDE channels support up to four UDMA IDE devices |
| Floppy | • 1 Floppy controller; 1.44 MB |
| LAN | • 2x RJ45 LAN port |
| USB | • 2x USB rear ports |
| VGA | • 1x VGA Port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Port / Header | • 1 Fast UART 16550 serial ports / 1 header
|
Chassis |
|
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC813S-500 |
Dimension and Weight |
|
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 25.6" (650mm) |
| Weight | • 38 lbs (17.2kg) |
| Available Color | • Beige,Black |
Front Panel |
|
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED • Hard Drive Activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED |
| Ports | • 2x USB & DB9 COM port tray (Optional - in place of floppy drive) |
Drive Bays |
|
|---|---|
| Hot-swap | • 4x 3.5"SATA Hot-swap drive bays |
Peripheral Drives |
|
|---|---|
| Floppy | • TEAC 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM | • TEAC Slim 24x CD-ROM drive |
SATA Backplane |
|
|---|---|
• 1x 1U Serial ATA backplane |
|
System Cooling |
|
|---|---|
| Fans | • 2x 10cm blower fans |
Power Supply |
|
|---|---|
| Cold-swappable 500W AC power supply module w/ PFC [ 20-pin, (4-pin, 8-pin) = 12V ] | |
| AC Voltage | • 100 - 240V, 60-50Hz, 10 Amp |
| DC Output | • 5V + 3.3V ≤ 160W |
| +5V | • 30.0 Amp |
| +5V stand by | • 2.0 Amp |
| +12V1 | • 15 Amp |
| +12V2 | • 15 Amp |
| +12V3 | • 18 Amp |
| -12V | • 1.0 Amp |
| +3.3V | • 21 Amp |
PC Health Monitoring |
|
|---|---|
| CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +5V Standby, +3.3V Standby, & VBAT |
| FAN | • Total of five 3-pin fan headers • Status monitor for speed control |
| Temperature | • Monitoring for CPU, chassis, environment • CPU thermal trip support • Thermal Monitor 2 (TM2) Support |
| LED | • CPU / System Overheat LED |
| Other Featue | • Chassis intrusion detection |
System Bios |
|
|---|---|
| Bios Type | • 8Mb Flash EEPROM with Phoenix® BIOS |
| Bios Features | • USB Keyboard Support
|
