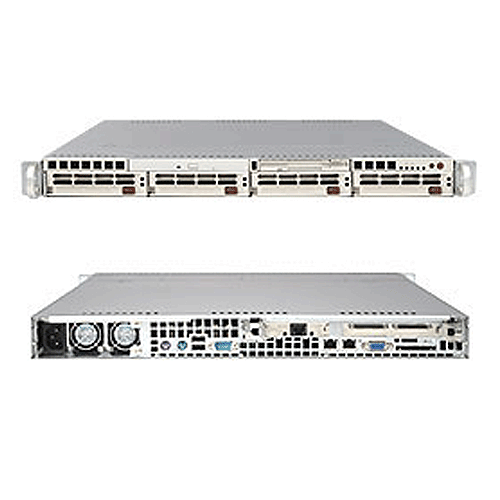

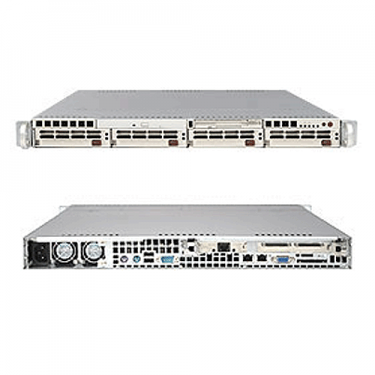

Supermicro 1U Rackmount SYS-6014H-8B

More Views

  • Supermicro 1U Rackmount SYS-6014H-8B

Supermicro 1U Rackmount Dual Core Server SYS-6014H-8B

Call for price.
SKU:SYS-6014H-8B

Quick Overview:

Key Features:
• Dual Intel® 64-bit Xeon® Support up to 3.60 GHz
• Up to 16GB DDR 333 SDRAM (or) Up to 32GB DDR 266 SDRAM
• 1 (x8) PCI-Express Expansion Slot OR 1 x 64-bit 133MHz Full-height /
   length PCI-X Slot
• 1 (x4) on a (x8) PCI-Express Slot OR 1 x 64-bit 133MHz Low-profile
   PCI-X Slot
• 2 x Intel® 82546GB Gigabit Ethernet Ports
• Zero Channel RAID Support
• 4 x 3.5" Ultra320 SCSI Hot-swap Drive Bays
• 500W Cold-swap Power Supply with I2C for Remote Management


Details

SuperServer SYS-6014H-8 / SYS-6014H-8B 1U Rackmount

Supermicro SYS-6014H-8 / SYS-6014H-8B 1U Rackmount with 500W Cold-swap Power Supply,Intel® E7520 chipset,4x 3.5" Hot-swap Ultra320/160 SCSI drive bays, using Supermicro
Super X6DHR-X8G Motherboard and SC813S-5000 Rackmount Chassis


Product SKU
SYS-6014H-8 • SuperServer 6014H-8 (Beige)
SYS-6014H-8B • SuperServer 6014H-8B (Black)
Motherboard
        Super X6DHR-8G
Processor/Cache
CPU

• Dual 604-pin FC-mPGA4 Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Xeon (Nocona) CPU with 1MB L2 Integrated Advanced Transfer Cache, up to 3.60 GHz
• Xeon (Irwindale) CPU with 2MB L2 Integrated Advanced Transfer Cache, up to 3.80 GHz
• Xeon LV (Low Voltage) CPU, up to 2.8 GHz
System Bus • 800 MHz system bus
OS Software • Supports 64-bit Operating Systems
• Supports 32-bit Operating Systems
System Memory
Memory Capacity • Eight 184-pin DIMM sockets
• Supports up to 16 GB DDR 333 MHz memory or
• Supports up to 32 GB DDR 266 MHz memory
• Dual-channel memory bus
• Memory must be populated in pairs
• Single-rank modules are recommended for 6+ DIMM support
Memory Type • DDR333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes • 256 MB, 512 MB, 1GB, 2GB, 4GB**
Memory Voltage • 2.5 V only
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 Single Device Data Correction (SDDC)
On-Board Devices
Chipset

• Intel® E7520 chipset
• MCH + ICH5R + PXH +82546GB
SCSI

• Adaptec AIC-7902 Controller
• Dual-Channel Ultra320 SCSI
• Host RAID 0, 1, 10, JBOD support
RAID

• Support for Zero-Channel RAID with Supermicro's AOC-SOZCR1 ZCR Card
• (Card not included)
IPMI • Support for Intelligent Platform Management Interface v.2.0 (Optional)
Network Controllers  • Intel® 82546GB Dual Port Gigabit Controller
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics • ATI Rage XL SVGA PCI video controller with 8 MB of video memory
Super I/O • Winbond 83627HF chip
Expansion Slots
PCI-Express /
PCI-X		 • 2 x Universal (SXB-E) slots [1 (x8) and 1 (x4) using (x8 slots)] OR [2x 64-bit PCI-X 133MHz slot]
Input/Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
Floppy • 1 Floppy controller; 1.44 MB, 2.88 MB
LAN • 2x RJ45 LAN port
USB

• 2x USB rear ports
• 2x USB internal headers
• USB 2.0 Compliant / 1.1 Compliant
VGA • 1x VGA Port
Keyboard / Mouse • PS/2 keyboard and mouse ports
Serial Port / Header

• 2 Fast UART 16550 serial ports












Chassis
Form Factor • 1U Rackmount
Model • SC813S-500
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 25.6" (650mm)
Weight • 38.5 lbs (17.5kg)
Available Color • Beige,Black
Front Panel
Buttons

• Power On/Off button
• System Reset button
LEDs • Power LED
• Hard Drive Activity LED
• 2x Network activity LEDs
• System Overheat LED
Ports • 2x USB Ports (USB 2.0 Ready)
Drive Bays
Hot-swap

• 4x 3.5" Hot-swap Ultra320/160 SCSI drive bays
Peripheral Drives
Floppy

• TEAC 3.5" 1.44MB Slim Floppy Drive
CD-ROM

• TEAC Slim 24x CD-ROM drive
SCSI Backplane


• 1x SCA813S 1U SCSI Backplane w/ SAF-TE
System Cooling
Fans • 2x 10cm blower fans
Power Supply
  Cold-swappable 500W AC power supply module w/ PFC [ 20-pin, (4-pin, 8-pin) = 12V ]
AC Voltage • 100 - 240V, 60-50Hz, 10-5 Amp
DC Output • 5V + 3.3V ≤ 160W
• 12V Total ≤ 39 Amp
+5V • 21.0 Amp
+5V stand by • 2.0 Amp
+12V1 • 15 Amp
+12V2 • 15 Amp
+12V3 • 18 Amp
-12V • 1.0 Amp
+3.3V • 21 Amp
PC Health Monitoring
CPU

• Monitors for CPU Cores, +3.3V, +5V, ±12V & +5V Standby
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN • Total of five 3-pin fan headers
• 5x fans with status monitoring
• Status monitor with firmware/software on/off control
• Fan speed control
Temperature • Monitoring for CPU, chassis, environment
• CPU thermal trip support
• Thermal Monitor 2 support
LED

• CPU Overheat LED
• System Overheat LED
Other Featue • Chassis intrusion detection
• Chassis intrusion header
• SDDC support
System Bios
Bios Type • 8Mb Flash EEPROM with Phoenix® BIOS
Bios Features

• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• Fan Speed Control
