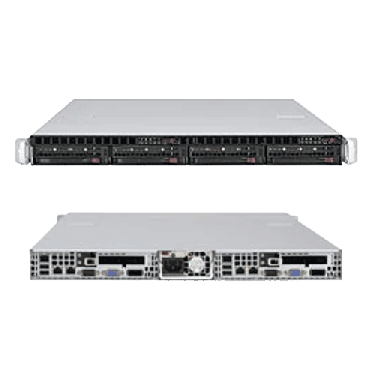

Supermicro 1U Rackmount A+ Servers AS-1022TC-TF

More Views

Supermicro 1U Rackmount A+ Servers AS-1022TC-TF

Description

Details

Supermicro 1U Rackmount A+ Servers AS-1022TC-TF

Product SKU
AS-1022TC-TF	• A+ Server 1022TC-TF (Black)

Motherboard
	• Super H8DCT-F

Processor/Cache
CPU	• Dual 1207-pin Socket C32 • Supports two 8/6/4-Core ready AMD Opteron™ 4000 Series processors • HT3.0 Link support
Chipset	• AMD SR5670 + SP5100 Chipset

System Memory (per node)
Memory Capacity	• 12 DIMM sockets • Support up to 192GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 12 DIMMs • Dual channel memory bus • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	• DDR3 1600/1333/1066 MHz Registered ECC or Unbuffered ECC/non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	• 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage	• 1.35V or 1.5V

On-Board Devices (per node)
SATA	• AMD SP5100 (RAID 0, 1)
IPMI	• Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC
Network Controllers	• Intel® 82576 controller, Dual-Port Gigabit Ethernet • 10/100/1000BASE-T support
VGA	• Matrox G200eW 16MB DDR2
Super I/O	• Winbond® W83527 chip

Input/Output (per node)
SATA	• 4x SATA (3Gb/s) ports
LAN	• 2 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI
USB	• 4x USB 2.0 ports • 2x Rear, 1x header (2 ports)
VGA	• 1x VGA port
Serial Ports	• 1x Fast UART 16550 serial port

Expansion Slots (per node)
PCI-E	• 1 Low Profile PCI-E Gen2.0 x16 expansion slot

System BIOS
BIOS Type	• 16Mb SPI Flash ROM with AMI® BIOS
BIOS Features	• Plug and Play (PnP) • DMI 2.3 • PCI 2.2 • ACPI 2.0 • USB Keyboard Support • SMBIOS 2.3

Chassis
Form Factor	• 1U Rackmount
Model	• CSE-808T-920B

Dimension and Weight
Height	• 1.7" (43mm)
Width	• 17.2" (437mm)
Depth	• 27.75" (705mm)
Gross Weight	• 39 lbs (17.7kg)
Available Colors	• Black

Front Panel
Buttons	• Buttons Power On/Off button • System Reset button
LEDs	• Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat LED

Drive Bays (per node)
Hot-swap	• Hot-swap 2x 3.5" SATA hard drive bays • Enterprise SATA HDD only recommended

System Cooling
Fans	• 6x counter-rotating PWM fans w/ Optimal Fan Speed Control

Power Supply w/Power Distributor
	920W high-efficiency (94+%) power supply with PMBus
AC Input	• 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output	• 4 Amp @ +5V standby • 75 Amp @ +12V
Certification	• Platinum Certified

PC Health Monitoring
CPU	• Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT • Monitor for HyperTransport voltage 1.2V, DDR termination 1.25V • CPU 4-phase Switching Voltage Regulator
FAN	• Total up to five 4-pin fan headers • 6 Fan Status Tachometer monitoring • Status Monitor for Speed Control
Temperature	• Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic
LED	• CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED
Other Features	• Chassis Intrusion Header • Chassis Intrusion Detection • Chipkill Support

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C to 35°C (50°F to 95°F) • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)
