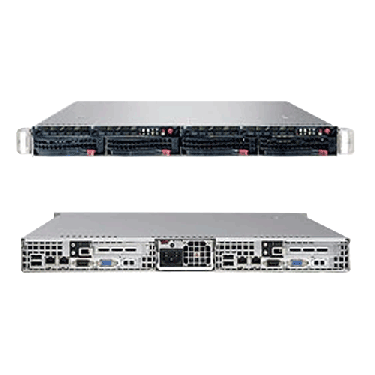

Supermicro 1U Rackmount A+ Servers AS-1021TM-T+B

More Views

  • Supermicro 1U Rackmount A+ Servers AS-1021TM-T+B

Supermicro 1U Rackmount A+ Servers AS-1021TM-T+B

Call for price.
SKU:AS-1021TM-T+B

Quick Overview:

Key Features:
• Two systems (nodes) in a 1U form factor
• Supports 2x Six-Core AMD Opteron™ 2000 processor
• nVIDIA MCP55V-Pro chipset
• Up to 128GB of memory
• Supports 2x 3.5" hot-swap SATA drive bays
• 980W High-efficiency power supply

Details

Supermicro 1U Rackmount A+ Servers AS-1021TM-T+B

Product SKU
AS-1021TM-T+B • A+ Server 1021TM-T+B (Black)
Motherboard
  • 2x H8DMT+
Processor/Cache
CPU

• Support two Six-Core AMD Opteron™ 2000 Series (Socket F) processors

 NOTE: Support processors with Max ACP ≤ 75W
Chipset • nVIDIA MCP55V-Pro chipset with up to 2.4GHz Hyper Transport Link support
System Memory (per node)
Memory Capacity • Sixteen 240-pin DIMM sockets
• Up to 128GB of Reg. ECC DDR2 memory
Memory Type

• Reg. ECC DDR2 800/667/533/400 MHz
• SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes

• 256 MB, 512 MB, 1GB, 2GB, 4GB, 8GB
Memory Voltage

• 1.8 V only
Error Detection

• Corrects single-bit errors, detects double-bit errors (using ECC)
• Supports Chipkill technology
On-Board Devices (per node)
SATA • nVIDIA MCP55V-Pro controllers RAID 0, 1 support
Network Controllers • nVIDIA MCP55V-Pro Dual-port Ethernet Controllers
VGA

• XGI Z9S 32MB PCI Graphics Controller
Expansion Slots (per node)
PCI-Express • PCI-E x16 (low-profile) slots
Input/Output (per node)
SATA • 4x Serial ATA ports
LAN • 2x RJ45 LAN ports
USB • Total of 6 USB 2.0 Compliant ports
   • 2x USB rear ports
   • 2x USB internal headers
   • 2x USB internal ports (Type A)
VGA • 1x VGA port
Serial Ports • 1x Header, 1x Port
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (704mm)
Gross Weight • 34 lbs (15.4kg)
Available Colors • Black
Front Panel
Buttons

• Buttons Two sets of independent Power switch and reset button
LEDs

• Power status LED
• Hard drive activity LED
• Two Network activity LEDs
• System Overheat LED
Chassis
Form Factor • 1U Rackmount
Model • SC808T-980
Drive Bays
Hot-swap

• Two sets (4 total) of 2x 3.5" hot-swap SATA Drive Bays
System Cooling
Fans

• Six heavy duty counter-rotating fans with optimal fan speed control and air shroud
Power Supply
  980W AC-DC power supply w/ PFC
AC Input • 100 - 240V, 60-50Hz, 14-6 Amp
+5V sb
 • 4 Amp
+12V • 81 Amp
System BIOS
BIOS Type

• 8Mb Flash EEPROM with AMI® BIOS
• SST-49LF080A BIOS Chip
BIOS Features

• Plug and Play (PnP)
• ACPI 1.0 / 2.0
• PCI 2.2
• DMI 2.3
• BIOS Rescue Hot Keys
• SMBIOS 2.3
• USB Keyboard support
Management
Software • Optional IPMI (Intelligent Platform Management Interface) 2.0
• Super Doctor III
• Watch Dog
• NMI
Power Configuration
 • ACPI Power Management
• Wake-On-LAN (WOL) header
• CPU Fan auto-off in sleep mode
• Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +3.3V, +5V, ±12V, +5V Standby, HyperTransport Link voltage, memory voltage, VBAT, Chipset voltage
• CPU switching voltage regulator

FAN • 6x fans w/ tachometer status monitoring
• Status monitor for speed on / off control
Temperature • Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal Control for 6x Fan Status
• I2C Temperature Sensing Logic
LED • CPU / System Overheat LED
Operating Environment / Compliance
RoHS

• RoHS Compliant
Environmental Spec. • Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
