Details
|
Product SKU
| |
|---|---|

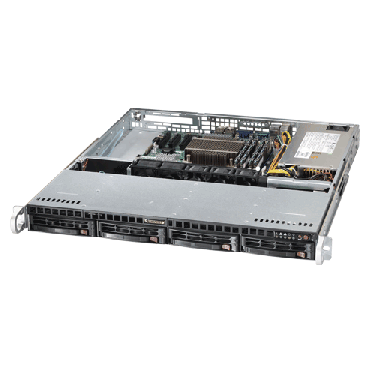

| AS-1012G-MTF | • A+ Server 1012G-MTF (Black) |
|
Motherboard
| |
|---|---|
| • Super H8SGL-F | |
| Processor/Cache
|
|
|---|---|
| CPU | • Single 1944-pin Socket G34 • Supports one 16/12/8/4-Core ready AMD Opteron™ 6000 Series processors • HT3.0 Link support |
| Chipset | • AMD chipset SR5650/SP5100 |
| Note | Supports 6000 processors with Max ACP 80W (TDP 115W) |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight DIMM sockets • Support up to 256GB Registered ECC or 64GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 8 DIMMs • Quad channel memory bus |
| Memory Type | • DDR3 1600/1333/1066 MHz Registered ECC SDRAM or Unbuffered ECC/non-ECC 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 1GB, 2GB, 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | • 1.35V or 1.5V |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SATA | • AMD SP5100 (RAID 0, 1, 10) | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Two Intel® 82574L controller, Dual-Port
Gigabit Ethernet • 10/100/1000BASE-T support |
| VGA |
• Matrox G200 16MB DDR2 |
| Super I/O | • Winbond® W83527 chip |
|
Expansion Slots
| PCI-E/PCI | • 1x PCI-E 2.0 x16 slot |
|---|
|
Input/Output
| SATA | • 4x SATA2.0 (3Gb/s) Ports | LAN | • 2 RJ45 LAN ports • 1 RJ45 Dedicated LAN supports IPMI |
|---|---|
| USB | • 8x USB 2.0 ports • 2x Rear, 4x header, and 2x TypeA |
| VGA | • 1x VGA port |
| Keyboard / Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports | • 1x Fast UART 16550 serial port • 1x serial port header |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC813MTQ-350C |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 19.8" (503mm) |
| Gross Weight | • 31 lbs (14.1kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
| Ports | • 2x Front USB Ports • 1x Serial COM Port |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 4x 3.5" Hot-swap SATA drive bays |
|
Peripheral Drives
| |
|---|---|
| DVD-ROM | • Slim DVD-ROM drive |
|
Backplane
| |
|---|---|
• 1x 1U SAS / SATA backplane |
|
|
System Cooling
| |
|---|---|
| Fans | • 4x 4cm 12,500 RPM PWM fans |
|
Power Supply
| |
|---|---|
| 350W AC power supply w/ PFC | |
| AC Voltage | • 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V |
• 18 Amp |
| +5V standby | • 3 Amp |
| +12V | • 29 Amp |
| +3.3V | • 15 Amp |
| Certification | • Gold Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to five 4-pin fan headers • 5 Fan Status Tachometer monitoring • Status Monitor for Speed Control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic |
| LED | • CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED |
| Other Features | • Chassis Intrusion Header • Chassis Intrusion Detection • Chipkill Support |
