Details
|
Product SKU
| |
|---|---|

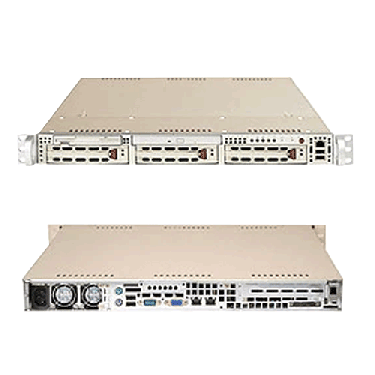

| AS-1020A-8 | • A+ Server 1020A-8 (Beige) |
| AS-1020A-8B | • A+ Server 1020A-8B (Black) |
|
Motherboard
| |
|---|---|
| • H8DAR-8 | |
| Processor/Chipset
|
|
|---|---|
| CPU | • Dual 940-pin ZIF Sockets • Supports up to two Dual-Core AMD Opteron™ 200 Series processor(s) • VRM x3 |
| Chipset | • HyperTransport Link • AMD 8131 HyperTransport PCI-X Tunnel • AMD 8111 HyperTransport I/O Hub |
|
System Memory
| |
|---|---|
| Memory Capacity | • Eight 184-pin DIMM sockets • Supports up to 16 GB DDR 400 MHz memory or • Supports up to 16 GB DDR 333 MHz memory or • Supports up to 32 GB DDR 266 MHz memory • Single or Dual(recommended) channel memory • For Single CPU: Memory must be populated in the adjacent memory bank • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | • DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs |
| DIMM Sizes | • 256 MB, 512 MB, 1GB, 2GB, 4GB** |
| Memory Voltage | • 2.5 V only |
| Error Detection | • Corrects single-bit errors |
|
On-Board Devices
| SCSI | • Adaptec AIC-7902W Controller • Dual-Channel Ultra320 SCSI with Host RAID • Host RAID 0, 1, 10 |
Zero Channel RAID | • Support for Zero-Channel RAID with AOC-SOZCR1 ZCR Card or (SO-DIMM ZCR socket) • (Card not included) |
IPMI | • Intelligent Platform Management Interface v.2.0+ • (Optional: 1UIPMI-B ) 1U Support • (Optional: 1UIPMI-B + 1UIPMI-LANG) for 3rd LAN port support with IPMI • RMM (Remote Management Module) • (Card not included) |
|---|---|
| Network Controllers | • Broadcom® 5704 Dual Port Gigabit Ethernet Controller • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
| VGA |
• ATI Rage XL 8MB PCI Graphics Controller |
|
Expansion Slots
| PCI-X | • 1 64-bit 100MHz PCI-X full-height, full-length slot |
|---|
|
Input/Output
| IDE | • Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices | Floppy | • 1 Floppy port; 1.44 MB, 2.88 MB, 3-mode support | LAN | • 2 RJ45 LAN port |
|---|---|
| USB | • FUCI • Up to 5 USB Ports 1.1 Compliant |
| Keyboard/Mouse | • PS/2 keyboard and mouse ports |
| Serial Ports |
• 2 Fast UART 16550 serial ports |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • SC812S-420C |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 16.8" (426mm) |
| Depth | • 25.6" (650mm) |
| Gross Weight | • 34 lbs (15.4kg) |
| Available Colors | • Beige, Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs | • Power LED |
| Ports |
• 2x USB Ports |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 3 x 3.5" hot-swap Ultra320/160 SCSI Drive Bays with SAF-TE |
|
Peripheral Drives
| |
|---|---|
| Floppy | • Sony 3.5" 1.44MB Slim Floppy Drive |
| CD-ROM |
• TEAC Slim 24x CD-ROM drive |
|
SCSI Backplane
| |
|---|---|
• 1x SCA812S 1U SCSI Backplane w/ SAF-TE |
|
|
System Cooling
| |
|---|---|
| Fans | • 2x 10cm blower fans |
|
Power Supply
| |
|---|---|
| Fixed 420W AC power supply with PFC | |
| AC Voltage | • 100 - 240V, 60-50Hz, 7 Amp Max |
| DC Output |
• 5V + 3.3V ≤ 160W |
| +5V | • 30.0 Amp |
| +5V standby | • 2.0 Amp |
| +12V1 | • 15.0 Amp |
| +12V2 | • 15.0 Amp |
| +12V3 | • 18.0 Amp |
| +12Vall | • 32.0 Amp Max |
| -12V | • 1.0 Amp |
| +3.3V | • 20.0 Amp |
|
System BIOS
| |
|---|---|
| BIOS Type | • 4Mb Flash EEPROM with AMI® BIOS |
| BIOS Features | • Plug and Play (PnP) • SMBIOS 2.3 • DMI 2.1 • ACPI 1.0 • Fan Speed Control |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, ±12V & +3.3V Standby, HyperTransport voltage 1.2V, memory voltage 2.5V, DDR termination 1.25V, chipset voltage 1.8V |
| FAN | • Total up to 5-fan status |
| Temperature | • Monitoring for CPU, chassis, environment |
| LED |
• Overheat LED |
| Other Features | • Chassis Intrusion Header |
