Details

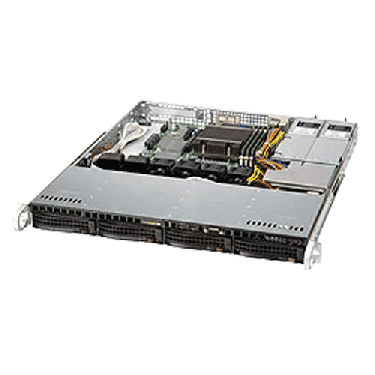

Supermicro 1U Rackmount A+ Server AS-1012A-MTF
|
Product SKU
| |
|---|---|
| AS-1012A-MTF | • A+ Server 1012A-MTF |
|
Motherboard
| |
|---|---|
| • Super H8SML-iF | |
| Processor/Cache
|
|
|---|---|
| CPU | • Single 942-pin Socket AM3+ • Supports up to Single 8/4-Core ready AMD Opteron™ 3000 Series processor • HT3.0 Link support |
| Chipset | • AMD chipset SR5650/SP5100 |
|
System Memory
| |
|---|---|
| Memory Capacity | • 4 DIMM sockets • Support up to 32GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 4 DIMMs • Single or Dual channel memory bus |
| Memory Type | • DDR3 1600/1333/1066MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | • 8GB, 4GB, 2GB, 1GB |
| Memory Voltage | • 1.35V or 1.5V |
|
On-Board Devices
| SATA | • AMD SP5100 RAID 0, 1, 10 | IPMI | • Support for Intelligent Platform Management Interface v.2.0 • IPMI 2.0 with virtual media over LAN and KVM over LAN support • Winbond® WPCM450 BMC |
|---|---|
| Network Controllers | • Intel 82574L single-port Gigabit Ethernet, 10/100/1000Base-T support |
| VGA | • Matrox G200eW 16MB DDR2 graphics |
| SUper I/O |
• Winbond® W83527HG chip |
|
Expansion Slots
| PCI-E/PCI | • 1 PCI-E 2.0 x4 (in x8 slot) |
|---|
|
Input/Output
| SATA | • 6x SATA2.0 (3Gb/s) Ports |
|---|---|
| USB | • 7x USB 2.0 ports (2x rear / 2x header - 4 ports / 1x type A) |
| VGA | • 1x VGA port |
| Serial Ports | • 2 Fast UART 16550 serial ports • 1 header & 1 port |
| IPMI | • 1x dedicated IPMI LAN port |
|
System BIOS
| |
|---|---|
| BIOS Type | • 16Mb SPI Flash ROM with AMI® BIOS |
| BIOS Features |
• Plug and Play (PnP) |
|
Chassis
| |
|---|---|
| Form Factor | • 1U Rackmount |
| Model | • 813MT-350CB |
|
Dimension and Weight
| |
|---|---|
| Height | • 1.7" (43mm) |
| Width | • 17.2" (437mm) |
| Depth | • 19.85" (503 mm) |
| Gross Weight | • 41 lbs(18.59kg) |
| Available Colors | • Black |
|
Front Panel
| |
|---|---|
| Buttons | • Power On/Off button |
| LEDs |
• Power LED |
|
Drive Bays
| |
|---|---|
| Hot-swap | • 4 hot-swap 3.5?SATA drive bays |
|
System Cooling
| |
|---|---|
| Fans | • 4x 4cm heavy duty counter-rotating fans |
|
Power Supply
| |
|---|---|
| 350W AC power supply w/ PFC | |
| AC Voltage | • 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V |
• 18 Amp |
| +5V standby | • 3 Amp |
| +12V | • 29 Amp |
| +3.3V | • 15 Amp |
| Certification | • Gold Certified |
|
PC Health Monitoring
| |
|---|---|
| CPU | • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT |
| FAN | • Total up to four 4-pin fan headers • 4 Fan Status Tachometer monitoring • Status Monitor for Speed Control |
| Temperature | • Monitoring for CPU and chassis environment • CPU Thermal Trip support • I2C temperature sensing logic |
| LED | • CPU / Overheat LED • Suspend-state indicator LED • +5V Standby Alert LED |
| Other Features |
• Chassis Intrusion Header • Chassis Intrusion Detection • Chipkill Support |
