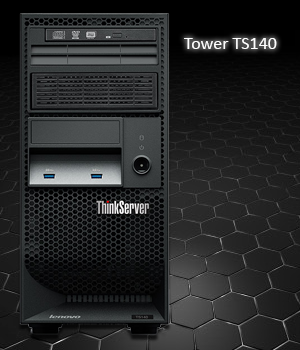

Lenovo Tower TS140

Compact & Versatile Platforms.


In addition to being affordable, the TS140 is upgradeable. You can add up to 16TB of storage, up to 32GB of memory, and have 4 PCI/ PCIe slots so you can grow the TS140 as your needs dictate.

• 4U Tower Server
• Up to 1 Intel® Xeon® E3-1200 v3 Series, Core™ i3 Series
• Up to 32GB
• 1 x Integrated Gb Ethernet

Lenovo's TS140 offers simple tools for deployment, monitoring and ongoing management. Intel Xeon processor-based models include Intel Advanced Management Technology (AMT) 9.0 so you can access and manage your server from a remote location.



Configuration / Model ThinkServer TS140 Tower Server
Processor Intel Xeon E3-1225 v3 Processor (8MB Cache, 3.20GHz)
Operating System None
Video Adapter Integrated Adapter
1st Memory DIMM 4GB DDR3L-1600MHz (1Rx8) ECC UDIMM
1st Optical Device ThinkServer 16x/48x DVD ROM
Warranty 1 Year On-site

ThinkServer TS140 | Features

Enterprise-Class

The ThinkServer TS140 is a true server with enterprise-class Intel® Xeon® E3-1200 v3 series processors — providing a 15-percent performance increase over our previous-generation towers so you have the power you need to run your business effectively. And because we know you need to be able to count on the TS140, it includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5 to safeguard your data.


Easy to Own

What do we mean when we say easy to own? In addition to being affordable, the TS140 is upgradeable. You can add up to 16TB of storage, up to 32GB of memory, and have 4 PCI/PCIe slots so you can grow the TS140 as your needs dictate. We also mean the TS140 is easy to manage. It offers simple tools for deployment, monitoring, and ongoing management. For example, the TS140 comes standard with the latest Intel Advanced Management Technology (AMT) 9.0 so, for many models, you can access and manage your server from a remote location.


Whisper-Quiet

At 26 decibels, the acoustics of the TS140 are 40 percent quieter than its predecessor and impressively quiet for any server. That's less noise than you'll find in a typical library. Plus, it's ENERGY STAR-certified, so it's easy on the environment and easy on your power bills.

ThinkServer TS140 | Tech Specs

Description THINKSERVER TS140 TOWER SERVER
Processor 1 Intel Xeon E3-1200 v3 Series or Intel Core™ i3 Series
Operating Systems Supported • Microsoft Windows Server 2012 R2
• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 R2
• Microsoft Windows Small Business Server 2011
• Microsoft Windows 7
• Microsoft Windows Multipoint Server
• VMware ESXi 5.5
Form Factor/Height 4U Tower
Memory Up to 32GB PC3-12800E 1600 MHz DDR3 ECC via 4 slots (UDIMM)
Media Bays Up to 2 x 5.25"
Disk Bays Up to 4 x 3.5" Fixed or up to 4 x 2.5" Fixed
Maximum Internal Storage Up to 16TB SATA 3.5" chassis or up to 4TB SATA 2.5" chassis
Raid Support Integrated ThinkServer RAID 100 (0/1/10/5)
Power Supply 1 Fixed – 450W, 1 Fixed – 280W optional
Network Interface 1 x Integrated Gb Ethernet
Expansion Slots • 1 x PCIe GEN3: HH/FL x16 mechanical, x16 electrical
• 1 x PCIe GEN2: HH/HL x1 mechanical, x1 electrical
• 1 x PCIe GEN2: HH/HL x16 mechanical, x4 electrical
• 1 x PCI 32-bit/33 MHz: FH/HL
Diagnostics Intelligent Diagnostics Panel
System Management • Intel Advanced Management Technology 9.0 (Xeon models)
• Intel Standard Manageability (Core i3 models)
Dimensions (W x H x D) (174.75 mm x 374.90 mm x 430.78 mm) or (6.88" x 14.76" x 16.96")
Weight Starting at (28.0 kg) or (61.8 lbs)
