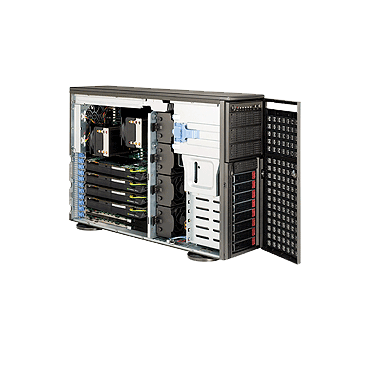

  • Supermicro SYS-7046GT-TRF-FC405 Rackmountable/Tower

Supermicro SYS-7046GT-TRF-FC405 Rackmountable/Tower

Call for price.
SKU:SYS-7046GT-TRF-FC405

Quick Overview:

Key Features:
• Supports up to 4 Double-Width GPU
• Intel® Xeon® processor 5600/5500 series, with QPI up to 6.4 GT/s
• Up to 192GB DDR3 1333/ 1066/ 800MHz ECC Registered DIMM
   / 48GB Unbuffered DIMM
• 4 (x16) PCI-E 2.0, 2 (x4) PCI-E 2.0 (in x16 slots), 1 (x4) PCI-E
   (in x8 slot), 2x PCI 33MHz slots
• Intel® Dual 82574L Gigabit Ethernet
• 8 x 3.5" Hot-swap Drives Trays Supports up to 6 SATA Drives
• 1400W Gold Level Redundant Power Supply
• Tower or Rackmount
• 4x Nvidia Fermi C2050 GPU Cards


Details

Superworkstation SYS-7046GT-TRF-FC405 Rackmountable/Tower

Supermicro 7046GT-TRF-FC405 4U Rackmountable/Tower with 1400W Redundant Power Supplies Gold Certified, Dual Intel® 5520 (Tylersburg) chipset support 8x 3.5" Hot-swap
SAS/SATA Drive Bays and up to 6 SATA Drives using Supermicro Super X8DTG-QF Server Motherboard and CSE-747TQ-R1400B 4U Rackmountable Tower Chassis.
Product SKU
• SuperServer 7046GT-TRF-FC405 (Black)
Motherboard
        Super X8DTG-QF
Processor/Cache
CPU • Dual 1366-pin LGA Sockets
• Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
• Intel® Xeon®Processor 5600 Series (Westmere)
• Intel® Xeon®Processor 5500 Series (Nehalem-EP)
QPI • up to 6.4 GT/s
GPU • 4x Nvidia Fermi C2050 GPU Cards
System Memory
Memory Capacity • 12x 240-pin DIMM slots
• Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
• Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
• Memory Mirroring supported
Memory Type

• 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 1GB, 2GB, 4GB , 8GB , 16GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
• Supports Intel® x4 and x8 Single Device Data Correction (SDDC)
On-Board Devices
Chipset • Dual Intel® 5520 (Tylersburg) chipset
• ICH10R
SATA • Intel ICH10R SATA 3.0Gbps Controller
• RAID 0, 1, 5, 10 support
Network Controller

• Intel® Dual 82574L Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphic • Matrox G200eW
Super I/O • Winbond 83827HF chip
Expansion Slot
PCI-Express • 4 (x16) PCI-E 2.0 slots
• 2 (x4) PCI-E 2.0 (in x16 slots)
• 1 (x4) PCI-E (in x8 slot)
Input/Output
Serial ATA

• Six Serial ATA ports
• Six SATA hard drives supported

LAN

• 2x RJ45 LAN ports

USB

• 4x USB rear ports
• 2x USB on-board
• 1x USB internal header - 2 ports
• Total 8 USB 2.0 Compliant

VGA

• 1x VGA port

Keyboard/Mouse

• PS/2 keyboard and mouse ports

Serial Port/Header

• 1 Fast UART 16550 serial port
• 1 Fast UART 16550 serial header (Option)





















Chassis
Form Factor • 4U Rackmountable / Tower
• Optional Rackmount Kit
Model CSE-747TQ-R1400B
Dimension and Weight
Height • 17.8" (452mm)
Width • 7" (178mm)
Depth • 26.5" (673mm)
Gross Weight • 72 lbs (32.7kg)
Available Color • Black
Front Panel
Buttons

• LED Power On/Off button
• System Reset button

LEDs • Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power Fail LED
Ports • 2x Front side USB Ports
Drive Bays
Hot-swap

• 8x 3.5" Hot-swap SAS/SATA Drive Bays
• Supports up to 6 SATA Drives

Peripheral Bay(s) • 3x 5.25" drive bays in storage module - rotates 90° for Rackmount
• 1x 3.5" fixed drive bay
SAS/SATA Backplane


• SAS / SATA Hard Drive Backplane with SES2

System Cooling
Fans

• 4x 5000 RPM Hot-swap Cooling Fans
• 2x 5000 RPM Hot-swap Rear Exhaust Fan

Power Supply
  1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
• 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output • 1100W: +12V/92A; +5Vsb/4A
• 1400W: +12V/116A; +5Vsb/4A
With Distributor • +5V: 30 Amp
• +3.3V: 24 Amp
• -12V: 0.6 Amp
Certification • Gold Certified
PC Health Monitoring
CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator

FAN • Total of eight fan headers supporting up to 8 fans
• Eight 4-pin fan headers
• 8x fans with tachometer status monitoring
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control (4-pin fan only)
Temperature • Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
