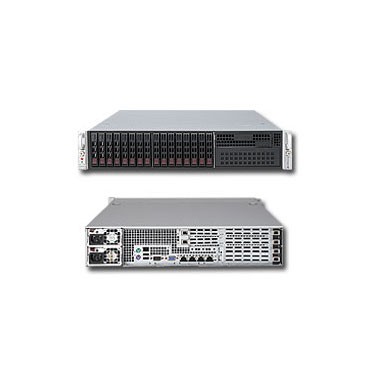

Hot-swap drive bays using Supermicro Super X8DTU-LN4F+ Motherboard and CSE-219A-R920UB 2U Chassis.
Product SKU |
|
---|---|
SYS-2026T-URF4+ | • SuperServer 2026T-URF4+ (Black) |
Motherboard |
|
---|---|
Super X8DTU-LN4F+ |
Processor/Cache |
|
---|---|
CPU | • Dual 1366-pin LGA Sockets |
QPI | • up to 6.4 GT/s |
System Memory |
|
---|---|
Memory Capacity |
• 18x 240-pin DIMM slots • Supports up to 288GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory • Supports up to 48GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory • Memory Mirroring supported |
Memory Type | • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated LRDIMMs |
DIMM Sizes | • 1GB, 2GB, 4GB , 8GB , 16GB |
Memory Voltage | • 1.5 V / 1.35 V |
Error Detection | • Corrects single-bit errors • Detects double-bit errors (using ECC memory) • Supports Intel® x4 and x8 Single Device Data Correction (SDDC) |
On-Board Devices |
|
---|---|
Chipset | • Intel® 5520 (Tylersburg) chipset • ICH10R |
SATA | • Intel ICH10R SATA 3.0Gbps Controller • RAID 0, 1, 5, 10 support |
IPMI | • Support for Intelligent Platform Management Interface v.2.0 |
Network Controllers | • 2x Intel® 82576 Dual-Port Gigabit Ethernet Controllers (4 ports) |
Graphics | • Matrox G200eW |
Super I/O | • Winbond 83827HF chip |
Expansion Slots |
|
---|---|
Left Slot | • 1 Unversal I/O (UIO) Slot |
Right Slot | • 2 (x4) PCI-E 2.0 slots |
Input/Output |
|
---|---|
Serial ATA | • Six Serial ATA ports • Six SATA hard drives supported |
LAN |
• 4x RJ45 LAN ports • 1x RJ45 Dedicated IPMI LAN port |
USB | • 2x USB rear ports • 1x USB on-board • 5x USB internal headers • Total 8 USB 2.0 Compliant |
VGA | • 1 VGA port |
Keyboard / Mouse | • PS/2 keyboard and mouse ports |
Serial Port / Header | • 1 Fast UART 16550 serial port |
Chassis |
|
---|---|
Form Factor | • 2U Rackmount |
Model | • CSE-219A-R920UB |
Dimension and Weight |
|
---|---|
Height | • 3.5" (89mm) |
Width | • 17.25" (438mm) |
Depth | • 27.75" (705mm) |
Weight | • 55 lbs (24.9kg) |
Available Color | • Black |
Front Panel |
|
---|---|
Buttons |
• Power On/Off button • System Reset button |
LED | • Power LED • Hard drive activity LED • 2x Network activity LEDs • System Overheat / Fan Fail LED • Power fail LED |
Ports | • 2x USB Ports |
Drive Bays |
|
---|---|
Hot-Swaps | • 16x 2.5" SAS / SATA Hot-swap drive trays |
Peripheral Drives |
|
---|---|
DVD-ROM | • Slim 8x DVD, 24x CD, DVD-ROM drive |
SAS / SATA Backplane |
|
---|---|
• 1x 2U SAS / SATA backplane |
System Cooling |
|
---|---|
Fans | • 4x 80mm 6300 RPM fans |
Shroud | • 1x Air Shroud |
Power Supply with Power Distributor |
|
---|---|
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
AC Input | • 100-240 V, 50-60 Hz, 11-4.5 Amp |
DC Output | • 4 Amp @ +5V standby • 75 Amp @ +12V |
Certification | • Platinum Certified |
PC Health Monitoring |
|
---|---|
CPU | • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. • 6-Phase-switching voltage regulator |
FAN | • Total of eight fan headers supporting up to 8 fans • Eight 4-pin fan headers • 8x fans with tachometer status monitoring • Support 3-pin fans (w/o speed control) • Low noise fan speed control |
Temperature | • Monitoring for CPU and chassis environment • Thermal Control for 8x fan connectors • PECI |
Other Features | • Chassis intrusion detection • Chassis intrusion header |
Operating Environment / Compliance |
|
---|---|
RoHS | • RoHS Compliant |
Environmental Spec. | • Operating Temperature:
5°C to 35°C (41°F to 95°F)
|
