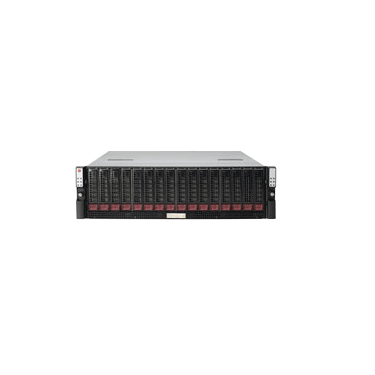

Supermicro SYS-937R-E2JB 3U SuperServer Rackmount

Call for price.

SKU:SYS-937R-E2JB

Quick Overview:

Key Features:
Two hot-pluggable systems (nodes) in a 3U form factor.
• Modular Design: Redundant Hot-swap SAS2 expander
   modules, support dual paths to all drives in the system,
   and provide rapid field replacement
• Dual SAS2 ports per IOM (one-in one-out) x4 SAS
   connectivity offers up to 24Gb/s bandwidth
• 16x Hot-swap 3.5" SAS2 drive bays, support SAS as
   well as SATA with Interposer card (simultaneously)
• 720W Redundant Power Supplies Gold Level Certified

Description

Details

Supermicro SuperServer SYS-937R-E2JB

Supermicro SYS-937R-E2JB SuperServer with 16x Hot-swap 3.5" SAS2 drive bays, support SAS as well as SATA with Interposer card (simultaneously). 720W Redundant Power Supplies Gold Level Certified

Product SKU
SYS-937R-E2JB	• SuperServer 937R-E2JB (Black)

Motherboard
	2x Super BMB-937-JB

Dimension
Width	• 17.2" (437mm)
Height	• 5.2" (132mm)
Depth	• 25.5" (648mm)
Weight (Gross)	• 75 lbs (34.02 kg)
Available Colors	• Black

Drive Bays
Hot-Swaps	• 16x Hot-swap 3.5" Drive Bays • SAS or enterprise SATA HDD only recommended • SATA drives require interposer cards (optional)

Backplane
	SAS2 dual Expander Backplane, features:
	• Scalability through cascading • 6Gb SAS2/SATA2 HDD support • Inband SES-2 Enclosure Management • Redundancy dual ported SAS architecture • Robust AirMax server node connections (SBB specification)

Front Panel
Buttons	• Power On/Off button • System Reset button • Alarm Mute Switch
LEDs	• Power LED • Hard Drive Activity LED • 2x Network Activity LED • System Overheat LED • Power Fail LED

Chassis
Form Factor	• 3U Rackmount
Model	• CSE-937ETS-R1200NDBP

Power Supply with Power Distributor
	• 720W (1+1) Redundant high-efficiency power supply with PMBus
AC Input	• 100-240 V, 50-60 Hz, 4-9 Amp
DC Output	• 3 Amp @ +5V standby • 59 Amp @ +12V
Certification	• Gold Certified

Operating Environment / Compliance
RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°to 35°C (50°to 95°F) • Non-operating Temperature: -40°to 70°C (-40°to 158°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5 to 95% (non-condensing)

Operating Environment / Compliance

RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
