OPEN NETWORKING

Open Networking Solution are based on open standard, bare-metal hardware with a choice of independent open software for NOS (Network Operating Systems), SDN, virtualization, and cloud orchestration. For years, hyper-scale data center operators have been enjoying the benefits of Open Networking Solution: reduced network equipment expenses, automated and accelerated provisioning of network capacity and services, greater control over the development of enhanced network services, flexibility to work with best-in-class suppliers, and reduced operating expenses.

These Open Networking benefits are now available for many more networking use cases.  Public and private cloud data centers of all sizes are being deployed with network fabric built from open leaf and spine switches. Edgecore Networks offers choices of hardware to meet open network deployment, from 1G, 10G, 25G and 40G, to 100G.


• 100G : Edgecore offers high performance bare-metal data center switches for Top-of-Rack and Spine Network deployment, Flatter & scalable topologies, non-blocking fabric. Edgecore 100GbE data center switch is the industry first switch accepted by OCP

• 40G : Edgecore supplies hyperscale cloud operators with TOR and spine switches that meet the most demanding performance, scale and reliability requirements.

• 10G : Edgecore is a leader in the OCP Networking Project, with a full set of open switches based on its OCP-accepted design contributions:  a 10GbE TOR switch which was the first switch ever accepted by OCP. AS5712-54X has been recognized as the 20 Best Products of 2015 by Network World.

• 1G : The AS4600 series is ideal as a data center top-of-rack switch or IPMI (Intelligent Platform Management Interface) switch. PoE functionality, all ports on PoE SKUs simultaneously support 802.3af/at.



  Part Number Series Embedded CPU Interface Ports Uplink Ports Stacking Ports POE Software Supported

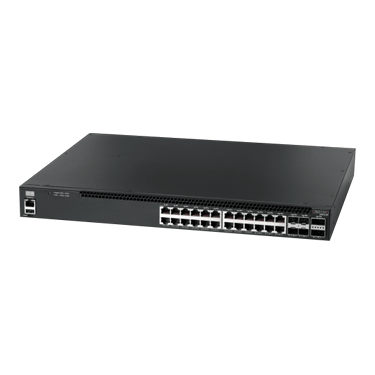

Edge-Core AS4610-30T AS4610-30T AS4610 - 24x 10/100/1000 ports RJ-45
4x 10G SFP+ 2x 20G QSFP+ - -

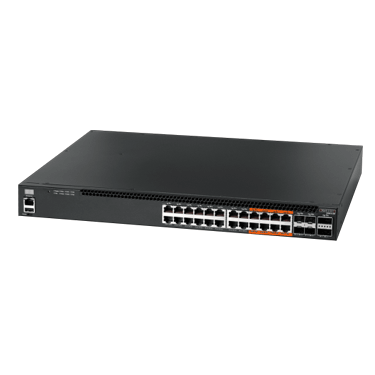

Edge-Core AS4610-30P AS4610-30P AS4610 - 24x 10/100/1000 ports RJ-45 4x 10G SFP+ 2x 20G QSFP+ 24 -

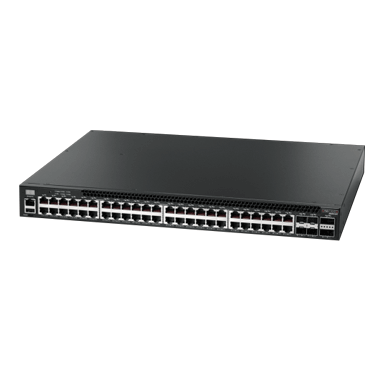

Edge-Core AS4610-54T AS4610-54T AS4610 - 48x 10/100/1000 ports RJ-45 4x 10G SFP+ 2x 20G QSFP+ -
Linux 2.5.4-3.4

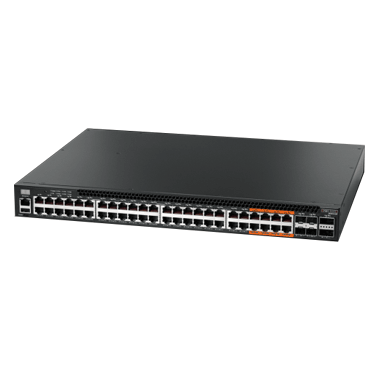

Edge-Core AS4610-54P AS4610-54P AS4610 - 48x 10/100/1000 ports RJ-45 4x 10G SFP+ 2x 20G QSFP+ 48
Linux 2.5.4 - 3.4

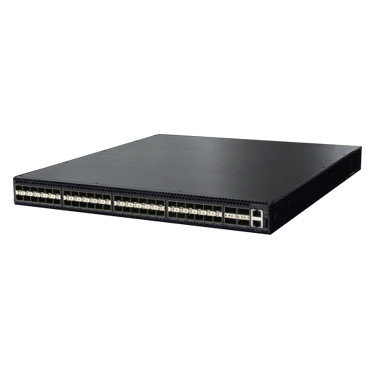

Edge-Core AS5610-52X AS5610-52X AS5610 - 48x SFP+ 10GbE, 4x QSFP+ 40GbE  - - -
Linux 2.0.1 - 2.5.x

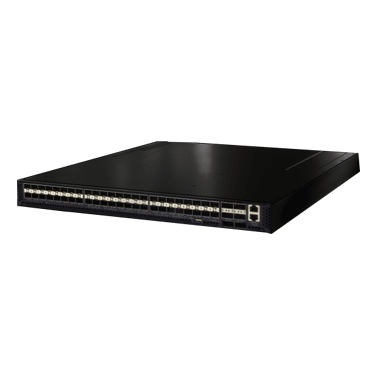

Edge-Core AS5710-54X AS5710-54X AS5710 Freescale P2041 48x SFP+ 10GbE 4x QSFP+ 40GbE - - -

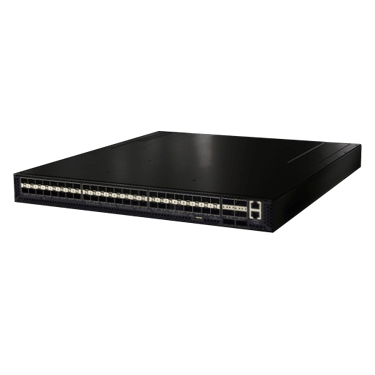

Edge-Core AS5712-54X AS5712-54X AS5712 Atom C2538 48x SFP+ 10GbE 4x QSFP+ 40GbE - -
Linux 2.5.1 - 3.4
Edge-Core AS5812-54T AS5812-54T AS5812 Atom C2538 48x 10/100/1000 ports RJ-45
6x QSFP+ 40GbE
- - -
Linux 3.0 - 3.4

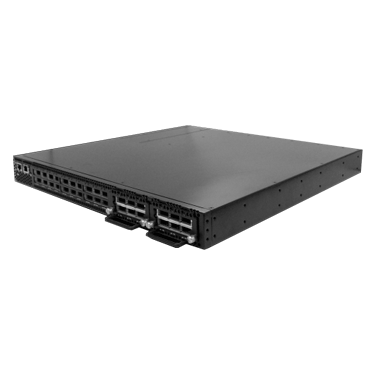

Edge-Core AS6700-32X AS6700-32X AS6700 P2041 20x QSFP 40GbE,
2x expansion modules
- - - -

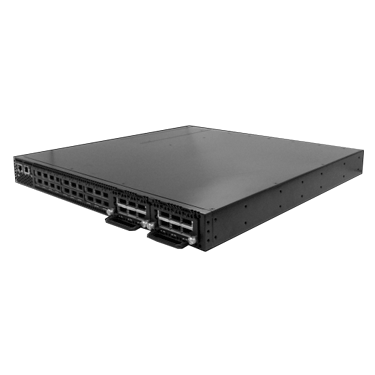

Edge-Core AS6701-32X AS6701-32X AS6701 P2020 20x QSFP 40GbE,
2x expansion modules
- - -
Linux 2.0.1 - 2.5.x

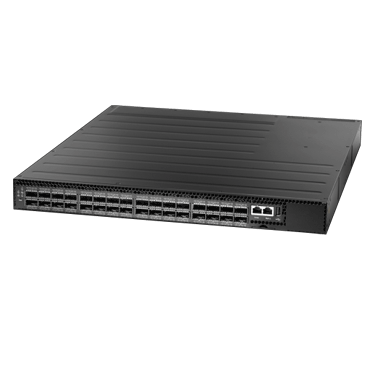

Edge-Core AS6712-32X AS6712-32X AS6712 Atom C2538 32x QSFP+ 40GbE - - -
Linux 2.5.3 - 3.4

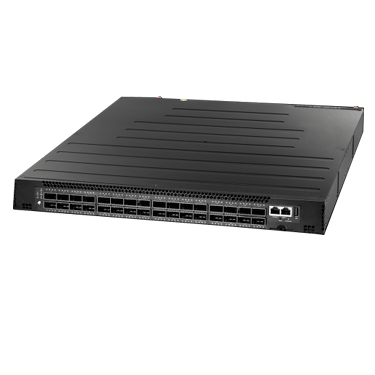

Edge-Core AS7712-32X AS7712-32X AS7712 Atom C2538 32x QSFP+ 40GbE - - -
Linux 3.1 - 3.4
Edge-Core AS7716-32X AS7716-32X AS7716 Xeon D-1518 32x QSFP+ 40GbE - - - -

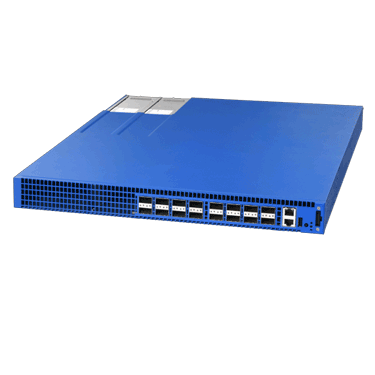

Edge-Core Wedge 16x Wedge-16X Wedge-16 - 16x QSFP - - - -
