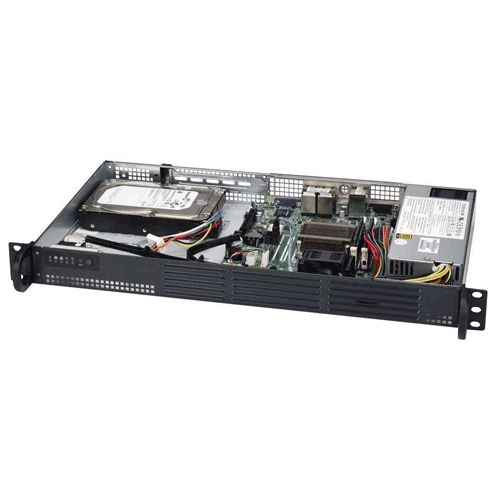

  • Supermicro  1U Rackmount SuperServer SYS-5018A-LTN4 - Angle

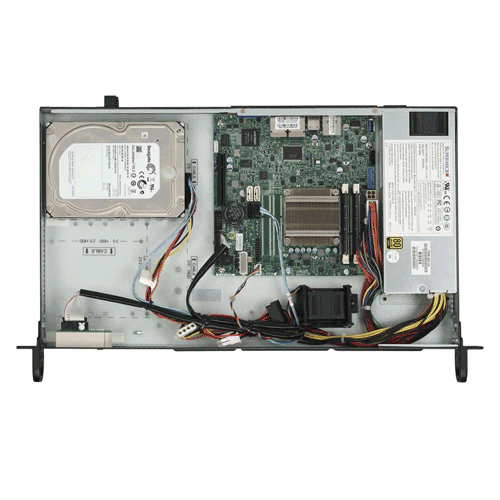

  • Supermicro  1U Rackmount SuperServer SYS-5018A-LTN4 - Top

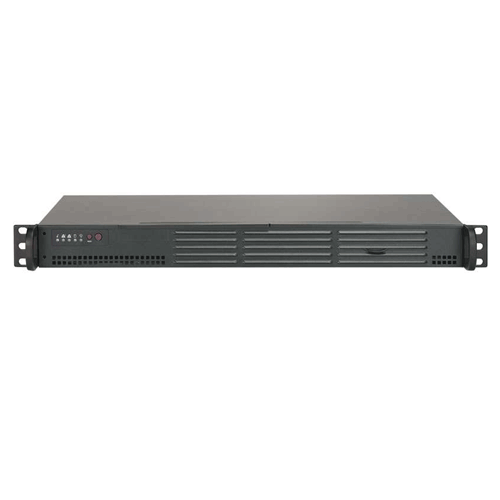

  • Supermicro  1U Rackmount SuperServer SYS-5018A-LTN4 - Front

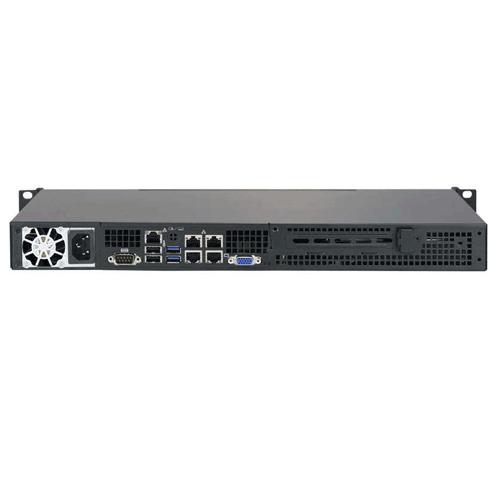

  • Supermicro  1U Rackmount SuperServer SYS-5018A-LTN4 - Rear

Supermicro SYS-5018A-LTN4 1U Rackmount

Call for price.
SKU:SYS-5018A-LTN4

Quick Overview:

Key Features:
• Intel QuickAssist Technology
• Embedded 7-Year product life
• DDR3 up to 1333MHz Up to 16GB ECC SODIMM
• Compact form factor < 10" depth
• Low Power
• Intel® Atom processor C2358, SoC, FCBGA 1283, 7W 2-Core
• Intel® System-on-Chip Design
• 4x 2.5" or 2x 3.5" Fixed drive bays
• 1x PCI-E 2.0 x8 slot
• Up to 16GB DDR3 1600MHz ECC SO-DIMM in 2 DIMM slots
• 4x GbE via Intel® C2000 SoC
• DOM power connector
• 200W Low-noise power supply w/ PFC


Details

SuperServer SYS-5018A-LTN4 1U Rackmount

Supermicro SYS-5018A-LTN4 1U Rackmount with Intel® Atom™ Processor C2358, 4x 2.5" or 2x 3.5" Fixed drive bays, using Super A1SRI-2358F and CSE-504-203B0 Rackmount
Chassis


Product SKU
• SuperServer 5018A-LTN4 (Black)
Motherboard
        Super A1SRI-2358F
Processor/Cache
CPU

• Intel® Atom™ Processor C2358
• CPU TDP 7W (2-Core)
• FCBGA 1283Transfer Cache
• System-on-Chip

System Memory
Memory Capacity • 2x 204-pin DDR3 SO-DIMM slot
• Supports up to 16GB DDR3 ECC Un-Buffered memory
Memory Type • D1333MHz ECC DDR3 SDRAM, 204-pin gold-plated DIMMs
• Some 1600MHz memory can be used, but will operate at 1333MHz
DIMM Sizes • 8GB, 4GB, 2GB
Memory Voltage • 1.5 V, 1.35 V
On-Board Devices
SATA • SoC SATA3 (6Gbps), SATA2 (3Gbps)
Network Controllers  • C2000 SoC I354 Quad GbE Controller (MACs)
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Aspeed AST 2400 BMC
USB 3.0 • Renesas uPD720201
Video • BMC integrated Aspeed AST2400
Input/Output
SATA • 2x SATA3 (6Gbps) ports
• 2x SATA2 (3Gbps) ports
LAN • 4x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 4x USB 3.0 ports (2 rear, 1 Type A, 1 via header)
• 2x USB 2.0 ports (2 rear)
Serial Port

• 2x Fast UART 16550 Serial Port (1 rear, 1 via header)

DOM

• 1x SATA DOM (Disk on Module) power connector

VGA

• 1x VGA Port

Others

• TPM 1.2 header





















Chassis
Form Factor • 1U Rackmount
Model CSE-504-203B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 9.8" (249mm)
Weight • 10 lbs (4.5 kg)
Available Color • Black, Beige
Front Panel
Buttons

• Power On/Off button
• System Reset button

LEDs • Power Status LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Information LED (temp., status)
Expansion Slot
PCI-Express

• 1x PCI-E 2.0 x8 slot

Drive Bays
HDD

• 4x 2.5" or 2x 3.5" Fixed drive bays

System Cooling
Fans • 1x High-efficiency power supply with thermal control fan
Power Supply
  200W Low Noise AC-DC power supply with PFC
AC Voltage • 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V • 8.0 Amp (max.)
+5V stand by • 2.0 Amp (max.)
+12V • 16 Amp (max.)
-12V • 0.5 Amp (max.)
+3.3V • 8.0 Amp (max.)
Certification • Gold Certified
System Bios
Bios Type • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
Bios Features • Plug and Play (PnP)
• DMI 2.3
• ACPI 5.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI
Operating Environment
Environmental Specs

• Operating Temperature: 10° to 35° C (50° to 95°F)
• Non-operating Temperature: -40° to 70° C (-40° to 158° F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)
