Supermicro 1U Twin Rackmount SuperServer SYS-5016Ti-TF

Call for price.
SKU:SYS-5016Ti-TF

Quick Overview:

Key Features:
Two systems (nodes) in a 1U form factor. Each node supports the following: • Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & v2 series,  2nd Gen Core i3 processors*
• Intel® Xeon® X3400 / L3400 series, Core™ i3 & Pentium® processors
   with LGA 1156 socket
• Up to 32GB DDR3 1333/1066/800MHz ECC Registered DIMM or
  16GB Unbuffered DIMM
• 1 (x16) PCI-E 2.0 (Low Profile)
• Integrated IPMI 2.0 with KVM and Dedicated LAN
• Dual Intel® 82574L Gigabit Ethernet Controllers
• 2x Hot-swap SATA Drive Bays
• 920W Platinum-Level High-efficiency Power Supply


Details

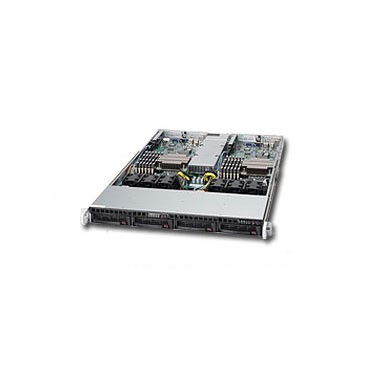

SuperServer SYS-5016Ti-TF 1U Rackmount

Supermicro SYS-5016Ti-TF 1U Rackmount with 920W Platinum-Level High-efficiency Power Supplies, 2x 3.5" SATA Hot-swap drive bays, using 2x Super X8SIT-F and CSE-808TQ-920B
Rackmount Chassis


Product SKU
• SuperServer 5016Ti-TF (Black)
Motherboard
        2x Super X8SIT-F
Processor/Cache
CPU

• LGA 1156 Socket
• Intel® Xeon® X3400 series
• Intel® Xeon® L3400 series
• Intel® Core™ i3
• Intel® Pentium® G6950
• Intel® Celeron® G1101

System Memory
Memory Capacity • 6x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM slots
• Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
• 1333 / 1066 / 800 MHz
• Dual Core processors of Ci3 and Pentium: support ECC UDIMM only


Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements
Note • All X3400 series and L3426 CPU support RDIMM and UDIMM
• All i3 series, L3406, G6950, and G1101 CPU support UDIMM only
Memory Type • 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes • 1GB, 2GB, 4GB, 8GB
Memory Voltage • 1.5 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset

• Intel® 3420 chipset

SATA

• 6x SATA (3 Gbps)
• RAID 0, 1 support (Windows)
• RAID 0, 1 support (Linux)

IPMI • Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC
Network Controllers  • Dual Intel® 82574L Gigabit Ethernet Controllers
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA • Matrox G200eW 16MB DDR2
Super I/O • Nuvoton W83627DHG UBE
Input/Output (per node)
Serial ATA • 6 SATA ports
• 2 SATA hard drives supported
LAN • 2x RJ45 LAN ports
• 1x RJ45 Dedicated IPMI LAN port
USB • 2x USB rear ports
• 1x USB on-board
• 2x USB internal header (4 ports)
• Total 7 USB 2.0 Compliant
VGA

• 1x VGA port

Serial Port / Header

• 1x Fast UART 16550 serial port
• 1x internal header































Chassis
Form Factor • 1U Rackmount
Model CSE-808TQ-920B
Dimension and Weight
Height • 1.7" (43mm)
Width • 17.2" (437mm)
Depth • 27.75" (705mm)
Weight • 40 lbs (18.1kg)
Available Color • Black
Front Panel (per node)
Buttons

• Power On/Off button
• System Reset button

LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Expansion Slots (per node)
PCI-Express

• 1 (x16) PCI-E 2.0 (Low Profile)

Drive Bays (per node)
Hot-swap

• 2x 3.5" SATA Hot-swap drive bays

SATA Backplane
  • 1U SATA Backplane
System Cooling
Fans • 6x Cooling Fans
Power Supply with Power Distributor
  920W high-efficiency (94+%) power supply with PMBus
AC Input • 100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output • 4 Amp @ +5V standby
• 75 Amp @ +12V
Certification • Platinum Certified
Management
Software • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor® III
• Watch Dog
• NMI
Power Configuration • ACPI Power Management
• Main Switch Override Mechansim
• Power-on mode for AC power recovery
PC Health Monitoring
CPU • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN • Total of 5 fan headers supporting up to 5 fans
• Five 4-pin fan headers
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors
Temperature • Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI
LED • CPU / System Overheat LED
• +5V Standby alert LED
Other Features • Chassis intrusion detection
• Chassis intrusion header
Operating Environment / Compliance
RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature: 10°C to 40°C (50°F to 104°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
