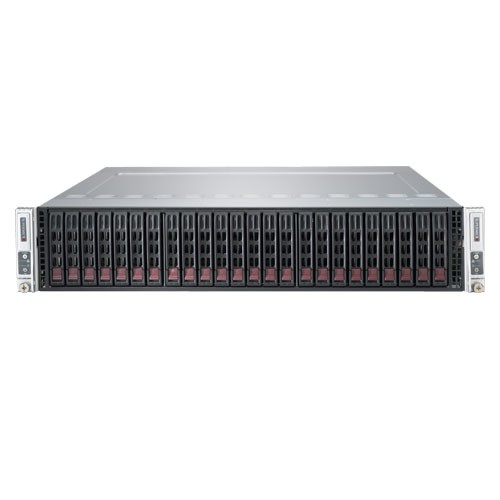

  • Supermicro 2U Twin2 MultiNode SYS-2027TR-H70QRF - Front

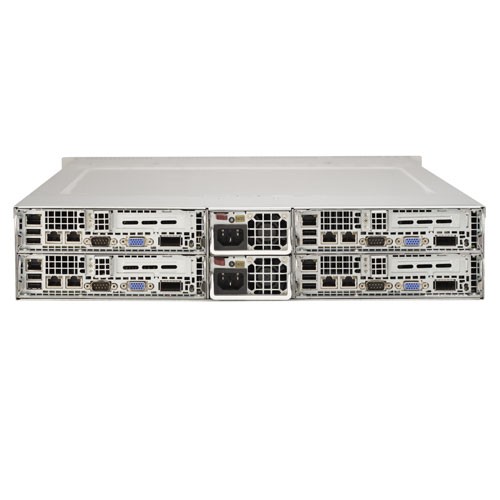

  • Supermicro 2U Twin2 MultiNode SYS-2027TR-H70QRF  -  Rear

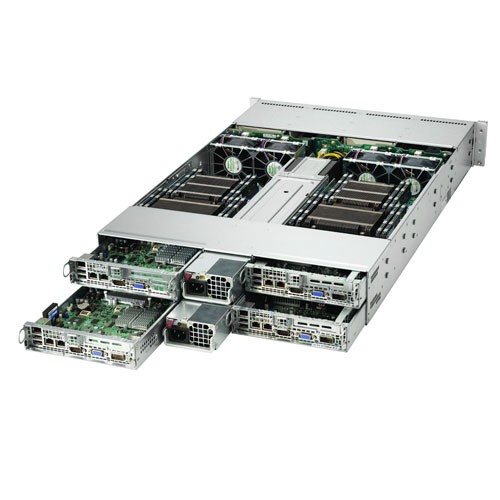

  • Supermicro 2U Twin2 MultiNode SYS-2027TR-H70QRF - Angle

Supermicro SYS-2027TR-H70QRF 2U Twin2 MultiNode

Call for price.

Quick Overview:

Key Features:
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
• Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and
   E5-2600 v2 family†
• Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots
• 1x PCI-E 3.0 (x16) low-profile slot
• Intel® i350 Dual port Gigabit Ethernet
• 6x Hot-swap 2.5" SATA/SAS HDD Bays
• Onboard Mellanox ConnectX QDR InfiniBand Controller, QSFP interface
• 1620W Redundant Power Supplies Platinum Level (94%)


Superworkstation SYS-2027TR-H70QRF

Supermicro SYS-2027TR-H70QRF 2U Rackmount Barebone with 1620W Redundant Power Supplies, Intel® C602 Chipset support 6x Hot-swap 2.5" SATA/SAS HDD Bays per node
using Supermicro Super X9DRT-HIBQF Server motherboard and CSE-217HQ-R1620B 2U Rackmount Chassis.
Product SKU
• SuperServer 2027TR-H70QRF (Black)
        Super X9DRT-HIBQF
CPU • Dual Socket R (LGA 2011)
• Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 135W TDP)
Cache • Up to 30MB
System Bus • QPI up to 8 GT/s
Note • † BIOS version 3.0 or above is required


* Please contact Will Jaya Technical Support for additional information about frequency optimized CPUs and specialized system optimization.

System Memory
Memory Capacity • 8x 240-pin DDR3 DIMM slots
• Up to 256GB DDR3 ECC Registered memory (RDIMM)
Memory Type

• 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage • 1.5 V, 1.35 V
Error Detection • Corrects single-bit errors
• Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset • Intel® C602 chipset
Infiniband • Mellanox ConnectX-3 QDR Infiniband 40Gbps Controller
SAS • LSI 2008 SAS (6Gbps)
• RAID 0, 1, 10 support
• (Optional: AOC-SAS2-RAID5-KEY) RAID 5 support
• Note: In order to support the LSI RAID Controllers, both CPU socket must be populated
SATA • SATA 2.0 & 3.0 with RAID 0, 1, 5, 10

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel® i350 Dual Port Gigabit Ethernet
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

Graphics • Matrox G200eW
Input/Output (per node)
Serial ATA

• 2x SATA 3.0 ports (6Gbps)
• 5x SATA 2.0 ports (3Gbps)


• 8x SAS ports (6Gbps)


• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port


• 3x USB 2.0 ports total (2x rear + 1x Type A)


• 1x VGA port


• 1 external QSFP Infiniband connector

Serial Port / Header

• 1x Fast UART 16550 port / 1 Header

Form Factor • 2U Rackmount
Model CSE-217HQ-R1620B
Dimension and Weight
Height • 3.47" (88mm)
Width • 17.25" (438mm)
Depth • 26.75" (679mm)
Gross Weight • 85 lbs (38.6kg)
Available Color • Black
Front Panel

• Power On/Off button
• System Reset button
• UID button

LEDs • Power status LED
• HDD activity LED
• 2x Network activity LEDs
• Universal Information (UID) LED
Expansion Slots (per node)

• 1x PCI-E 3.0 (x16) Low-profile slot

Drive Bays (per node)

• 6x Hot-swap 2.5" SATA3/SAS2 HDD trays

System Cooling

• 4x 8cm heavy duty PWM fans with optimal fan speed control

Power Supply
  1620W high-efficiency redundant power supply w/ PMBus
AC Input • 1000W Output @ 100-120V, 12-10A, 50-60Hz
• 1200W Output @ 120-140V, 12-10A, 50-60Hz
• 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output • 1000W: +12V/84A; +5Vsb/4A
• 1200W: +12V/100A; +5Vsb/4A
• 1620W: +12V/150A; +5Vsb/4A
Certification • Platinum Certified (94%)
System Bios
Bios Type

• 128Mb SPI Flash EEPROM with AMI BIOS

Bios Features • Plug and Play (PnP)
• APM 1.2
• PCI 2.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
Operating Environment / Compliance
RoHS • RoHS Compliant
Environmental Spec.

• Operating Temperature: 10°C to 35°C (50°F to 95°F)
• Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
